Description

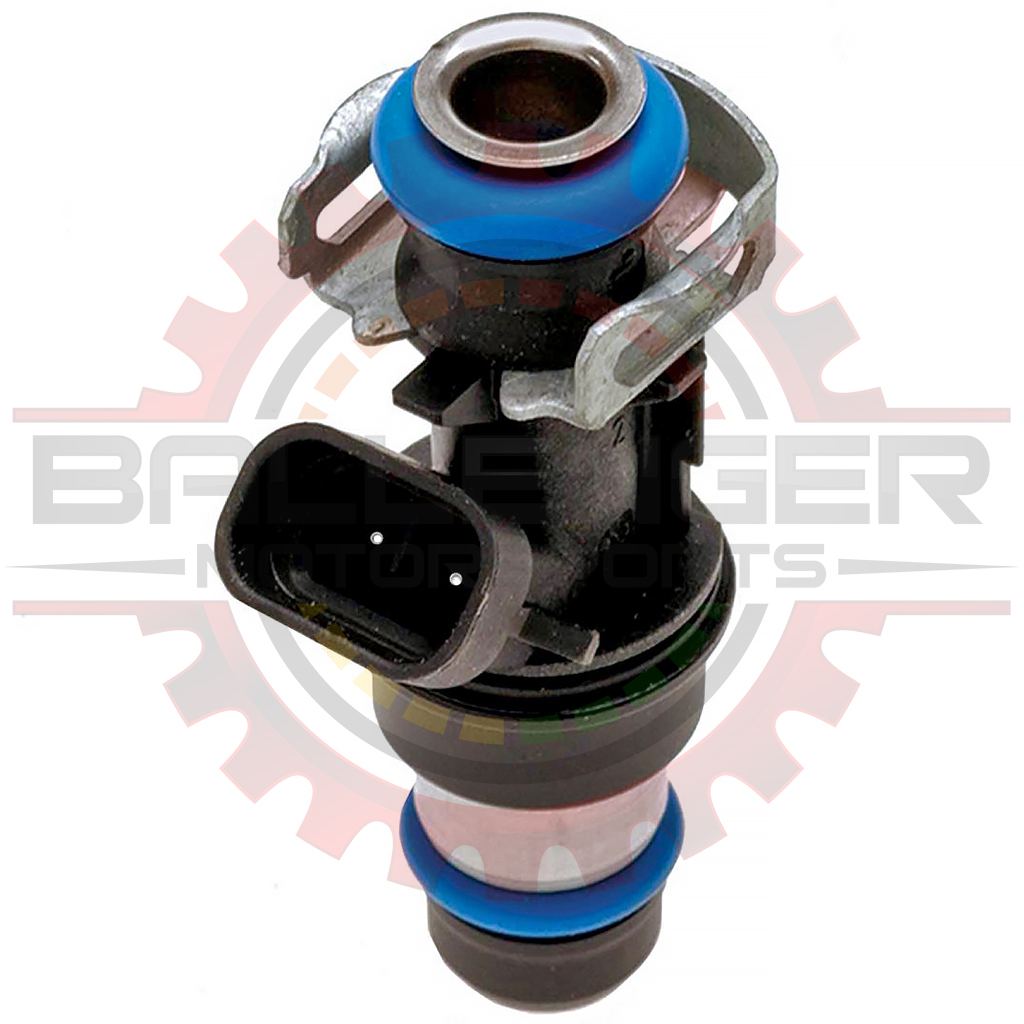

Delphi Multec 2 - 26 lb/hour, Shorty injectors for 4.8, 5.3 & 6.0 V8 applications - 17113698 - 25317628
These Genuine Delphi Multec 2 injectors are a direct replacements for many LS1 (or LS-based) GM SUVs
These injectors flow 26 lbs/hr at 60 PSI ( 4 BAR ). In addition, these units are high-impedance. These injectors are a high quality, high flow OEM injector that deliver superb atomization and low end performance. This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.
These injectors are a drop in replacement for many LS-based GM applications which allows a direct drop in when you need more fuel to support your high power modifications. The common sizing also makes them easy to use in many custom applications were a superb quality injector is needed to support additional power.
Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a multi-orifice tip providing a 30 degree spray pattern for improved mixture preparation. This results in lower BSFC and better idle quality than many injectors with less flow.
Specifications:
- Coil Resistance: 12.0 Ohms / High Impedance / High-Z (No ECM driver modifications required)
- Connector: Multec 2
- Spray Pattern: Up to 30 Degree Spray Cone
- Factory fitted with Viton upper and lower o-rings
Equivalent Part Numbers:
- GM / Delphi 17113698
- Delphi / Delphi 25317628
- SMP FJ10062
- GM / Delphi 17114502X2
- SMP FJ315
- GM / Delphi 17113553
Mating Parts
For Mating Sensor Connector Pigtail, see:
For Mating Sensor Connector Kit, see:
For Mating Connector, see:
For Mating Terminals, see:
