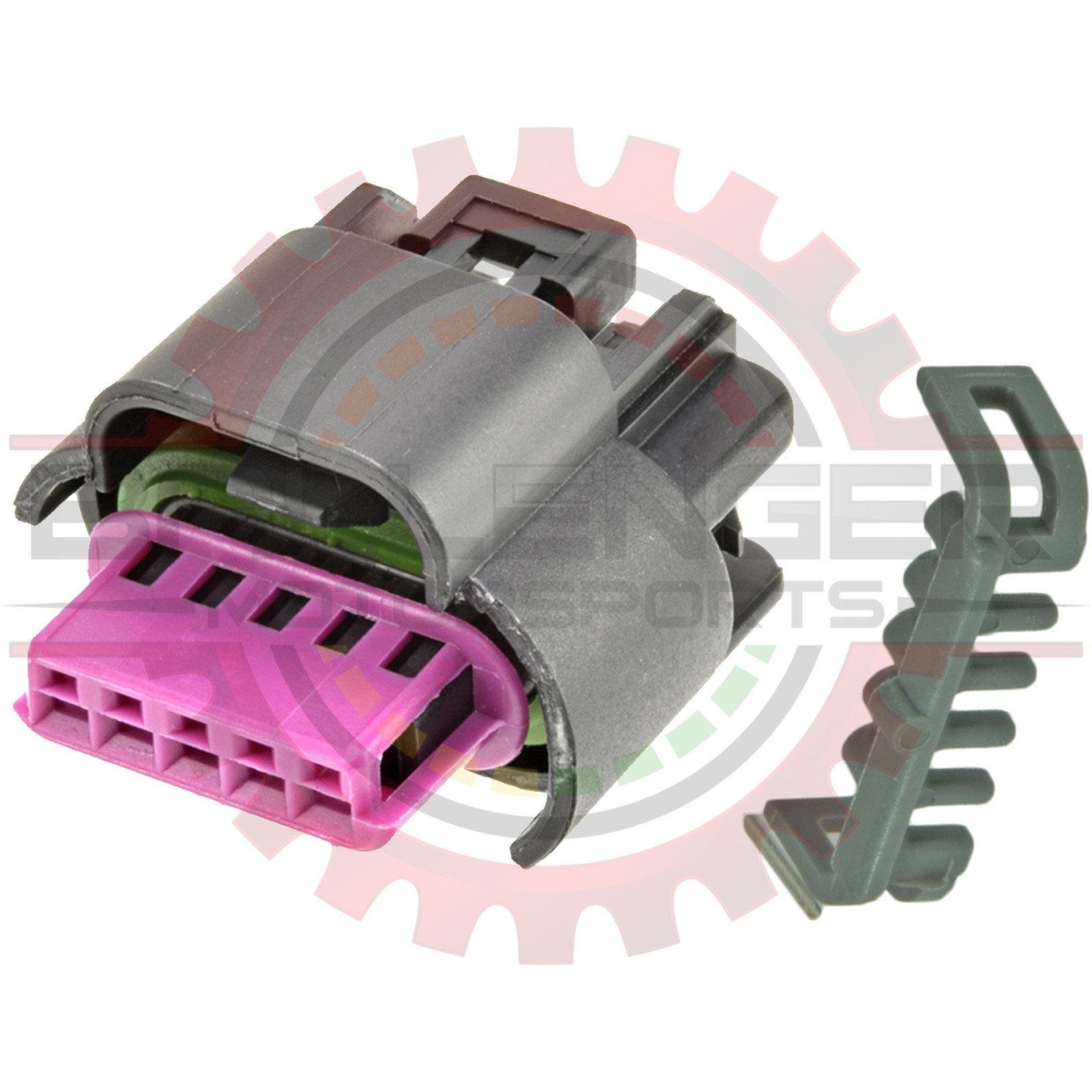

5 Way GT 150 3.5mm Centerline Connector Assembly for IGN1A	Part # CONN-51874

Pricing
1 +	$5.99
5 +	$5.79
25 +	$5.49
50 +	$5.29
Information
Bmotorsports Part #	CONN-51874
Availability	In Stock
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

5 Way GT 150 3.5mm Centerline Connector Assembly for IGN1A. Connector ONLY. Terminals not included.

This is a modified 5-Way Connector plug to fit the High Output Smart Ignition Coil IGN1A properly, this version featuring push to seat terminals!!

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals (20-16AWG)	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Wire Seals (18-16AWG)	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Only	CONN-51874	5 Way GT 150 3.5mm Centerline Connector Assembly for IGN1A
Connector Kit	CONN-76206	5 Way GT 150 3.5mm Centerline Connector Kit for IGN1A
Connector Pigtail	CONN-86206	5 Way GT 150 3.5mm Centerline Connector Pigtail for IGN1A
IGN1A Ignition Coil	IGNT-00175	IGN1A High Output Smart Ignition Coil

Applications

Applications Include:

IGN1A Ignition Coil Connector
LS1 Throttle Position Sensor
LS1 TPS Connector
LS6 Throttle Position Sensor
LS6 TPS Connector
TPS Connector on some 2002- GM Trucks
Many more applications not listed

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 16
Max. Wire Gauge 20

» 1 x Hand-modified version of 5 Way GT 150 3.5mm centerline MAF Connector, IGN1A Compatible
» Hand-modified version of 5 Way GT 150 3.5mm centerline MAF Connector, IGN1A Compatible
     2 x Labor $0.25/minute
     Labor $0.25/minute
     1 x GM Delphi / Packard - 5 way GT 150 3.5mm centerline MAF Connector
     GM Delphi / Packard - 5 way GT 150 3.5mm centerline MAF Connector

This product contains the following items:
	» 1 x GM Delphi / Packard - TPA for 5 way GT 150 3.5mm centerline MAF Connector Part # CONN-51859
