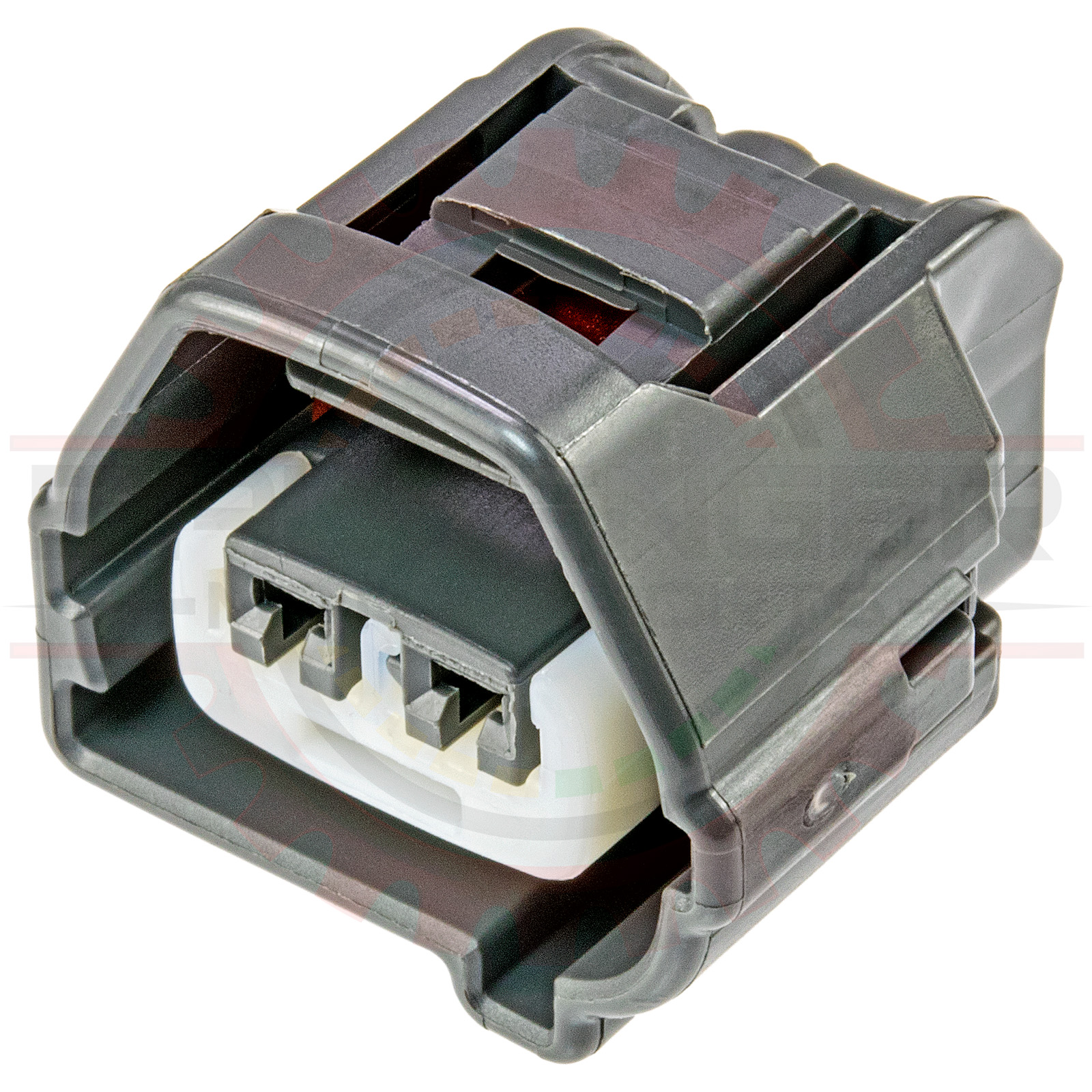

Sumitomo 2 way TS Plug Housing for Cam & Crank Sensors (Toyota # 90980-10947)	Part # CONN-100510

Pricing
1 +	$6.99
5 +	$6.75
25 +	$6.49
50 +	$6.25
100 +	$5.99
Information
Bmotorsports Part #	CONN-100510
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Sumitomo 2 way TS Plug Housing for Cam & Crank Sensors (Toyota # 90980-10947)
Toyota # 90980-10947

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Gold plated female terminals	CONN-100325	Sumitomo Part 6520-0349 For FRS GT86 or BRZ Tail Light, Toyota Oxygen Sensors
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-100510	Sumitomo 2 way TS Plug Housing for Cam & Crank Sensors (Toyota # 90980-10947)
Connector Kit	CONN-75800	Sumitomo 2 way TS Plug Housing Kit for Cam & Crank Sensors (Toyota # 90980-10947)
Connector Pigtail	CONN-85800	Sumitomo 2 way TS Plug Housing Pigtail for Cam & Crank Sensors (Toyota # 90980-10947)
Mating Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101018	Sumitomo 2 way TS 090 II Receptacle Housing for Cam & Crank Sensors (Toyota # 90980-10959)
Connector Kit	CONN-76073	Sumitomo 2 way TS 090 II Receptacle Connector Kit for Cam & Crank Sensors (Toyota # 90980-10959)
Connector Pigtail	CONN-86073	Sumitomo 2 way TS 090 II Receptacle Connector Pigtail for Cam & Crank Sensors (Toyota # 90980-10959)

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications:

2JZ & 2JZGTE Crank & Cam Sensor

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start Year End Make Model Trim Engine Code

1991 2000 Lexus LS400 * 1UZ-FE

1994 1996 Toyota Camry * 1MZ-FE

1997 2002 Toyota Camry * 1MZ-FE

2003 2006 Toyota Camry * 1MZ-FE

Used In

Part #	Description
CONN-75800	Sumitomo 2 way TS Plug Housing Kit for Cam & Crank Sensors (Toyota # 90980-10947)
CONN-85800	Sumitomo 2 way TS Plug Housing Pigtail for Cam & Crank Sensors (Toyota # 90980-10947)
