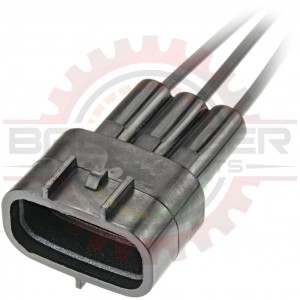

Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - Mates to 90980-10845 Part # CONN-85764
Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - Mates to 90980-10845 Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - Mates to 90980-10845 Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - Mates to 90980-10845
Pricing
1 + $10.99
25 + $9.99
100 + $8.99
1000 + $7.99
Information
Bmotorsports Part # CONN-85764
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - 90980-10845

Mate to Toyota # 90980-10845. This part is a mate to the device only connector 90980-10845. Though it does not meet oem specifications, it is a working solution to small volume production needs.

If you have large volume production needs of 10,000 units or higher, please contact us as a higher quality molded product can be used.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only CONN-100547Mate to Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - Mates to 90980-10845
Connector Kit CONN-75764Mate to Sumitomo 3 way TS Plug Housing Kit for TPS & Boost Sensors - Mates to 90980-10845
Connector Pigtail CONN-85764Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - Mates to 90980-10845
Mating Parts
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only CONN-100292Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - 90980-10845
Connector Kit CONN-75765Sumitomo 3 way TS Plug Housing Kit for TPS & Boost Sensors - 90980-10845
Connector Pigtail CONN-85765Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - 90980-10845

Applications

  • Polaris TPS Sensor Connector Mate (Device Side)
  • Motorcycle TPS Sensor Connector Mate (Device Side)on many applications
  • MAP Sensor Connector Mate (Device Side)on many applications
  • Many applications not listed here

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Make Model Engine / Trim Application
2011PolarisRanger800 TPS
2012PolarisRanger800 TPS
2013PolarisRanger800 TPS
2011PolarisRZR800 TPS
2012PolarisRZR570, 800 TPS
2013PolarisRZR800 TPS
2013PolarisRZR800 TPS
2006+PolarisSportsman ATV500 TPS


Specifications

Parameter Value
Number of Ways3
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
20AWG Automotive TXL Wire Black» 3 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
Labor $0.25/minute» 25 x Labor $0.25/minute
Part # LABR-00001
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )» 3 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Part # CONN-100069
Mate to Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - Mates to 90980-10845» 1 x Mate to Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - Mates to 90980-10845
Part # CONN-100547
