4 Way Plug Kit for Japanese sensors	Part # CONN-75802

Pricing
1 +	$8.99
50 +	$8.49
100 +	$7.99
400 +	$7.49
Information
Bmotorsports Part #	CONN-75802
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

4 Way Plug Kit for Japanese sensors

For use on Japanese applications for sensor connectors & ignition coils.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector	CONN-100587	4 Way Plug for Japanese sensors
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Terminals	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Connector Kit	CONN-75802	4 Way Plug Kit for Japanese sensors
Connector pigtail	CONN-85802	4 Way Plug Pigtail for Japanese sensors
Mating Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100937	4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle
Connector Kit	CONN-76032	4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit
Pigtail	CONN-86032	4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Pigtail
Extension	CONN-86035	4 Way Mazda Ignition Coil Connector Extension

Applications:

FD Mazda RX7 Throttle Position Sensor
3rd Gen Mazda RX7 TPS
99-00 Mazda Miata Ignition Coil Connector
1999-2000 Mazda Miata Coil Connector
TPS Connector on many Mazda Applications
Throttle Position Sensor Connector on many Mazda Applications

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

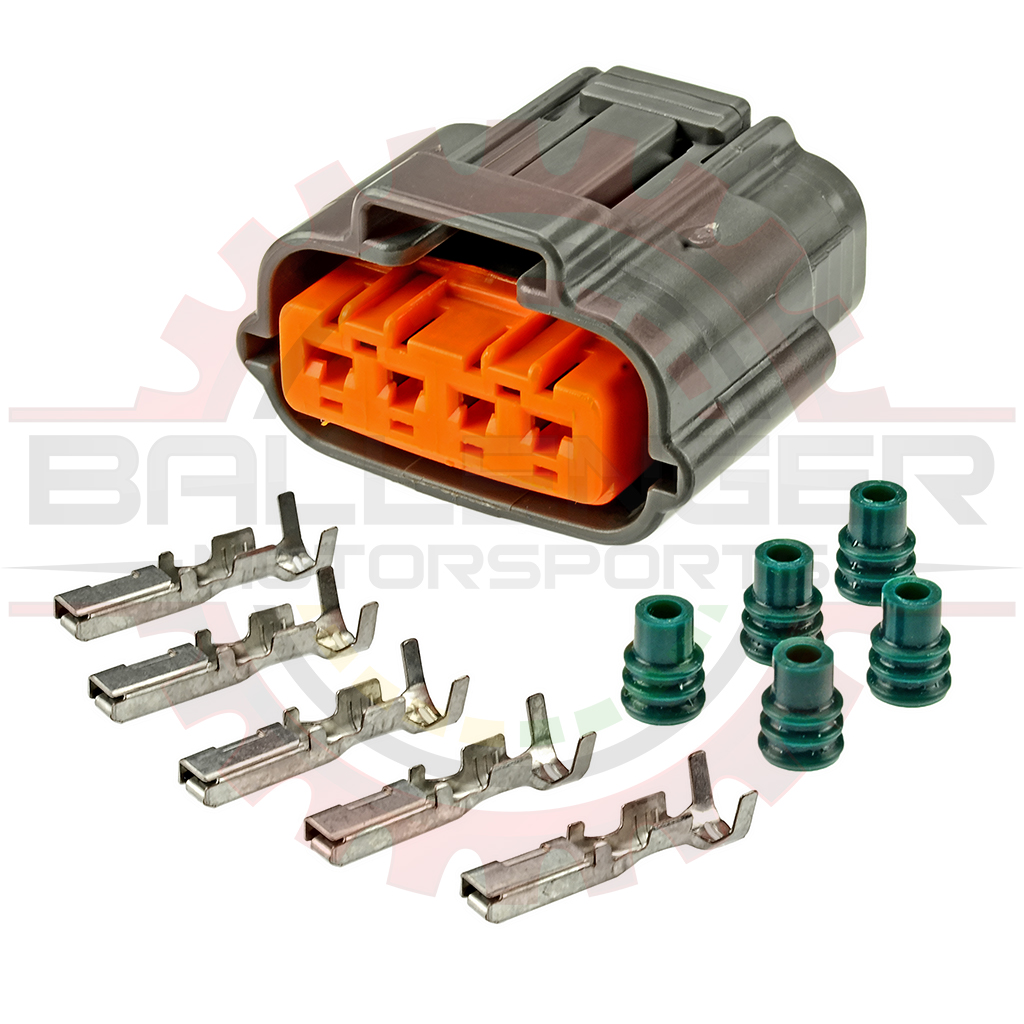

This product contains the following items:
	» 5 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 5 x Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece Part # CONN-100452
	» 1 x 4 Way Plug for Japanese sensors Part # CONN-100587
