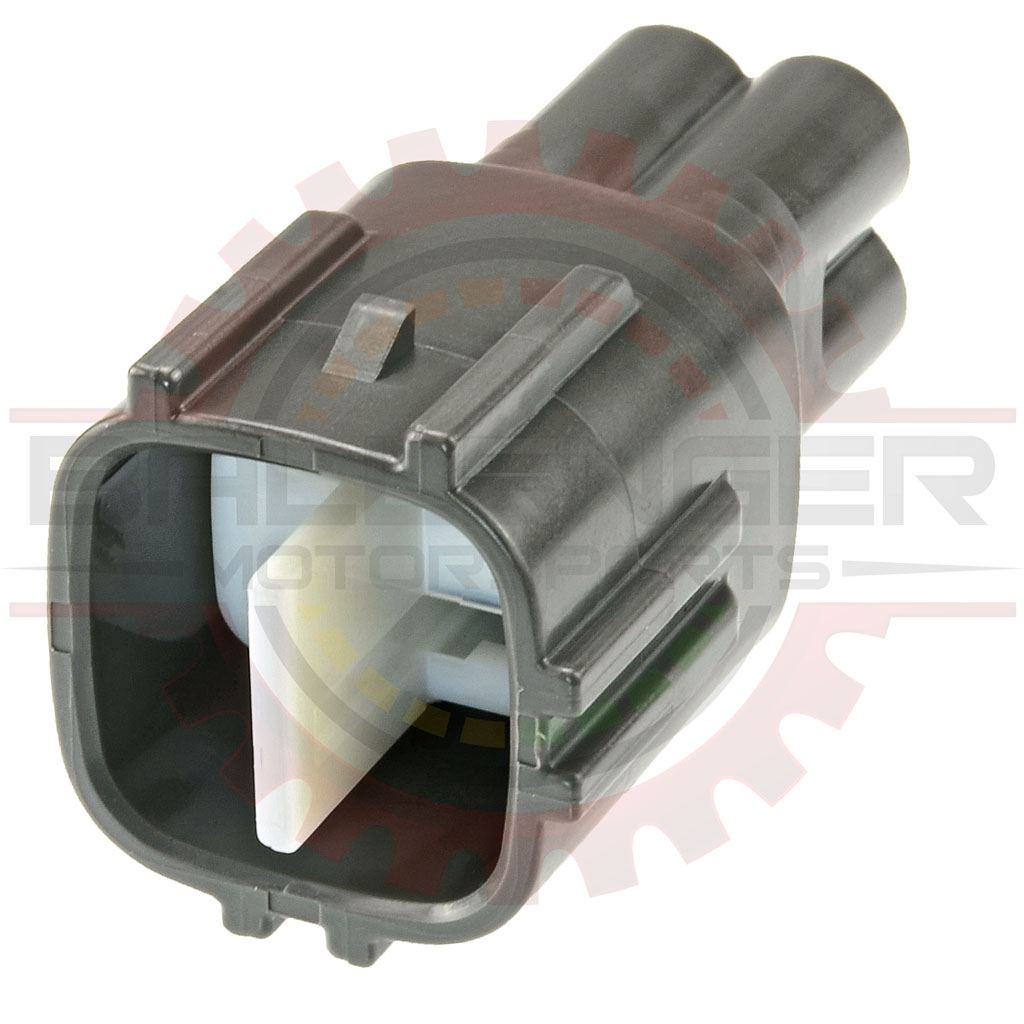

4 Way Receptacle Assembly for Subaru & Toyota Oxygen Sensor (Connector + Lock)	Part # CONN-100709

Pricing
1 +	$6.99
25 +	$6.49
50 +	$6.25
100 +	$5.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-100709
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

4 Way Receptacle Assembly for Subaru & Toyota Oxygen Sensor (Connector + Lock). Connector and Lock ONLY. Terminals and seals not included.

Used on a wide variety of Toyota, Subaru, & other Japanese applications for oxygen sensors or o2 sensors.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100709	4 Way Receptacle Assembly for Subaru & Toyota Oxygen Sensor (Connector + Lock)
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75836	4 Way Receptacle Kit for Subaru & Toyota Oxygen Sensor
Connector Pigtail	CONN-85836	4 Way Receptacle Pigtail for Subaru & Toyota Oxygen Sensor
Mating Connectors
Connector Only	CONN-100708	4 Way Plug Assembly for Subaru & Toyota Oxygen Sensor (Connector + Lock)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75835	4 Way Plug Kit for Subaru & Toyota Oxygen Sensor
Connector Pigtail	CONN-85835	4 Way Plug Pigtail for Subaru & Toyota Oxygen Sensor
Extensions
Extension	CONN-85837	4 Way Extension for Subaru & Toyota Oxygen Sensor

Applications

Applications:

Toyota Oxygen Sensor connector for many models & years
Subaru Oxygen Sensor connector for many models & years
Many applications not listed

Specifications

Parameter Value
Number of Ways 4
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Used In

Part #	Description
CONN-75836	4 Way Receptacle Kit for Subaru & Toyota Oxygen Sensor
CONN-85836	4 Way Receptacle Pigtail for Subaru & Toyota Oxygen Sensor
CONN-85837	4 Way Extension for Subaru & Toyota Oxygen Sensor
