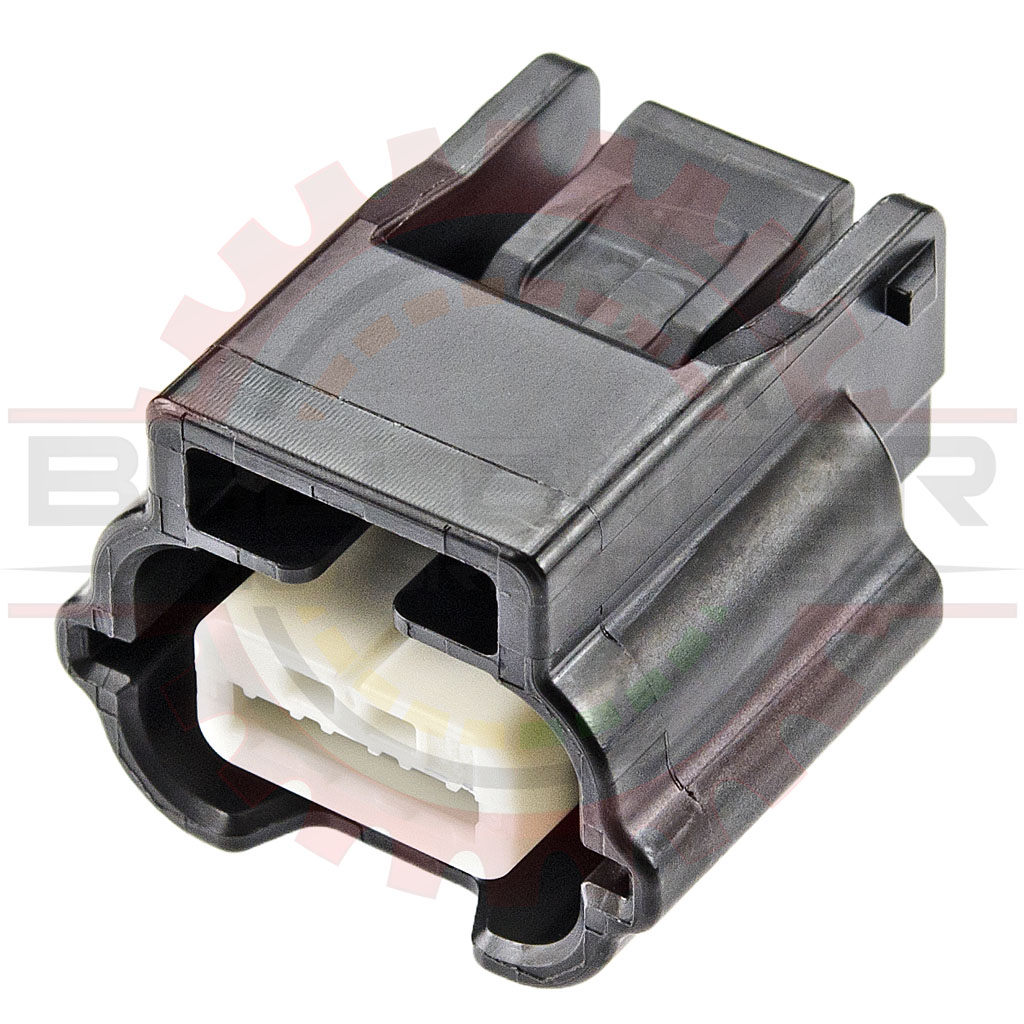

3 Way Nissan MAP Connector Plug Assembly Part # CONN-100741
3 Way Nissan MAP Connector Plug Assembly 3 Way Nissan MAP Connector Plug Assembly 3 Way Nissan MAP Connector Plug Assembly
Pricing
1 + $6.99
25 + $6.49
50 + $6.25
100 + $5.99
1000 + $4.99
Information
Bmotorsports Part # CONN-100741
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

3 Way Nissan MAP Connector Plug Assembly. Connector and Lock ONLY. Terminals and seals not included.

Used on a wide variety of Nissan MAP applications. Also used for other sensors and connections on Nissan vehicles.


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Connector Only CONN-1007413 Way Nissan MAP Connector Plug Assembly
Terminals CONN-100719Nissan MAF Female Terminal 20AWG (.5mm2)
Seals CONN-100655Nissan MAF Seal 20-18AWG (.5mm2-0.85mm2)
Connector Kit CONN-758713 Way Nissan MAP Connector Plug Kit
Connector Pigtail CONN-858713 Way Nissan MAP Connector Plug Pigtail
Mating Connectors
Connector Only CONN-1006533 Way Nissan MAP Connector Receptacle Assembly
Terminals CONN-100654Nissan MAF Male Terminal 20AWG (.5mm2)
Seals CONN-100655Nissan MAF Seal 20-18AWG (.5mm2-0.85mm2)
Connector Kit CONN-758583 Way Nissan MAP Connector Receptacle Kit
Connector Pigtail CONN-858583 Way Nissan MAP Connector Receptacle Pigtail
Extensions
Extension CONN-85872

Applications

Applications

  • Nissan GTR MAP Connector
  • 2010+ Nissan Murano Camshaft Connector
  • 2010+ Nissan Murano Crankshaft Connector
  • 2010+ Nissan 370z Camshaft Connector
  • 2010+ Nissan 370z Crankshaft Connector
  • Hitachi MAP PN PRS0004 Connector
  • Hitachi MAP PN PRS0002 Connector
  • 22365-JF00C MAP Connector
  • Many applications not listed


Specifications

Parameter Value
Number of Ways3
GenderPlug/Male
Terminal Size0.63mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge20


Used In

Part # Description
CONN-758713 Way Nissan MAP Connector Plug Kit
CONN-858713 Way Nissan MAP Connector Plug Pigtail
