4 Way Nissan MAP (TMAP) Connector Plug Assembly	Part # CONN-100742

Pricing
1 +	$6.99
25 +	$6.49
50 +	$6.25
100 +	$5.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-100742
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

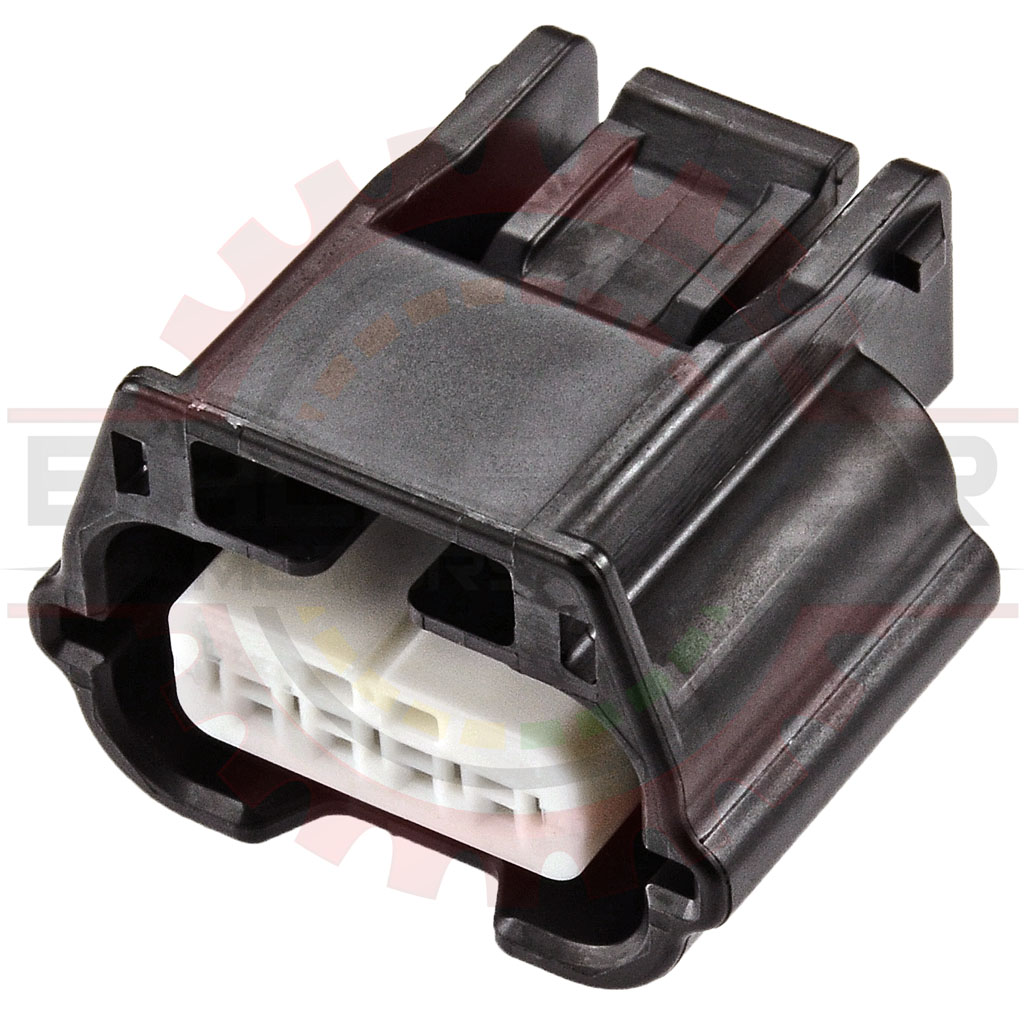

4 Way Nissan MAP (TMAP) Connector Plug Assembly. Connector and Lock ONLY. Terminals and seals not included.

Used on a wide variety of Nissan TMAP applications. Also used for other sensors and connections on Nissan vehicles.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100742	4 Way Nissan MAP (TMAP) Connector Plug Assembly
Terminals	CONN-100719	Nissan MAF Female Terminal 20AWG (.5mm2)
Seals	CONN-100655	Nissan MAF Seal 20-18AWG (.5mm2-0.85mm2)
Connector Kit	CONN-75882	4 Way Nissan MAP (TMAP) Connector Plug Kit
Connector Pigtail	CONN-85882	4 Way Nissan MAP (TMAP) Connector Plug Pigtail
Mating Connectors
Connector Only	CONN-100974	4 Way Nissan MAP (TMAP) Connector Receptacle Assembly
Terminals	CONN-100654	Nissan MAF Male Terminal 20AWG (.5mm2)
Seals	CONN-100655	Nissan MAF Seal 20-18AWG (.5mm2-0.85mm2)
Connector Kit	CONN-76042	4 Way Nissan MAP (TMAP) Connector Receptacle Kit
Connector Pigtail	CONN-86042	4 Way Nissan MAP (TMAP) Connector Receptacle Pigtail
Extensions
Connector Extension	CONN-86043	4 Way Nissan MAP (TMAP) Connector Extension

Applications

Applications:

Nissan Juke MAP (TMAP) Connector
Nissan Pathfinder MAP (TMAP) Connector
Infiniti QX60 MAP (TMAP) Connector
Hitachi MAP PN PRS0005 Connector
22365-1KC0A MAP Connector
2015+ Subaru WRX MAP Connector
Many applications not listed

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 0.63mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 20

Used In

Part #	Description
CONN-75882	4 Way Nissan MAP (TMAP) Connector Plug Kit
CONN-85882	4 Way Nissan MAP (TMAP) Connector Plug Pigtail
CONN-86043	4 Way Nissan MAP (TMAP) Connector Extension
CONN-86044	Nissan GTR TMAP Adapter Harness
