4 Way TS Connector Plug Kit, Gray 90980-10942 for A/C connections	Part # CONN-76000

Pricing
1 +	$6.99
50 +	$6.75
100 +	$6.49
500 +	Call for Pricing
Information
Bmotorsports Part #	CONN-76000
Availability	In Stock
Shipping Weight	0.01 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

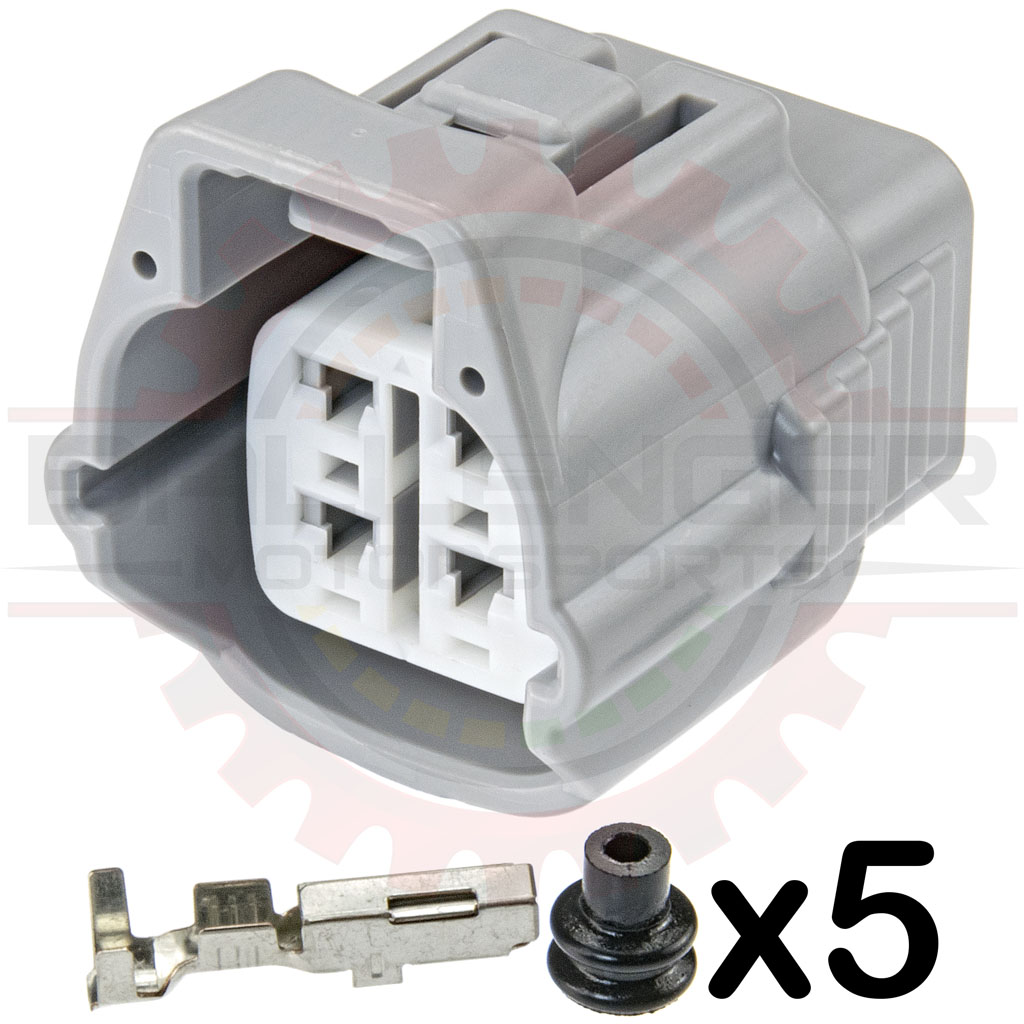

4 Way TS Connector Plug Kit, Gray 90980-10942 for A/C connections. Connector Kit. Terminals and seals ARE included.

City/Clearance light connector on some Toyota applications.
Air Conditioning compressor on many Toyota applications
one of the 3 connectors used for Toyota's EHPS Electro-hydraulic power steering pump, harness side

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing	CONN-100279	4 Way TS Connector Plug, Gray 90980-10942 for A/C connections
Connector Kit	CONN-76000	4 Way TS Connector Plug Kit, Gray 90980-10942 for A/C connections
Pigtail	CONN-86000	4 Way TS Connector Plug Pigtail, Gray 90980-10942 for A/C connections
Mating Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing	CONN-100287	4 Way TS Connector Receptacle, Gray 90980-10941
Connector Kit	CONN-76001	4 Way TS Connector Receptacle Kit, Gray 90980-10941 for A/C connections
Pigtail	CONN-86001	4 Way TS Connector Receptacle Pigtail, Gray 90980-10941 for A/C connections

Applications

City/Clearance light connector on some Toyota applications.
Air Conditioning compressor on many Toyota applications.
Toyota PN 90980-10942
Many other Toyota Applications

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 5 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 5 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 4 Way TS Connector Plug, Gray 90980-10942 for A/C connections Part # CONN-100279
