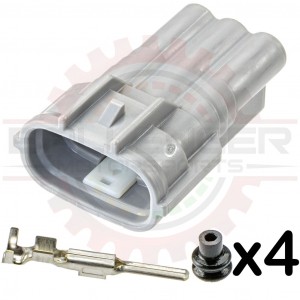

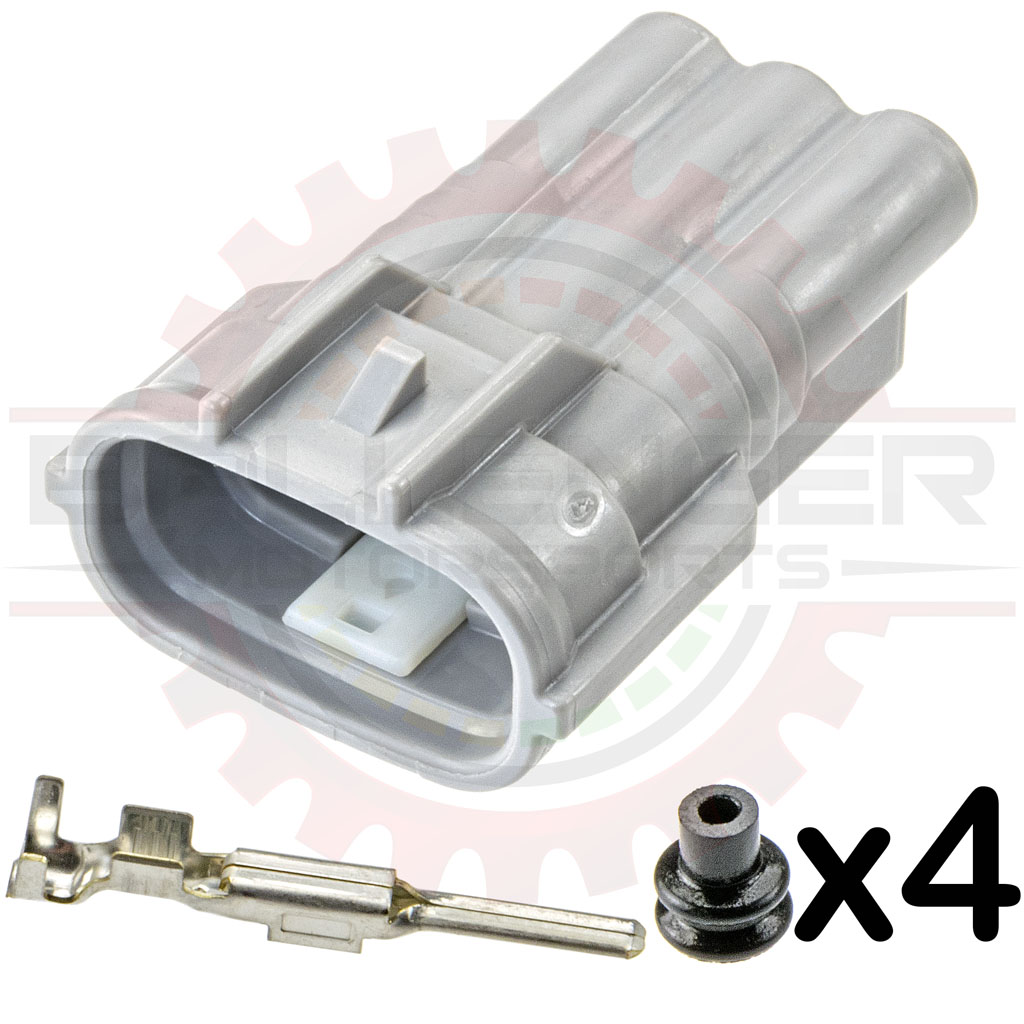

Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348) Part # CONN-76011
Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348) Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348) Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348)
Pricing
1 + $8.99
50 + $8.75
100 + $8.49
500 + Call for Pricing
Information
Bmotorsports Part # CONN-76011
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348). Connector Kit. Terminals and seals ARE included.

Mates with Black or Gray version of this mating connector. Commonly used as the Alternator Receptacle on millions of Toyota, Lexus, & other applications.

Toyota Part Number 90980-11348


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-100320Sumitomo TS 3 Way Alternator Receptacle Housing, (Toyota # 90980-11348)
Connector Kit CONN-76011Sumitomo TS 3 Way Alternator Receptacle Kit, (Toyota # 90980-11348)
Connector Pigtail CONN-86011Sumitomo TS 3 Way Alternator Receptacle Pigtail, (Toyota # 90980-11348)
Mating Parts
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-100300Sumitomo TS 3 Way Alternator Plug Housing, (Toyota # 90980-11349)
Connector Kit CONN-75736Sumitomo TS 3 Way Alternator Plug Kit, (Toyota # 90980-11349)
Connector Pigtail CONN-85736Sumitomo TS 3 Way Alternator Plug Pigtail, (Toyota # 90980-11349)

Applications

Year Make Model Description
2006 LEXUS GS 430, GS 300 Fuel Pressure Sensor(EWD EWD620U - E72) [Black]
2007 LEXUS GS 430, GS 350 Fuel Pressure Sensor(EWD EM0390U - E72) [Black]
2007 LEXUS GS 450H Fuel Pressure Sensor(EWD EM02D2U - E72) [Black]
2008 LEXUS GS 450H Fuel Pressure Sensor(EWD EM0870U - E72) [Black]
2009 LEXUS GS 450H Fuel Pressure Sensor(EWD EM11J0U - E72) [Black]
2010 LEXUS GS 450H Fuel Pressure Sensor(EWD EM14A0U - E72) [Black]
2011 LEXUS GS 450H Fuel Pressure Sensor(EWD EM1600U - E72) [Black]
2010 LEXUS GS 460 / GS 350 Fuel Pressure Sensor(EWD EM1490U - E72) [Black]
2011 LEXUS GS 460 / GS 350 Fuel Pressure Sensor(EWD EM15Z0U - E72) [Black]
2008 LEXUS GS 460, GS 350 Fuel Pressure Sensor(EWD EM0860U - E72) [Black]
2009 LEXUS GS 460, GS 350 Fuel Pressure Sensor(EWD EM11H0U - E72) [Black]
1999 LEXUS GS300 Generator (EWD - G2)
2000 LEXUS GS300 Generator (EWD - G2)
2001 LEXUS GS300 Generator (EWD - G2)
2002 LEXUS GS300 Generator (EWD - G2)
2003 LEXUS GS300 Generator (EWD - G2)
2004 LEXUS GS300 Generator (EWD - G2)
2005 LEXUS GS300 Generator (EWD - G2)
1999 LEXUS GS400 Generator (EWD - G2)
2000 LEXUS GS400 Generator (EWD - G2)
2001 LEXUS GS430 Generator (EWD - G2)
2002 LEXUS GS430 Generator (EWD - G2)
2003 LEXUS GS430 Generator (EWD - G2)
2004 LEXUS GS430 Generator (EWD - G2)
2005 LEXUS GS430 Generator (EWD - G2)
2010 LEXUS IS 350 / IS 250 Fuel Pressure Sensor(EWD EM13U0U - E37) [Black]
2011 LEXUS IS 350 / IS 250 Fuel Pressure Sensor(EWD EM1660U - E37) [Black]
2006 LEXUS IS 350, IS 250 Fuel Pressure Sensor(EWD EM0140U - E37) [Black]
2008 LEXUS IS 350, IS 250 Fuel Pressure Sensor(EWD EM07T0U - E37) [Black]
2011 LEXUS IS 350C / IS 250C Fuel Pressure Sensor(EWD EM1680U - E37) [Black]
2011 LEXUS IS 350C / IS 250C Seat Belt Tension Sensor (Front Seat Outer Belt Assembly RH)(EWD EM1680U - P39) [Gray]
2001 LEXUS IS300 Generator (EWD - G2)
2005 LEXUS IS300 Generator (EWD - G2)
2000 LEXUS LS400 Generator (EWD - G2)
2000 LEXUS LS400 Glove Box Light No.1 (EWD - G3)
2000 LEXUS LS400 Glove Box Light No.2 (EWD - G4)
2000 LEXUS LS400 Glove Box Light SW No.1 (EWD - G5)
2000 LEXUS LS400 Glove Box Light SW No.2 (EWD - G6)
1999 LEXUS LX470 Generator (EWD - G2)
2000 LEXUS LX470 Generator (EWD - G2)
2001 LEXUS LX470 Generator (EWD - G2)
2003 LEXUS LX470 Theft Deterrent Siren (EWD - T28)
2004 LEXUS LX470 Theft Deterrent Siren (EWD - T28)
2003 LEXUS RX300 Generator (EWD - G2)
2004 SCION xA Generator (EWD - G2)
2005 SCION xA Generator (EWD - G2)
2004 SCION xB Generator (EWD - G1)
2005 SCION xB Generator (EWD - G1)
2000 TOYOTA 4 RUNNER Generator (EWD - G1)
2002 TOYOTA 4 RUNNER Generator (EWD - G1)
1999 TOYOTA AVALON Generator (EWD - G1)
2000 TOYOTA AVALON Generator (EWD - G1)
2001 TOYOTA AVALON Generator (EWD - G1)
2002 TOYOTA AVALON Generator (EWD - G1)
2003 TOYOTA AVALON Generator (EWD - G1)
2004 TOYOTA AVALON Generator (EWD - G1)
2011 TOYOTA AVALON Headlamp Assembly (LH)(EWD EM1510U - A58) [Gray]
2011 TOYOTA AVALON Headlamp Assembly (RH)(EWD EM1510U - A62) [Gray]
1999 TOYOTA CAMRY Generator (EWD - G2)
2000 TOYOTA CAMRY Generator (EWD - G2)
2001 TOYOTA CAMRY Generator (EWD - G2)
2002 TOYOTA CAMRY Generator (EWD - G2)
2003 TOYOTA CAMRY Generator (EWD - G2)
1999 TOYOTA CELICA Generator (EWD - G1)
2000 TOYOTA CELICA Generator (EWD - G2)
2001 TOYOTA CELICA Generator (EWD - G2)
2002 TOYOTA CELICA Generator (EWD - G2)
2003 TOYOTA CELICA Generator (EWD - G2)
2004 TOYOTA CELICA Generator (EWD - G2)
2005 TOYOTA CELICA Generator (EWD - G2)
1999 TOYOTA COROLLA Generator (EWD - G2)
2000 TOYOTA COROLLA Generator (EWD - G2)
2001 TOYOTA COROLLA Generator (EWD - G2)
2002 TOYOTA COROLLA Generator (EWD - G2)
2003 TOYOTA COROLLA Generator (EWD - G1)
2004 TOYOTA COROLLA Generator (EWD - G1)
2005 TOYOTA COROLLA Generator (EWD - G1)
2006 TOYOTA COROLLA Generator(EWD EM00H0U - G1) [Black]
2007 TOYOTA COROLLA Generator(EWD EM0340U - G1) [Black]
2008 TOYOTA COROLLA Generator(EWD EM06U0U - G1) [Black]
2000 TOYOTA ECHO Generator (EWD - G2)
2001 TOYOTA ECHO Generator (EWD - G2)
2002 TOYOTA ECHO Generator (EWD - G2)
2003 TOYOTA ECHO Generator (EWD - G2)
2004 TOYOTA ECHO Generator (EWD - G2)
2005 TOYOTA ECHO Generator (EWD - G2)
1999 TOYOTA ES300 Generator (EWD - G2)
2000 TOYOTA ES300 Generator (EWD - G2)
2001 TOYOTA ES300 Generator (EWD - G2)
2002 TOYOTA ES300 Generator (EWD - G2)
2003 TOYOTA ES300 Generator (EWD - G2)
2001 TOYOTA HIGHLANDER Generator (EWD - G1)
2002 TOYOTA HIGHLANDER Generator (EWD - G1)
2003 TOYOTA HIGHLANDER Generator (EWD - G1)
2006 TOYOTA HIGHLANDER Floor No.4 Wire and Fuel Tank Wire (Right Side of Rear Floor Crossmember)(EWD EM0120U - BI1) [Gray]
2008 TOYOTA HIGHLANDER Back Door Lock Assembly(EWD EM06J0U - T3) [Black]
2010 TOYOTA HIGHLANDER Back Door Lock Assembly(EWD EM1410U - T3) [Black]
2011 TOYOTA HIGHLANDER Back Door Lock Assembly(EWD EM1500U - T3) [Black]
2008 TOYOTA HIGHLANDER HYBRID Back Door Lock Assembly(EWD EM07V0U - T3) [Black]
2009 TOYOTA HIGHLANDER HYBRID Back Door Lock Assembly(EWD EM10T0U - T3) [Black]
2010 TOYOTA HIGHLANDER HYBRID Back Door Lock Assembly(EWD EM1420U - T3) [Black]
1999 TOYOTA LAND CRUISER Generator (EWD - G1)
2000 TOYOTA LAND CRUISER Generator (EWD - G1)
2002 TOYOTA LAND CRUISER Generator (EWD - G1)
2006 TOYOTA LAND CRUISER Engine Room Main Wire and Engine Room No.4 Wire (Hood Lock Brace)(EWD EM0011U - EH1) [Black]
2007 TOYOTA LAND CRUISER Engine Room Main Wire and Engine Room No.4 Wire (Hood Lock Brace)(EWD EM03R0U - EH1) [Black]
2008 TOYOTA LAND CRUISER Back Door Lock Assembly(EWD EM0800U - S1) [Black]
2008 TOYOTA LAND CRUISER Engine Room Main Wire and Engine No.2 Wire (Front Fender Apron LH)(EWD EM0800U - AD2) [Black]
2009 TOYOTA LAND CRUISER Back Door Lock Assembly(EWD EM10V0U - S1) [Black]
2009 TOYOTA LAND CRUISER Engine Room Main Wire and Engine No.2 Wire (Front Fender Apron LH)(EWD EM10V0U - AD2) [Black]
2010 TOYOTA LAND CRUISER Back Door Lock Assembly(EWD EM13N0U - S1) [Black]
2010 TOYOTA LAND CRUISER Engine Room Main Wire and Engine No.2 Wire (Front Fender Apron LH)(EWD EM13N0U - AD2) [Black]
2011 TOYOTA LAND CRUISER Back Door Lock Assembly(EWD EM16F0U - S1) [Black]
2011 TOYOTA LAND CRUISER Engine Room Main Wire and Engine No.2 Wire (Front Fender Apron LH)(EWD EM16F0U - AD2) [Black]
2003 TOYOTA MATRIX Generator (EWD - G1)
2004 TOYOTA MATRIX Generator (EWD - G1)
2005 TOYOTA MATRIX Generator (EWD - G1)
2006 TOYOTA MATRIX Generator(EWD EM00F0U - G1) [Black]
2000 TOYOTA MR2 SPYDER Generator (EWD - G1)
2001 TOYOTA MR2 SPYDER Generator (EWD - G1)
2002 TOYOTA MR2 SPYDER Generator (EWD - G1)
1999 TOYOTA RAV4 Generator (EWD - G2)
2000 TOYOTA RAV4 Generator (EWD - G2)
2001 TOYOTA RAV4 Generator (EWD - G2)
2002 TOYOTA RAV4 Generator (EWD - G2)
2003 TOYOTA RAV4 Generator (EWD - G2)
2004 TOYOTA RAV4 Generator (M/T)
2005 TOYOTA RAV4 Generator (M/T)
2000 TOYOTA RAV4 EV No.1 Condenser Fan (EWD - N3)
2000 TOYOTA RAV4 EV No.2 Condenser Fan (EWD - N4)
2000 TOYOTA RAV4 EV Noise Filter No.2 (EWD - N2)
2000 TOYOTA RAV4 EV Regenerative Brake Solenoid (EWD - R3)
2002 TOYOTA RAV4 EV Noise Filter No.2 (EWD - N2)
2002 TOYOTA RAV4 EV Regenerative Brake Solenoid (EWD - R3)
2003 TOYOTA RAV4-EV Noise Filter No.2 (EWD - N2)
2003 TOYOTA RAV4-EV Regenerative Brake Solenoid (EWD - R3)
2009 TOYOTA RUSH Generator Assembly(EWD EM11M0EA - B6) [Black]
2001 TOYOTA SEQUOIA Generator (EWD - G2)
2002 TOYOTA SEQUOIA Generator (EWD - G2)
2008 TOYOTA SEQUOIA Engine Room Main No.4 Wire and Engine Room Main Wire (Radiator Side Support LH)(EWD EM08L0U - CA1) [Black]
2008 TOYOTA SEQUOIA Frame No.2 Wire and Floor Wire (Lower Back Panel)(EWD EM08L0U - RO1) [Black]
2009 TOYOTA SEQUOIA Engine Room Main No.4 Wire and Engine Room Main Wire (Radiator Side Support LH)(EWD EM10Z0U - CA1) [Black]
2009 TOYOTA SEQUOIA Frame No.2 Wire and Floor Wire (Lower Back Panel)(EWD EM10Z0U - RO1) [Black]
2011 TOYOTA SEQUOIA Engine Room Main No.4 Wire and Engine Room Main Wire (Radiator Side Support LH)(EWD EM16D0U - CA1) [Black]
2011 TOYOTA SEQUOIA Frame No.2 Wire and Floor Wire (Lower Back Panel)(EWD EM16D0U - RO1) [Black]
1999 TOYOTA SIENNA Generator (EWD - G1)
2001 TOYOTA SIENNA Generator (EWD - G1)
2002 TOYOTA SIENNA Generator (EWD - G1)
2003 TOYOTA SIENNA Generator (EWD - G1)
2011 TOYOTA SIENNA Back Door Lock Assembly(EWD EM14R0U - W12) [Black]
2011 TOYOTA SIENNA Headlight Assembly LH(EWD EM14R0U - A10) [Gray]
2011 TOYOTA SIENNA Headlight Assembly RH(EWD EM14R0U - A24) [Gray]
1999 TOYOTA SOLARA Generator (EWD - G2)
2000 TOYOTA SOLARA Generator (EWD - G2)
2001 TOYOTA SOLARA Generator (EWD - G2)
2002 TOYOTA SOLARA Generator (EWD - G2)
2003 TOYOTA SOLARA Generator (EWD - G2)
1999 TOYOTA TACOMA Generator (EWD - G2)
2000 TOYOTA TACOMA Generator (EWD - G2)
2001 TOYOTA TACOMA Generator (EWD - G2)
2003 TOYOTA TACOMA Generator (EWD - G2)
2004 TOYOTA TACOMA Generator (EWD - G2)
2005 TOYOTA TACOMA A/C Compressor (EWD - A1)
2007 TOYOTA TACOMA A/C Compressor(EWD EM03N0U - A1) [Gray]
2007 TOYOTA TACOMA Seat Belt Tension Sensor(EWD EM03N0U - S29) [Gray]
2010 TOYOTA TACOMA A/C Compressor(EWD EM13Y0U - A1) [Gray]
2010 TOYOTA TACOMA Seat Belt Tension Sensor(EWD EM13Y0U - S29) [Gray]
2011 TOYOTA TACOMA A/C Compressor(EWD EM15M0U - A1) [Gray]
2011 TOYOTA TACOMA Seat Belt Tension Sensor(EWD EM15M0U - S29) [Gray]
2008 TOYOTA TOYOTA TUNDRA Engine Room Main No.4 Wire and Engine Room Main Wire (Under the Headlight LH)(EWD EM08H0U - CA1) [Black]
2008 TOYOTA TOYOTA TUNDRA Rear Sonar Wire and Frame Wire (Under the Rear Combination Light RH)(EWD EM08H0U - SR1) [Black]
2000 TOYOTA TUNDRA Generator (EWD - G2)
2001 TOYOTA TUNDRA Generator (EWD - G2)
2006 TOYOTA TUNDRA Seat Belt Tension Sensor (EWD - S39)
2007 TOYOTA TUNDRA Engine Room Main No.4 Wire and Engine Room Main Wire (Under the Headlight LH)(EWD EM04E0U - CA1) [Black]
2007 TOYOTA TUNDRA Rear Sonar Wire and Frame Wire (Under the Rear Combination Light RH)(EWD EM04E0U - SR1) [Black]
2009 TOYOTA TUNDRA Engine Room Main No.4 Wire and Engine Room Main Wire (Under the Headlight LH)(EWD EM11A0U - CA1) [Black]
2009 TOYOTA TUNDRA Rear Sonar Wire and Frame Wire (Under the Rear Combination Light RH)(EWD EM11A0U - SR1) [Black]
2010 TOYOTA TUNDRA Engine Room Main No.4 Wire and Engine Room Main Wire (Under the Headlight LH)(EWD EM12D0U - CA1) [Black]
2010 TOYOTA TUNDRA Rear Sonar Wire and Frame Wire (Under the Rear Combination Light RH)(EWD EM12D0U - SR1) [Black]
2011 TOYOTA TUNDRA Engine Room Main No.4 Wire and Engine Room Main Wire (Under the Headlight LH)(EWD EM16G0U - CA1) [Black]
2011 TOYOTA TUNDRA Rear Sonar Wire and Frame Wire (Under the Rear Combination Light RH)(EWD EM16G0U - SR1) [Black]
2010 TOYOTA VENZA Back Door Lock Assembly(EWD EM13X0U - R2) [Gray]
2004 TOYOTA YARIS Alternator (EWD - A9)
2005 TOYOTA YARIS Alternator (EWD - A9)


Specifications

Parameter Value
Number of Ways3
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 4 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )» 4 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Part # CONN-100069
Sumitomo TS 3 Way Alternator Receptacle Housing, (Toyota # 90980-11348)» 1 x Sumitomo TS 3 Way Alternator Receptacle Housing, (Toyota # 90980-11348)
Part # CONN-100320


Sales Policies
Ballenger Motorsports - High Performance Electronics accepts all major credit cards, including international cards. We also accept Paypal, Check, Money Order and Purchase Orders with account approval.

IO-
Shop With Confidence
  • Most orders placed before 1:30PM eastern time get shipped out on the same day!
  • Secure SSL encrypted shopping!
  • Interested in Net Terms?

  Sunday 24 November, 2024
Powered by osCommerce.
Copyright © 2006-2024 Ballenger Motorsports, Inc. All Rights Reserved.
