4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit Part # CONN-76032

4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit 4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit 4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit
Pricing
1 + $8.99
50 + $8.75
100 + $8.25
500 + Call for Pricing
Information
Bmotorsports Part # CONN-76032
Availability In Stock
Shipping Weight 0.02 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit. Connector Kit. Terminals and seals ARE included.

The 4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle is a custom part exclusive to Ballenger Motorsports. This receptacle connector will allow you to modify your Nissan MAF, Mazda Ignition Harness, among the many applications.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing CONN-1009374 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle
Connector Kit CONN-760324 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit
Pigtail CONN-860324 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Pigtail
Mating Parts
Terminals CONN-100580Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Seals CONN-100581Sumitomo 91 Series Seals 18 - 16 AWG
Connector Housing CONN-1008964 Way Nissan RB & SR CAS Plug Connector
Connector Kit CONN-759654 Way Nissan RB & SR CAS Plug Connector Kit
Pigtail CONN-859654 Way Nissan RB & SR CAS Plug Connector Pigtail
Mating Parts
Terminals CONN-100580Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Seals CONN-100581Sumitomo 91 Series Seals 18 - 16 AWG
Connector Housing CONN-1008984 Way Nissan S14 & S15, SR20 MAF Plug Connector
Connector Kit CONN-759674 Way Nissan S14 & S15, SR20 MAF Plug Connector Kit
Pigtail CONN-859674 Way Nissan S14 & S15, SR20 MAF Plug Connector Pigtail
Mating Parts
Terminals CONN-100452Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing CONN-1005874 Way Plug for Japanese sensors
Connector Kit CONN-758024 Way Plug Kit for Japanese sensors
Pigtail CONN-858024 Way Plug Pigtail for Japanese sensors
Extension
Extension CONN-860334 Way Nissan RB & SR CAS Plug Connector Extension
Extension CONN-860344 Way Nissan S14 & S15, SR20 MAF Connector Extension
Extension CONN-860354 Way Mazda Ignition Coil Connector Extension
Adapters (Coming Soon)

Applications

  • Mazda Ignition Coil Connector (Coil Side)
  • Nissan MAF Sensor Connector (MAF Side)
  • Nissan CAS Sensor Connector (CAS Side)
  • Nissan Crank Angle Sensor Connector (Crank Angle Sensor Side)
  • Sensor & Device Connector on many other applications


Specifications

Parameter Value
Number of Ways4
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

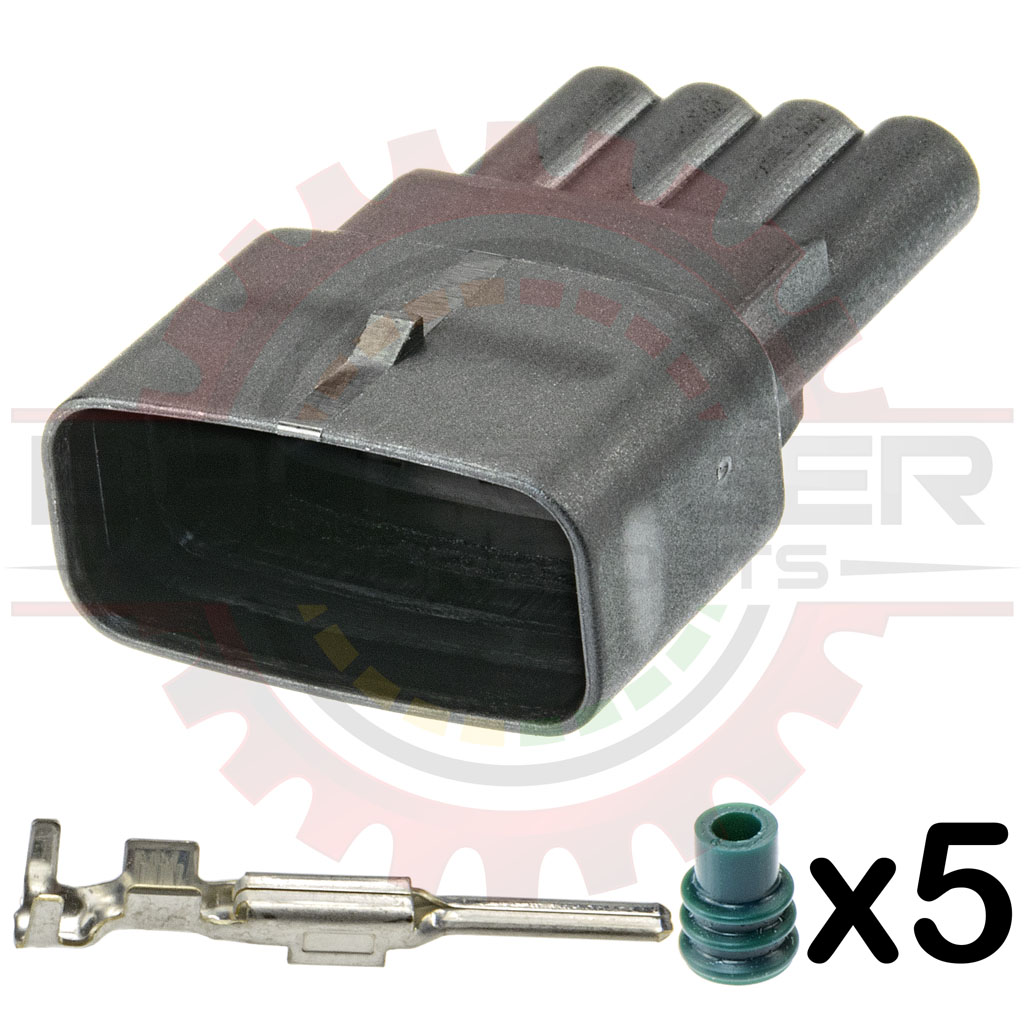

This product contains the following items:
Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)» 5 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Part # CONN-00119
Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )» 5 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Part # CONN-100069
4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle» 1 x 4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle
Part # CONN-100937
