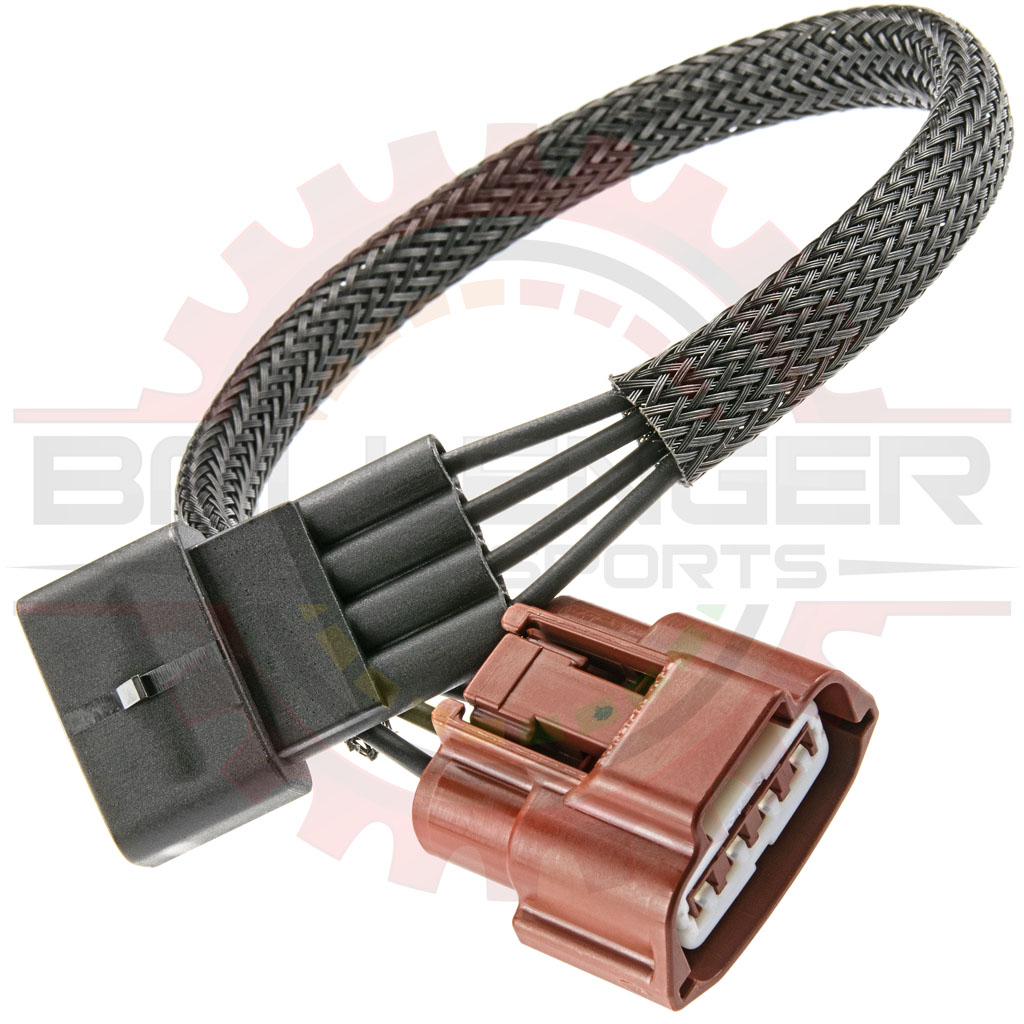

4 Way Nissan S14 & S15, SR20 MAF Connector Extension Part # CONN-86034
4 Way Nissan S14 & S15, SR20 MAF Connector Extension 4 Way Nissan S14 & S15, SR20 MAF Connector Extension 4 Way Nissan S14 & S15, SR20 MAF Connector Extension 4 Way Nissan S14 & S15, SR20 MAF Connector Extension 4 Way Nissan S14 & S15, SR20 MAF Connector Extension
Pricing
1 + $18.99
Information
Bmotorsports Part # CONN-86034
Availability In Stock
Shipping Weight 0.03 Lbs.
Shipping Location VA   (Shipping Info)
Options
Length
Ship Estimator Quantity:

Description

4 Way Nissan S14 & S15, SR20 MAF Connector Extension. Connector Extension. Available in 12, 24, 36in lengths.

The 4 Way Nissan S14 & S15, SR20 MAF Plug Connector is an upgraded version of the original Nissan connector from the OEM manufacturer. Used on the Nissan 240SX over many years with the SR20 engine.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing CONN-1009374 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle
Connector Kit CONN-760324 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Kit
Pigtail CONN-860324 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle Pigtail
Associated Parts
Terminals CONN-100580Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Seals CONN-100581Sumitomo 91 Series Seals 18 - 16 AWG
Connector Housing CONN-1008984 Way Nissan S14 & S15, SR20 MAF Plug Connector
Connector Kit CONN-759674 Way Nissan S14 & S15, SR20 MAF Plug Connector Kit
Pigtail CONN-759674 Way Nissan S14 & S15, SR20 MAF Plug Connector Kit
Mating Parts
Terminals CONN-100452Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing CONN-1005874 Way Plug for Japanese sensors
Connector Kit CONN-758024 Way Plug Kit for Japanese sensors
Pigtail CONN-858024 Way Plug Pigtail for Japanese sensors
Mating Parts
Terminals CONN-100580Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Seals CONN-100581Sumitomo 91 Series Seals 18 - 16 AWG
Connector Housing CONN-1008964 Way Nissan RB & SR CAS Plug Connector
Connector Kit CONN-759654 Way Nissan RB & SR CAS Plug Connector Kit
Pigtail CONN-859654 Way Nissan RB & SR CAS Plug Connector Pigtail
Extension
Extension CONN-860344 Way Nissan S14 & S15, SR20 MAF Connector Extension
Adapters (Coming Soon)

Applications

  • Nissan 240SX MAF Connector
  • Nissan 240SX Mass Airflow Connector
  • Nissan SR20 MAF Connector
  • Nissan SR20 Mass Airflow Connector
  • Nissan SR20DET MAF Connector
  • Nissan SR20DET Mass Airflow Connector
  • Nissan S14 MAF Connector
  • Nissan S14 Mass Airflow Connector
  • Nissan S15 MAF Connector
  • Nissan S15 Mass Airflow Connector
  • MAF / Mass Airflow Connector on many other applications


Specifications

Parameter Value
Number of Ways4
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 40 x Labor $0.25/minute
Part # LABR-00001
Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)» 4 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Part # CONN-00119
Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )» 4 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Part # CONN-100069
Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)» 4 x Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Part # CONN-100580
Sumitomo 91 Series Seals 18 - 16 AWG» 4 x Sumitomo 91 Series Seals 18 - 16 AWG
Part # CONN-100581
3/8in. Diameter Nylon Monofilament Expandable Braided Sleeving, Black» 1 x 3/8in. Diameter Nylon Monofilament Expandable Braided Sleeving, Black
Part # WIRE-57572
4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle» 1 x 4 Way Mazda, Nissan, Mitsubishi Ignition Coil & MAF Connector Receptacle
Part # CONN-100937
4-Way front lock for cummins TMAP, Nissan Distribtuors» 1 x 4-Way front lock for cummins TMAP, Nissan Distribtuors
Part # CONN-100895
4-way Sumitomo low keyway plug, brown» 1 x 4-way Sumitomo low keyway plug, brown
Part # CONN-100897
