6 Way Toyota Connector Plug Pigtail for IAC, ISCV, and EGR Valves	Part # CONN-86021

Pricing
1 +	$15.99
25 +	$13.49
50 +	$12.25
100 +	$11.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-86021
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

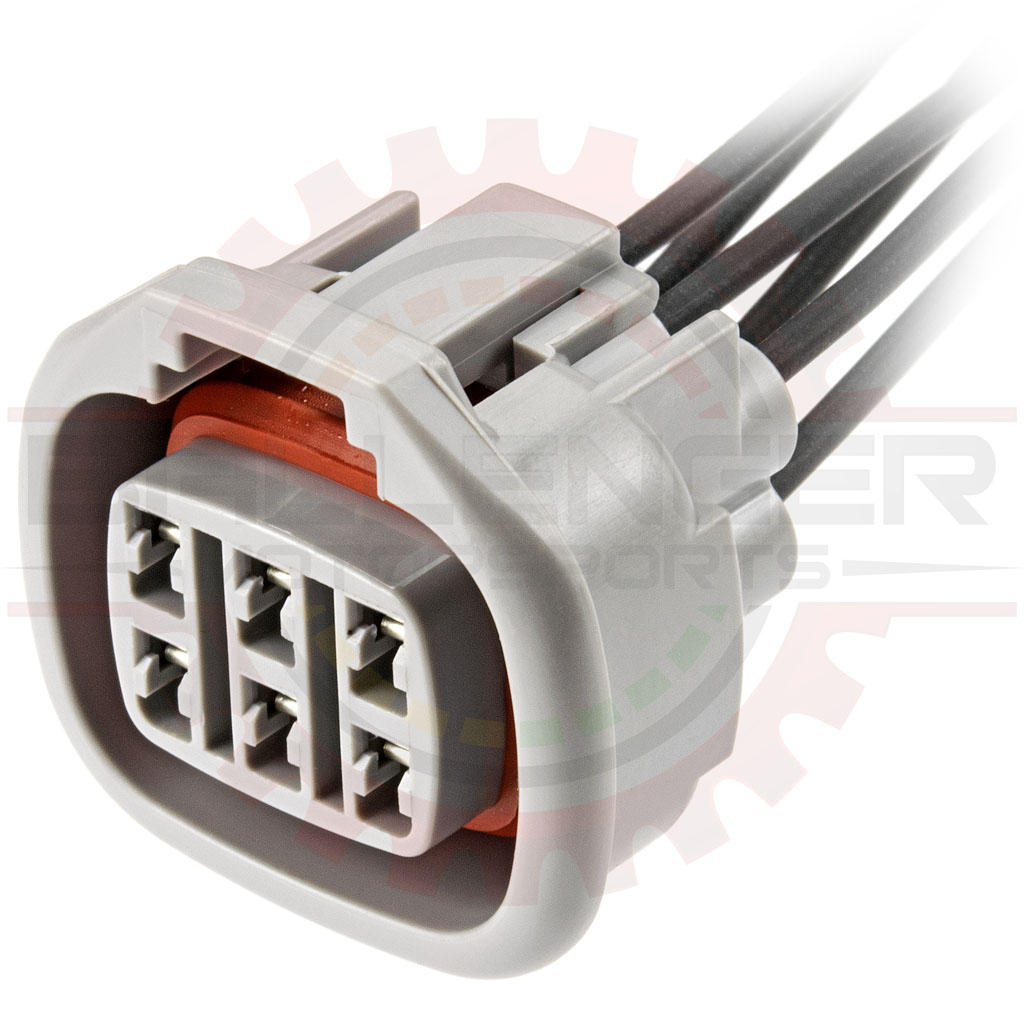

6 Way Toyota Connector Plug Pigtail for IAC, ISCV, and EGR Valves. Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

This connector uses the older Toyota 090 I 2.3mm terminal CONN-11656, and does not have a front lock.

Used on a wide variety of Toyota IAC, Idle Speed Control Valve, and some EGR applications. Also used for other IAC valves on select Nissan vehicles.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100959	6 Way Toyota Connector Plug for IAC, ISCV, and EGR Valves
Terminals	CONN-11656	Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-76021	6 Way Toyota Connector Plug Kit for IAC, ISCV, and EGR Valves
Connector Pigtail	CONN-86021	6 Way Toyota Connector Plug Pigtail for IAC, ISCV, and EGR Valves
Mating Connectors
Terminals	CONN-00115	Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )

Applications

Applications:

Toyota 090 I 6-way repair connector 90980-11144
Nissan 350z VQ35 Accelerator position sensor connector
Many applications not listed

Specifications

Parameter Value
Number of Ways 6
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

This product contains the following items:
	» 30 x Labor $0.25/minute Part # LABR-00001
	» 6 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 6 x Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy] Part # CONN-11656
	» 6 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 1 x 6 Way Toyota Connector Plug for IAC, ISCV, and EGR Valves Part # CONN-100959
