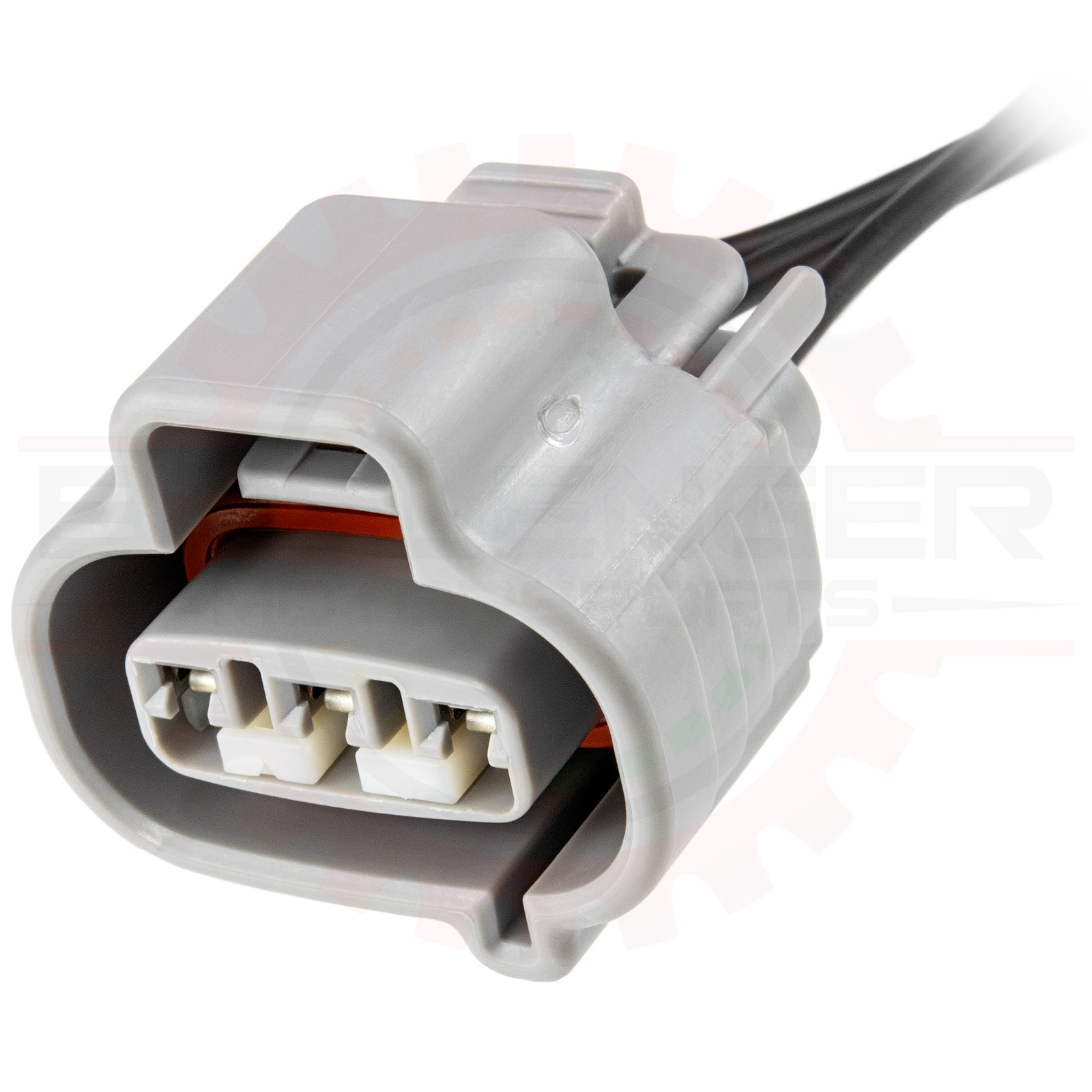

3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor Part # CONN-85698
3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor 3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor 3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Pricing
1 + $11.99
25 + $11.49
50 + $11.25
100 + $11.09
Information
Bmotorsports Part # CONN-85698
Availability In Stock
Shipping Weight 0.005 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor. Connector Pigtail. A completed pigtail is provided.

***This connector is the TS replacement for the older MT version, 6189-0027. The old part continues to be available as CONN-100299, though as special order. The new connector boasts a lower base cost over the MT version***

Toyota # 90980-11143

ACDelco # PT2547


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Housing CONN-1011693 Way Sumitomo Plug for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit CONN-756983 Way Sumitomo Connector Plug Kit for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Connector pigtail CONN-856983 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Old MT Series Parts
Connector Housing CONN-100299Sumitomo MT 3 way Plug Housing 6189-0027 (Connector ONLY)
Terminals CONN-11656Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit CONN-75742Sumitomo MT 3 way Plug Housing Kit 6189-0027
Connector pigtail CONN-85742Sumitomo MT 3 way Plug Housing Pigtail 6189-0027

Applications

  • 2004 - 2012 Duramax Diesel Cam Position Sensor
  • 2004 - 2012 Duramax Diesel CMP Pigtail
  • 2011 - 2015 LML Duramax Diesel CMP Pigtail
  • Equivalent to ACDelco Pigtail PT2547 & GM Pigtail Part# 13576413
  • Chevrolet Express 2500 from 2006-2011
  • Chevrolet Express 3500 from 2006-2011
  • Chevrolet Express 4500 from 2009-2011
  • Chevrolet Silverado 2500 HD from 2004-2012
  • Chevrolet Silverado 3500 from 2004-2005
  • Chevrolet Silverado 3500 HD from 2011-2012
  • GMC Savana 2500 from 2006-2011
  • GMC Savana 3500 from 2006-2011
  • GMC Savana 4500 from 2009-2011
  • GMC Sierra 2500 HD from 2004-2012
  • GMC Sierra 3500 from 2004-2005
  • GMC Sierra 3500 HD from 2011-2012
  • Many other applications not listed


Specifications

Parameter Value
Number of Ways3
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 15 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 3 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )» 3 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Part # CONN-11856
3 Way Sumitomo Plug for Toyota VSS 90980-11143, Duramax Cam Position Sensor» 1 x 3 Way Sumitomo Plug for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Part # CONN-101169
