20 Way Honda K Series C101 Engine to Chassis Connector Plug Kit	Part # CONN-76231

Pricing
1 +	$20.99
10 +	$19.99
100 +	$18.99
500 +	Call for Pricing
Information
Bmotorsports Part #	CONN-76231
Availability	In Stock
Shipping Weight	0.02 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

20 Way Honda K Series C101 Engine to Chassis Connector Plug Kit. Connector kit. Terminals are included.

This 20 Way Subharness Connector Plug connects the engine harness to the chassis harness on many Honda vehicles with K20 and K24 Series engines. Sometimes these break when being pulled, during race use, or a user needs to make a new patch harness for a K series Swap.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100753	ECU Female Terminals, 0.3mm2 - 0.85mm2 ( 22 - 18 AWG)
20 Way Hybrid 2.3/4.8mm C101 Connector	CONN-101330	20 Way Honda K Series C101 Engine to Chassis Subharness Connector Plug
Connector Kit	CONN-76231	20 Way Honda K Series C101 Engine to Chassis Connector Plug Kit
Pigtail (on request)	CONN-86231
2.3mm female terminals 0.5-1.25mm²	CONN-100989	Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170
2.3mm female terminals 0.5-1.25mm²	CONN-100291	Sumitomo TNS / MT / HM / DS / HD Unsealed Female terminal 20 - 16AWG (.5mm2 - 1.0mm2) - 8240-4422
4.8mm female terminals 0.5-1.25mm²	CONN-101333	Sumitomo 4.8mm Unsealed Female terminal HE/HD 187 for 0.5 - 1.25 mm² Wire
4.8mm female terminals 2-3mm² (14AWG)	CONN-101334	Sumitomo 4.8mm Unsealed Female terminal HE/HD 187 for 2 - 3 mm² Wire

Applications

Honda C101 subharness connector for engine conversions
Several K Series Honda / Acura Applications
Some other applications not specifically listed

Specifications

Parameter Value
Number of Ways 20
Gender Plug/Male
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 18

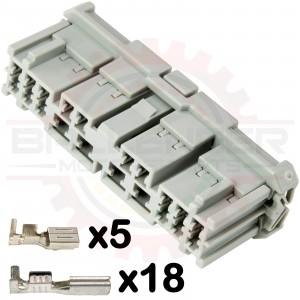

This product contains the following items:
	» 18 x Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170 Part # CONN-100989
	» 1 x 20 Way Honda K Series C101 Engine to Chassis Subharness Connector Plug Part # CONN-101330
	» 5 x Sumitomo 4.8mm Unsealed Female terminal HE/HD 187 for 0.5 - 1.25 mm² Wire Part # CONN-101333
