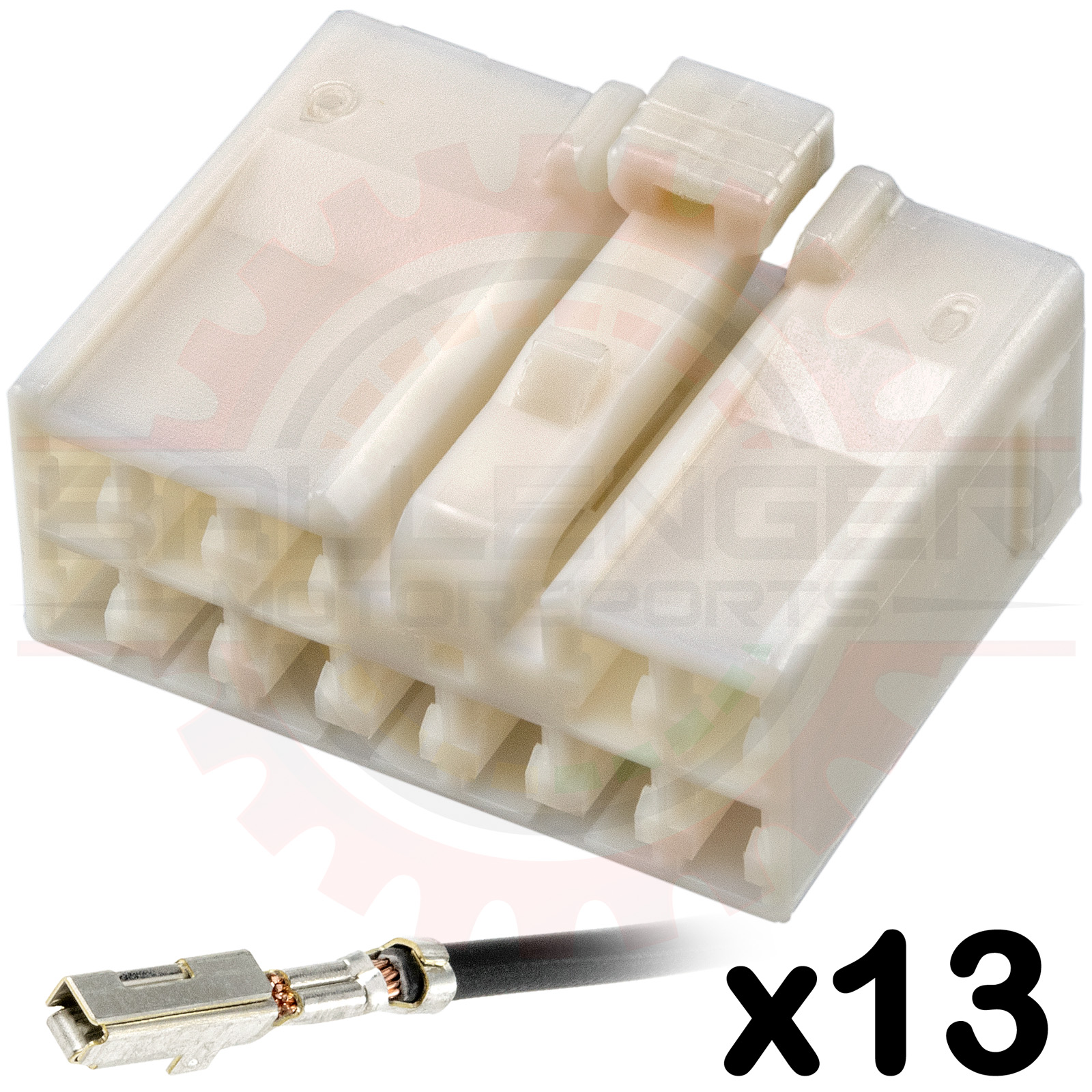

12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail Part # CONN-86248
12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail 12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail 12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail
Pricing
1 + $14.99
10 + $14.49
100 + $13.99
Information
Bmotorsports Part # CONN-86248
Availability In Stock
Shipping Weight 0.02 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail. Connector Pigtail. Flying leads/Toyota repair wire is included for a complete pigtail repair installation.

This 12 Way Junction Connector Plug connects the ECU to the chassis via this subharness connector on Toyota MR2 vehicles. These are often found broken, cut, mangled or lost. Sometimes these break when being pulled, during race use, or a user needs to make a new harness for engine conversions.
Toyota Connector #'s 90980-10803, 90980-11720, 90980-11782, 90980-12477 90980–10803, 90980–11720, 90980–11782, 90980–12477


Associated & Mating Parts

Relationship Part # Description
Associated Parts
18 Way EA3 Connector CONN-10133118 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector 90980-10819, 90980-11704
12 Way EA1 Connector CONN-10133212 Way Toyota MR2, Soarer EA1 Rear Trunk Junction Connector
18 Way EA3 Connector Kit CONN-7624718 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector Kit
12 Way EA1 Connector Kit CONN-7624812 Way Toyota MR2 EA1 Rear Trunk Junction Connector Kit
18 Way EA3 Connector Pigtail CONN-8624718 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector Pigtail
12 Way EA1 Connector Pigtail CONN-8624812 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail
090-ll non waterproof type 2.3mm female terminals CONN-100800Sumitomo TS / SL / DL 090 Unsealed Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )

Applications

  • MR2 EA1 connector plug
  • 90980-10803, 90980-11720, 90980-11782, 90980-12477
  • 90980–10803, 90980–11720, 90980–11782, 90980–12477
  • Some other applications not specifically listed


Specifications

Parameter Value
Number of Ways12
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 60 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 12 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Sumitomo TS / SL / DL 090 Unsealed Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )» 12 x Sumitomo TS / SL / DL 090 Unsealed Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Part # CONN-100800
12 Way Toyota MR2, Soarer EA1 Rear Trunk Junction Connector» 1 x 12 Way Toyota MR2, Soarer EA1 Rear Trunk Junction Connector
Part # CONN-101332
