Modified Sumitomo 2 way TS 090 II Receptacle Housing Connector Pigtail, Keyless	Part # CONN-86244

Pricing
1 +	$8.99
5 +	$8.75
25 +	$8.49
50 +	$8.25
100 +	$7.99
Information
Bmotorsports Part #	CONN-86244
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

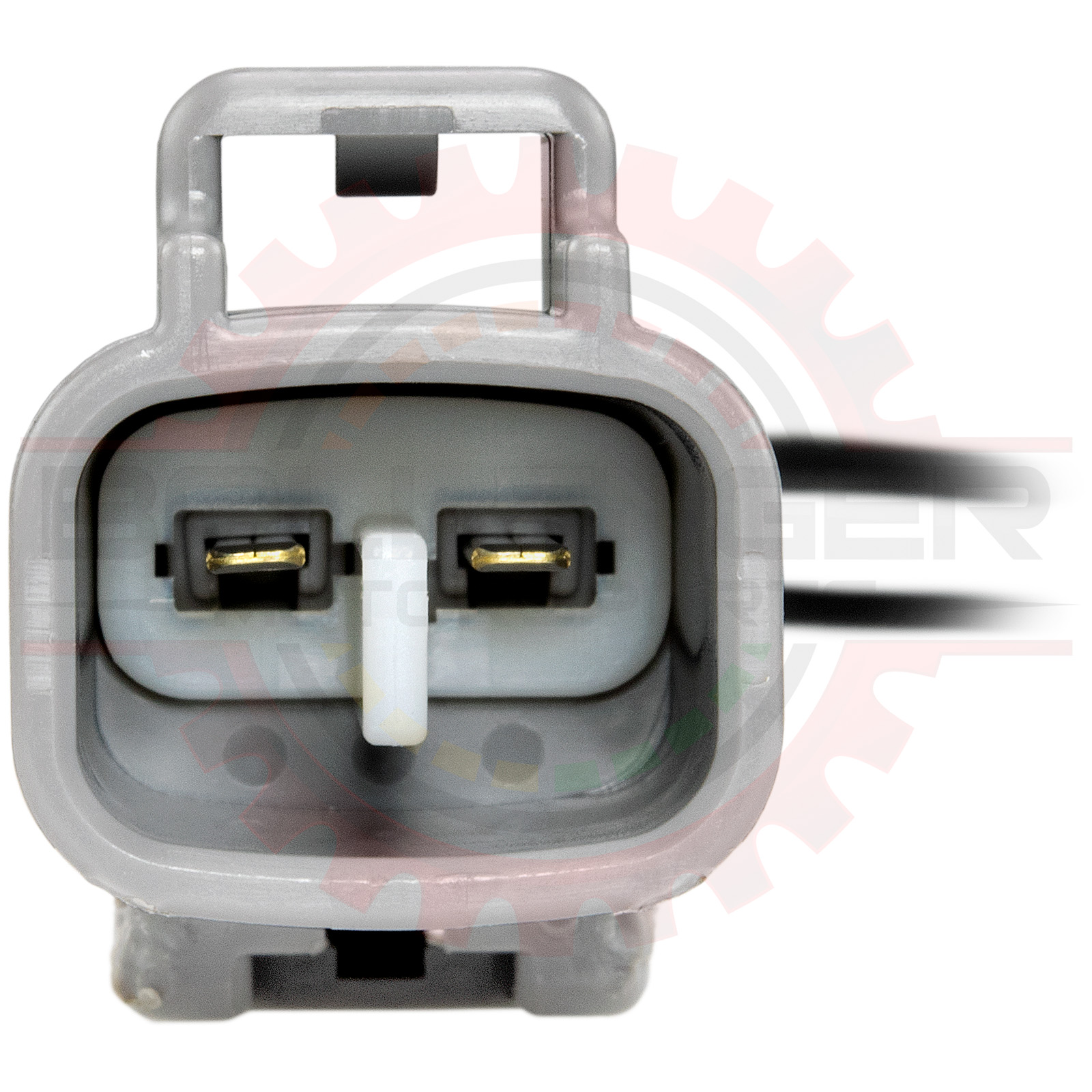

Modified Sumitomo 2 way TS 090 II Receptacle Housing Connector Pigtail, Keyless. Connector pigtail provides a complete connector assembly with 12"wire leads crimped and populated into the connector for a ready to splice repair or product.
This connector receptacle is commonly found on Toyota and Lexus vehicles. With the keyway removed, it is applicable for many devices and adapters that were previously unavailable, or of lower quality. Of note are turn signal, sidemarker light sockets, windshield washer fluid pumps, ignition noise filter, and many many more.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101354	Modified Sumitomo 2 way TS 090 II Receptacle Housing, Keyless
Connector Kit	CONN-76244	Modified Sumitomo 2 way TS 090 II Receptacle Connector Kit, Keyless
Connector Pigtail	CONN-86244	Modified Sumitomo 2 way TS 090 II Receptacle Housing Connector Pigtail, Keyless
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )

Specifications

Parameter Value
Number of Ways 2
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications:

Reverse switch connector for backup light trigger on Many Toyota C series transmissions
When the keyways are modified, can be used with turn signal/marker light bulbs and some washer pump connector mates
