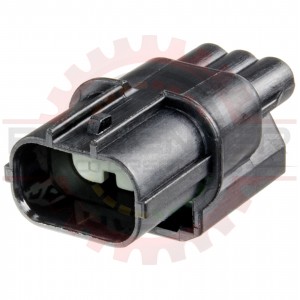

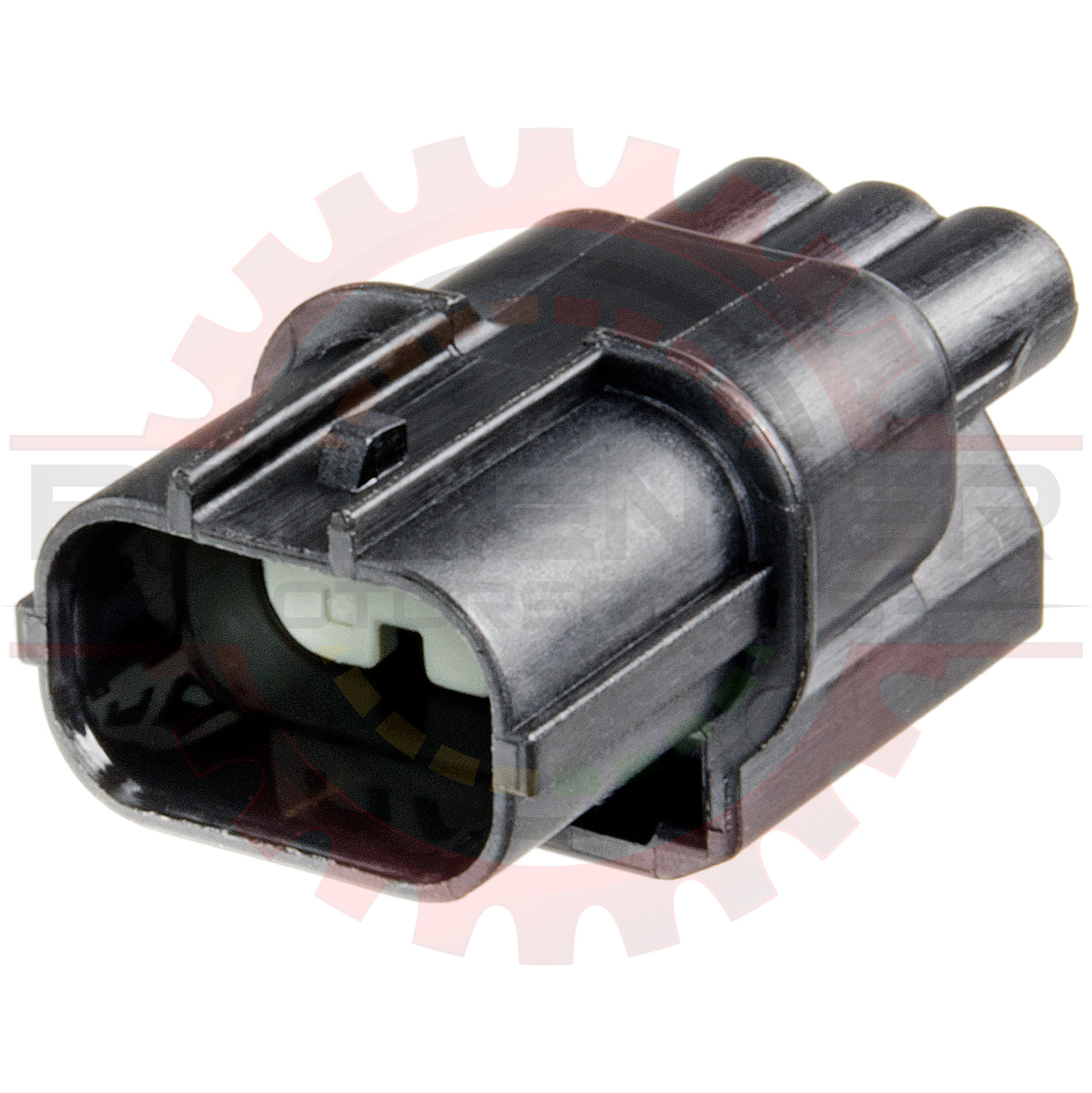

3 Way Sumitomo HX 040 Receptacle Connector	Part # CONN-100773

Pricing
1 +	$14.99
100 +	$13.99
500 +	$13.49
Information
Bmotorsports Part #	CONN-100773
Availability	In Stock
Qty. Available	114
Shipping Weight	0.008 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way Sumitomo HX 040 Receptacle Connector. Connector and Lock ONLY. Terminals and seals not included.

Commonly used in Honda applications, often for remote cam & crank sensors

Used for adapting K20 harnesses to K24 Crank position sensors

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100558	Sumitomo HX 040 Male Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Housing	CONN-100773	3 Way Sumitomo HX 040 Receptacle Connector
Connector Kit	CONN-76272	3 Way Sumitomo HX 040 Receptacle Connector Kit
Pigtail	CONN-86272	3 Way Sumitomo HX 040 Receptacle Connector Pigtail
Mating Parts
Terminals	CONN-100465	Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Housing	CONN-100556	3 Way Sumitomo HX 040 Plug Assembly (Connector + Lock)
Connector Kit	CONN-75778	3 Way Sumitomo HX 040 Plug Connector Kit
Pigtail	CONN-85778	3 Way Sumitomo HX 040 Plug Connector Pigtail

Applications

Applications:

Mate to Honda element TPS Throttle Position Sensor
Mate to Honda Odyssey oil pressure Sensor
Mate to Many Honda Crank, Cam and TPS sensors
Mate to '07-'09 Honda Fit Ignition Coil

Specifications

Parameter Value
Number of Ways 3
Gender Receptacle/Female
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 20

Used In

Part #	Description
CONN-76272	3 Way Sumitomo HX 040 Receptacle Connector Kit
CONN-86272	3 Way Sumitomo HX 040 Receptacle Connector Pigtail
