Subaru WRX Speed Density IAT Breakout	Part # CONN-86264

Pricing
1 +	$39.99
Information
Bmotorsports Part #	CONN-86264
Availability	In Stock
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
Options
Connector Option
	Quantity:

Description

Subaru WRX Speed Density IAT Breakout

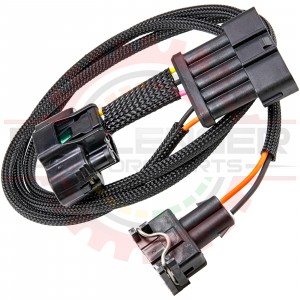

This breaks out the IAT signal from the MAF sensor on Subaru WRX 2002-2007 EJ205 engines to relocate to intercooler piping for more accurate plenum temperature as opposed to ambient intake temperature. Standard breakout length is 24". Shown with EV1 IAT connector which is popular with some Bosch IAT's. Pick your IAT connector from the drop down - Delphi / GM connector available.

Hi-temp Nylon Braided sleeving, genuine OEM connector plugs, seals, cavity plugs & terminals, manufactured and assembled at our facility in the US. This MAF Connector mate is aftermarket only.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100680	5 Way 090II Plug Assembly for Subaru & Toyota MAF (Connector + Lock)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
22-20AWG Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
22-18AWG Seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
Connector Kit	CONN-75825	5 Way Plug Kit for Subaru & Toyota MAF
Connector Pigtail	CONN-85825	5 Way Plug Pigtail for Subaru & Toyota MAF
Mating Connectors
Connector Only	CONN-100984	5 Way 090II Receptacle Connector Mate to Toyota Subaru MAF
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-76059	5 Way 090II Receptacle Connector Mate Kit to Toyota Subaru MAF
Connector Pigtail	CONN-86059	5 Way 090II Receptacle Connector Mate Pigtail to Toyota Subaru MAF
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465

Applications

Toyota 2JZ VVT-i MAF
2002-2007 Subaru WRX
Toyota 1GR-FE 2005-2007

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16
