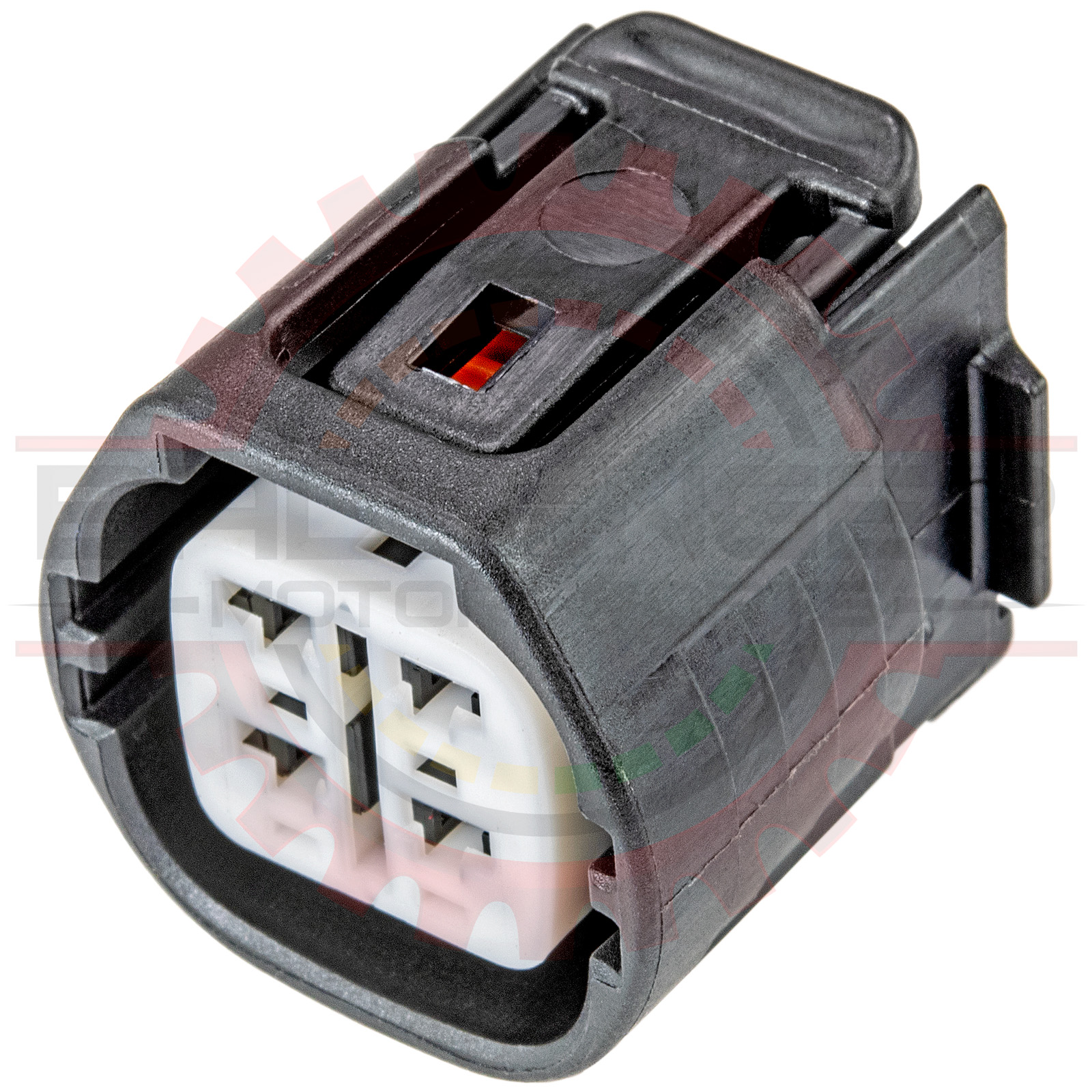

4 Way Toyota Alternator Plug Housing Part # CONN-101310
4 Way Toyota Alternator Plug Housing 4 Way Toyota Alternator Plug Housing 4 Way Toyota Alternator Plug Housing
Pricing
1 + $5.99
25 + $5.49
100 + $4.99
500 + Call for Pricing
Information
Bmotorsports Part # CONN-101310
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

4 Way Alternator Plug Housing. Connector ONLY. Terminals not included.

Commonly used as the Alternator Plug on millions of newer Toyota, Lexus, & other applications, Engine series GR, ZR, AR, UR 2006+

Honda's K-Series K24 factory 4-pin alternator and K24 Alternator Connector.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-1013104 Way Toyota Alternator Plug Housing
Connector Kit CONN-762574 Way Toyota Alternator Plug Connector Kit
Connector Pigtail CONN-862574 Way Toyota Alternator Plug Connector Pigtail
Mating Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )

Applications


Specifications

Parameter Value
Number of Ways4
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16


Used In

Part # Description
CONN-762574 Way Toyota Alternator Plug Connector Kit
CONN-862574 Way Toyota Alternator Plug Connector Pigtail
