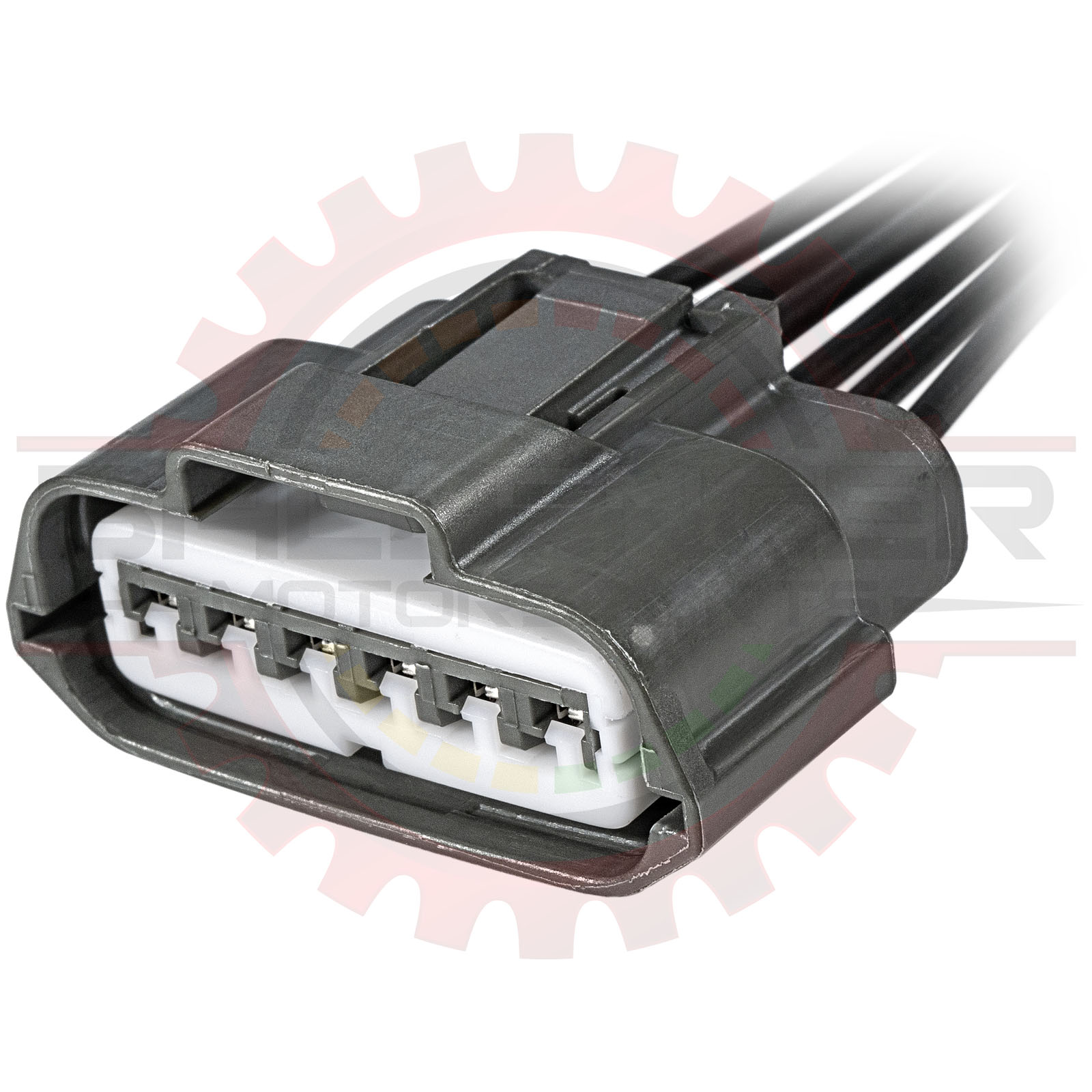

6 Way RS Series Plug Connector Pigtail Part # CONN-86376
6 Way RS Series Plug Connector Pigtail 6 Way RS Series Plug Connector Pigtail 6 Way RS Series Plug Connector Pigtail
Pricing
1 + $12.99
Information
Bmotorsports Part # CONN-86376
Availability In Stock
Shipping Weight 0.1 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

6 Way RS Series Plug Connector Pigtail. Connector Pigtail. A completed pigtail with 12" wire leads is provided.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100580Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Seals CONN-100581Sumitomo 91 Series Seals 18 - 16 AWG
Connector Only CONN-1016246 Way Sumitomo RS Series Plug Assembly
Connector Kit CONN-763766 Way RS Series Plug Connector Kit
Connector Pigtail CONN-863766 Way RS Series Plug Connector Pigtail
Mating Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Only CONN-1016256 Way Sumitomo RS series Receptacle
Connector Kit CONN-763776 Way RS Series Receptacle Connector Kit
Connector Pigtail CONN-863776 Way RS Series Receptacle Connector Pigtail
Extension
Extension CONN-863786 Way RS Series Extension

Specifications

Parameter Value
Number of Ways6
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge18
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 30 x Labor $0.25/minute
Part # LABR-00001
16AWG Automotive TXL Wire Black» 6 x 16AWG Automotive TXL Wire Black
Part # WIRE-00460s
Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)» 6 x Sumitomo 91 Series Female Terminals .85 - 1.25mm2 (18 - 16 AWG)
Part # CONN-100580
Sumitomo 91 Series Seals 18 - 16 AWG» 6 x Sumitomo 91 Series Seals 18 - 16 AWG
Part # CONN-100581
6 Way Sumitomo RS series, Plug only» 1 x 6 Way Sumitomo RS series, Plug only
Part # CONN-101622
6 Way Sumitomo RS series, Front Lock only» 1 x 6 Way Sumitomo RS series, Front Lock only
Part # CONN-101623
