Bosch 6 way LSU 4.9 Receptacle Connector Pigtail	Part # CONN-85772

Pricing
1 +	$18.99
25 +	$17.99
50 +	$16.49
100 +	$15.99
250 +	$14.99
500 +	$13.99
Information
Bmotorsports Part #	CONN-85772
Availability	In Stock
Shipping Weight	0.15 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

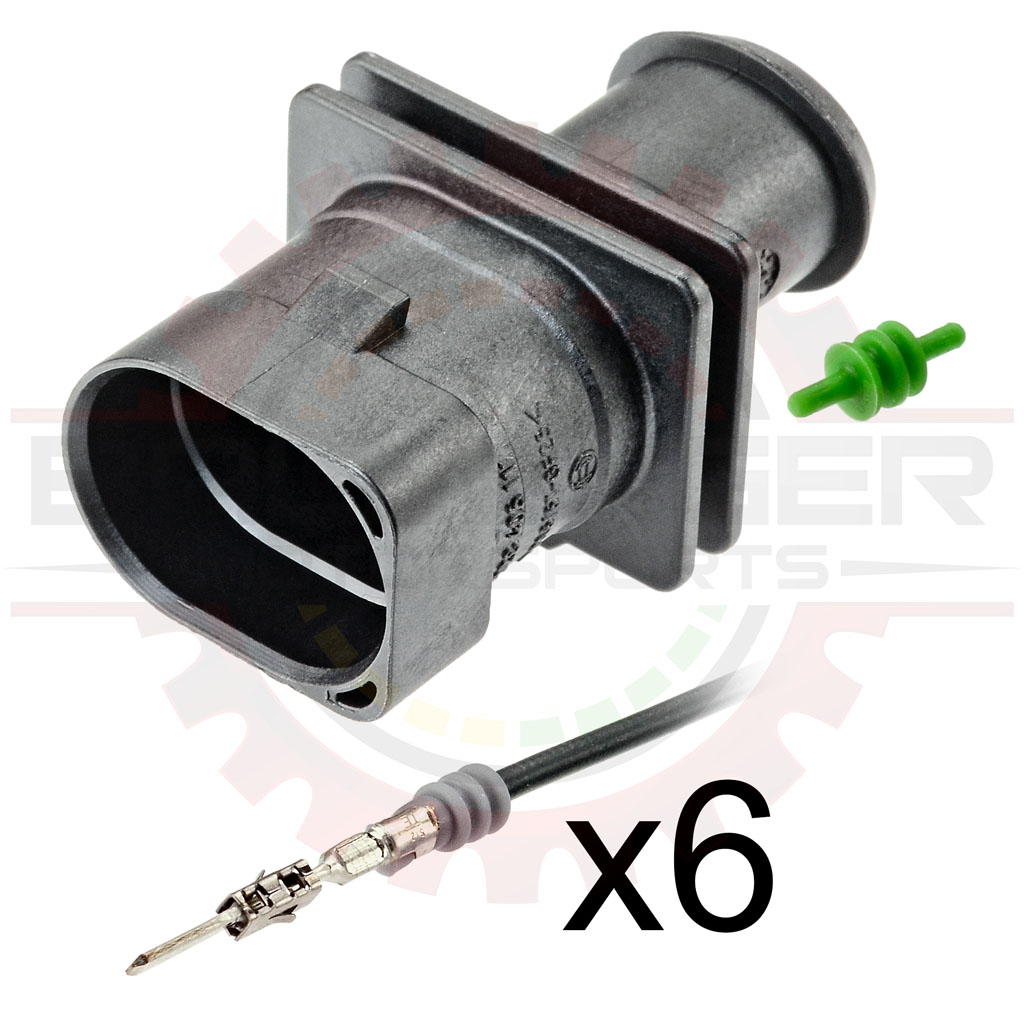

Bosch LSU 4.9 Receptacle Connector Pigtail. Includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. Terminated wires and a cavity plug are provided so the housing can be assembled per user application.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector	CONN-100322	Bosch 6 way LSU 4.9 Receptacle Connector
Terminal	CONN-00196	Male Terminals for Bosch LSU 4.9 Receptacle Connector
Seal	CONN-00193	Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor
Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
Connector Kit	CONN-75772	Bosch 6 way LSU 4.9 Receptacle Connector Kit
Connector Pigtail	CONN-85772	Bosch 6 way LSU 4.9 Receptacle Connector Pigtail
Mating Parts
Connector	CONN-100321	Bosch 6 way LSU 4.9 Connector
Terminal	CONN-00195	Terminals for Bosch LSU 4.9 Connector
Seal	CONN-00193	Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor
Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
Connector Kit	CONN-75762	Bosch 6 way LSU 4.9 Connector Kit
Connector Pigtail	CONN-85762	Bosch 6 way LSU 4.9 Connector Pigtail
Extensions
Extension	CONN-85773	Bosch 6 Way LSU 4.9 Extension Harness
Associated Sensors
LSU 4.9 Wideband Sensor (1000mm)	SNSR-01029	Bosch LSU 4.9 Wideband O2 Sensor ( UEGO ) with Bosch Connector - Advanced Bosch LSU Design (1m/39.4in length)
LSU 4.9 Wideband Sensor (700mm)	SNSR-01044	Bosch LSU 4.9 Wideband O2 Sensor ( UEGO ) with Bosch Connector - Advanced Bosch LSU Design (.7m/27.6in length)
LSU 4.9 Wideband Sensor (450mm)	SNSR-01042	Bosch LSU 4.9 Wideband O2 Sensor ( UEGO ) with Bosch Connector - Advanced Bosch LSU Design (.45m/17.7in length)

Applications

Specifications

Parameter Value
Number of Ways 6
Gender Receptacle/Female
Terminal Size 1.5mm
Terminal Type Flat

This product contains the following items:
	» 30 x Labor $0.25/minute Part # LABR-00001
	» 6 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 1 x GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm Part # CONN-56557
	» 6 x Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor Part # CONN-00193
	» 1 x Bosch 6 way LSU 4.9 Receptacle Connector Part # CONN-100322
	» 6 x Male Terminals for Bosch LSU 4.9 Receptacle Connector Part # CONN-00196
