5 Way Bosch Ignitor Plug Connector Pigtail. Fits AEM 30-2840 Driver.	Part # CONN-85955

Pricing
1 +	$11.99
50 +	$11.75
100 +	$11.49
Information
Bmotorsports Part #	CONN-85955
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

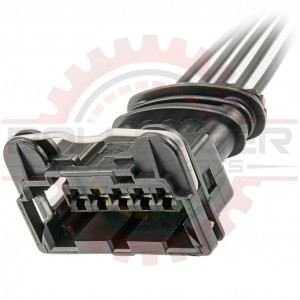

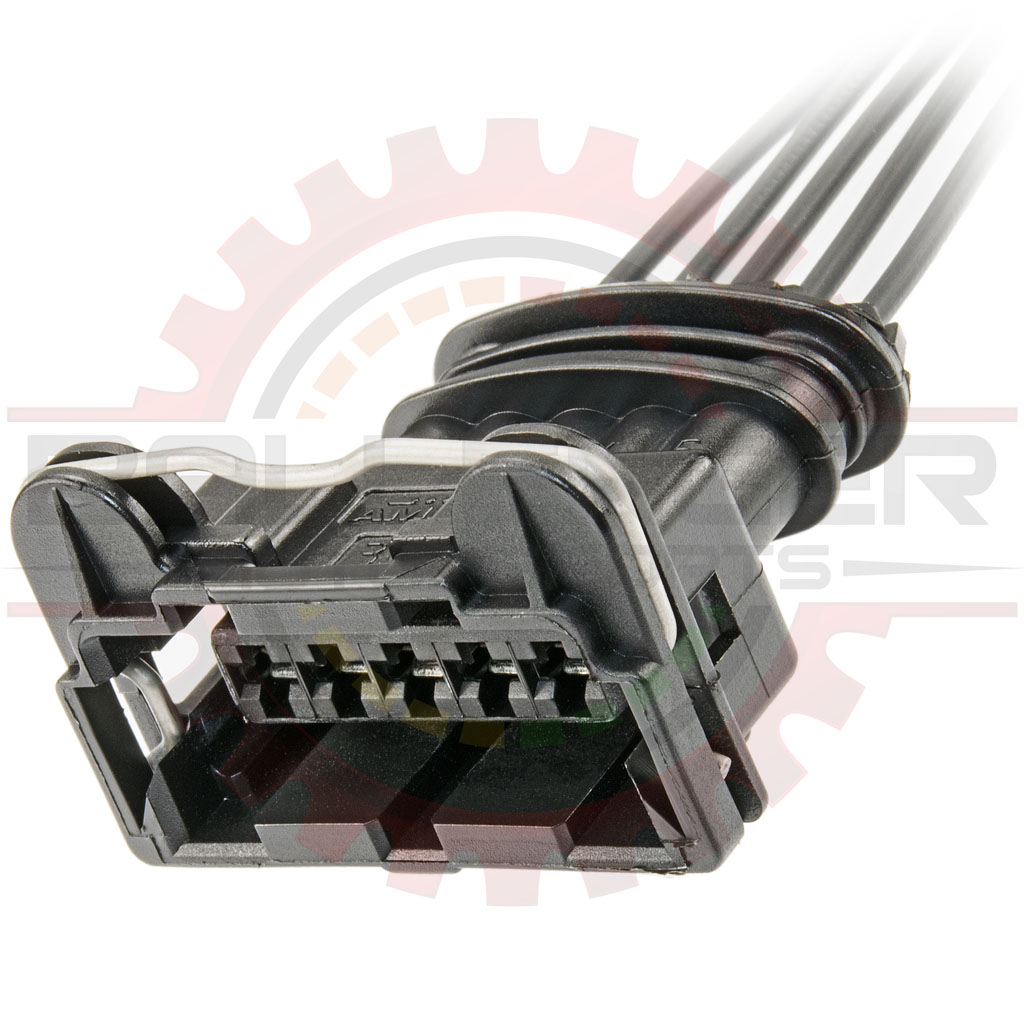

5 Way Bosch Ignitor Plug Connector Pigtail. Connector Pigtail. Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

5 Way Bosch Ignitor Plug Connector for many European, Japanese, & US market applications. Fits AEM Electronics 30-2840 4 Channel Coil Driver. See CONN-100882 for our Bosch 4 Way Ignitor.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-10575	Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Housing	CONN-100882	4 Way Bosch Ignitor Plug Connector. Fits AEM 30-2840 Driver.
Connector Kit	CONN-75954	4 Way Bosch Ignitor Plug Connector Kit. Fits AEM 30-2840 Driver.
Pigtail	CONN-85954	4 Way Bosch Ignitor Plug Connector Pigtail. Fits AEM 30-2840 Driver.
Mating Parts
Terminals	CONN-10575	Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Housing	CONN-100883	5 Way Bosch Ignitor Plug Connector. Fits AEM 30-2840 Driver.
Connector Kit	CONN-75955	5 Way Bosch Ignitor Plug Connector Kit. Fits AEM 30-2840 Driver.
Pigtail	CONN-85955	5 Way Bosch Ignitor Plug Connector Pigtail. Fits AEM 30-2840 Driver.

Applications

4 Way Bosch Ignitor Plug Connector for many European, Japanese, & US market applications.
Bosch P/N 1 287 013 006 (Bosch # 1287013006)
AEM Electronics 30-2840 4 Channel Coil Driver
Many other applications not listed

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 2.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 25 x Labor $0.25/minute Part # LABR-00001
	» 5 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 5 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 5 x Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG) Part # CONN-10575
	» 1 x 5 Way Bosch Ignitor Plug Connector. Fits AEM 30-2840 Driver. Part # CONN-100883
