4 Way Ford Receptacle Connector Pigtail For TMAP Sensors	Part # CONN-86128

Pricing
1 +	$8.99
25 +	$8.49
50 +	$8.25
100 +	$8.09
Information
Bmotorsports Part #	CONN-86128
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

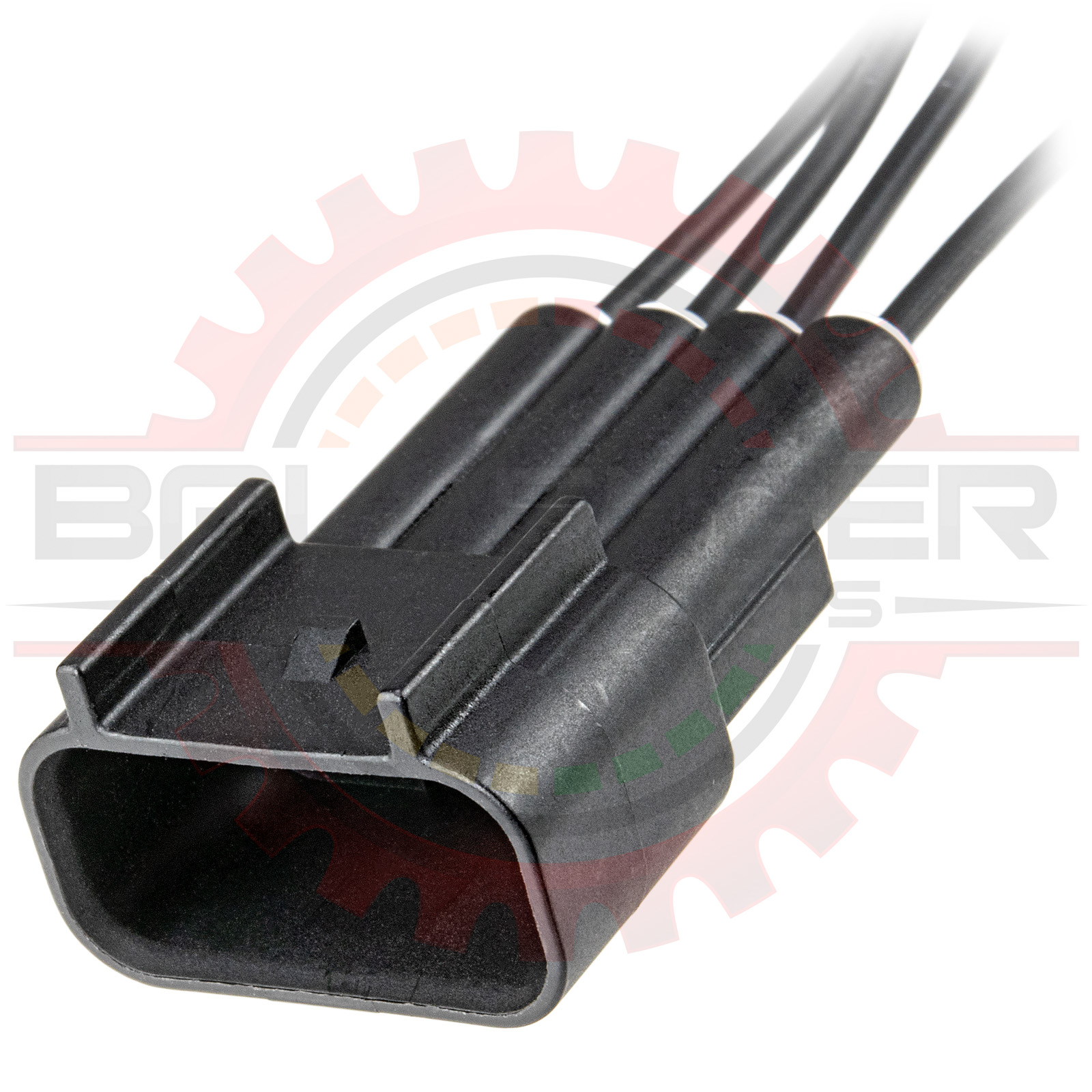

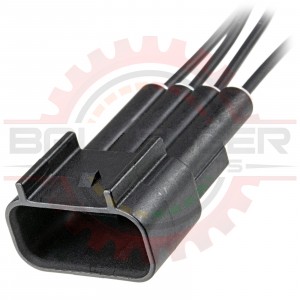

4 Way Ford Receptacle Connector Pigtail For TMAP Sensors. Connector Pigtail. A completed pigtail is provided.

This connector acts as the device side connection, or "mate-to" the harness connector on a variety of Ford, Lincoln, Mercury, and Mazda vehicles, including but not limited to: MAP Sensor, TMAP Sensor, TPS

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100986	Ford / Yazaki 1.5 Male Terminal, 18-16AWG
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only	CONN-101141	4 Way Ford Receptacle Connector For TMAP Sensors
Connector Kit	CONN-76128	4 Way Ford Receptacle Connector Kit For TMAP Sensors
Connector Pigtail	CONN-86128	4 Way Ford Receptacle Connector Pigtail For TMAP Sensors
Mating Parts
Terminals	CONN-100481	Ford / Yazaki 1.5 Terminal, 18-16AWG
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only	CONN-101140	4 Way Connector Plug For Ford TMAP Sensors
Connector Kit	CONN-76127	4 Way Connector Kit For Ford TMAP Sensors
Connector Pigtail	CONN-86127	4 Way Connector Pigtail For Ford TMAP Sensors

Applications

2005-2006 Ford GT 5.4L MAP Sensor
Many applications not listed here

Specifications

Parameter Value
Number of Ways 4
Gender Receptacle/Female
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

This product contains the following items:
	» 20 x Labor $0.25/minute Part # LABR-00001
	» 4 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 4 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 4 x Ford / Yazaki 1.5 Male Terminal, 18-16AWG Part # CONN-100986
	» 1 x 4 Way Ford Receptacle Connector For TMAP Sensors Part # CONN-101141
