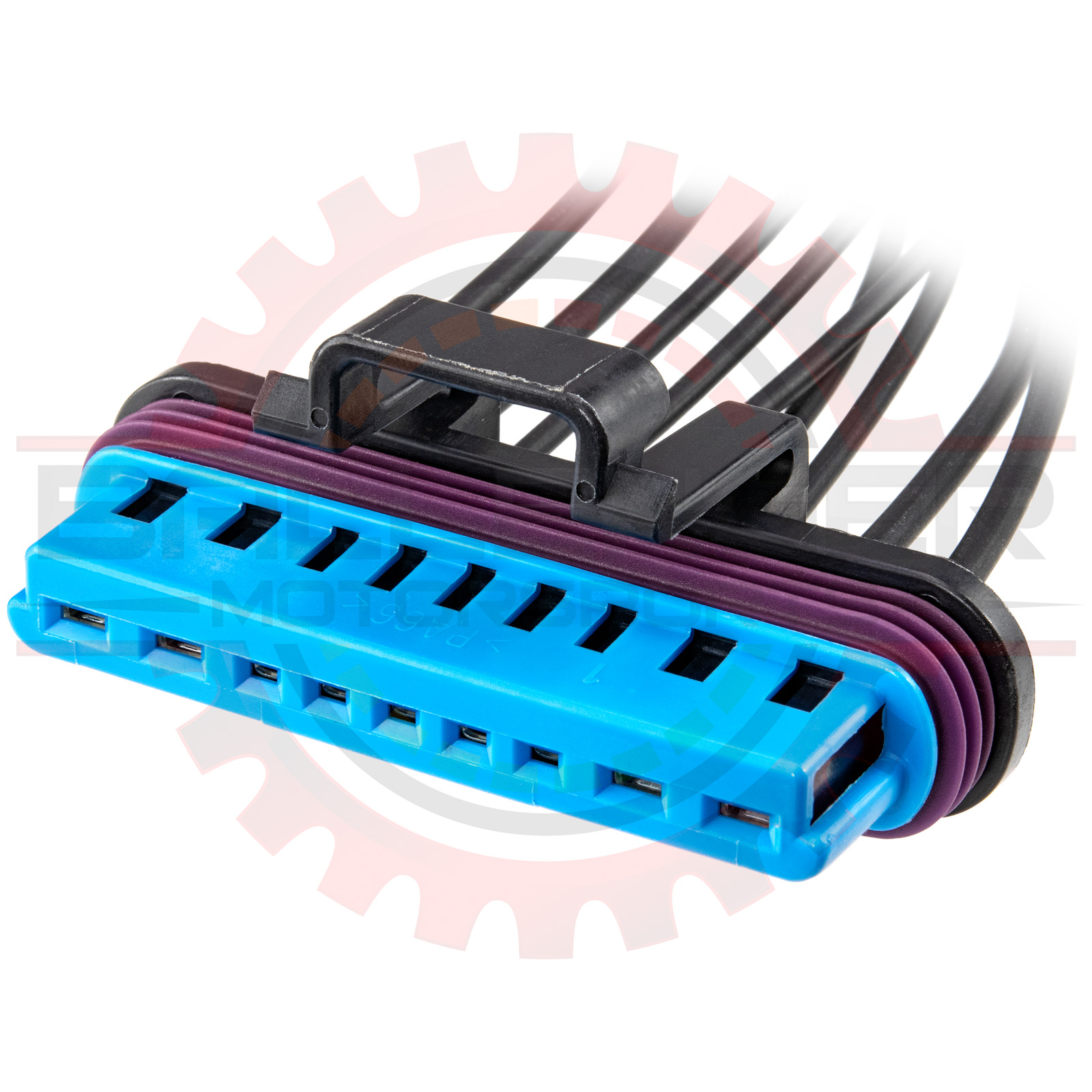

9 Way Hybrid Connector Plug Pigtail for F250/F350 Glow Plug and Diesel Injector Subharness Part # CONN-86109
9 Way Hybrid Connector Plug Pigtail for F250/F350 Glow Plug and Diesel Injector Subharness 9 Way Hybrid Connector Plug Pigtail for F250/F350 Glow Plug and Diesel Injector Subharness 9 Way Hybrid Connector Plug Pigtail for F250/F350 Glow Plug and Diesel Injector Subharness
Pricing
1 + $16.49
25 + $16.29
50 + $15.99
100 + $14.99
Information
Bmotorsports Part # CONN-86109
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

9 Way Hybrid Connector Plug Pigtail for F250/F350 Glow Plug and Diesel Injector Subharness. Connector pigtail. A completed pigtail is provided.

Used on International Navistar T444e 7.3L engines in over 1 million Ford trucks


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Connector Only CONN-1010639 Way Mixed 150/280 Connector for F250/F350 Glow Plug and Diesel Injector Subharness
GT150 Terminals CONN-56456GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
GT280 Terminals CONN-56657GM Delphi / Packard - GT 280 Female Terminal, 16-12 gauge [1.5-3.00mm2] (Tin/Brass)
GT150 Seals CONN-56555GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
GT280 Seals CONN-56756GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
GT150 Cavity Plug CONN-56557GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
GT280 Cavity Plug CONN-56759GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
Connector Kit CONN-761099 Way Mixed 150/280 Connector Plug Kit for F250/F350 Glow Plug and Diesel Injector Subharness
Connector Pigtail CONN-861099 Way Hybrid Connector Plug Pigtail for F250/F350 Glow Plug and Diesel Injector Subharness

Applications

Applications:

  • International Navistar T444e Glow plug subharness connector
  • International Navistar T444e Injector subharness connector
  • Many applications not listed


Specifications

Parameter Value
Number of Ways9
GenderPlug/Male
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 50 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 5 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
16AWG Automotive TXL Wire Black» 4 x 16AWG Automotive TXL Wire Black
Part # WIRE-00460s
GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )» 5 x GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
Part # CONN-56456
GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )» 5 x GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Part # CONN-56555
GM Delphi / Packard - GT 280 Female Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)» 4 x GM Delphi / Packard - GT 280 Female Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
Part # CONN-56656
GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge» 4 x GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
Part # CONN-56756
9 Way Mixed 150/280 Connector for F250/F350 Glow Plug and Diesel Injector Subharness» 1 x 9 Way Mixed 150/280 Connector for F250/F350 Glow Plug and Diesel Injector Subharness
Part # CONN-101063
