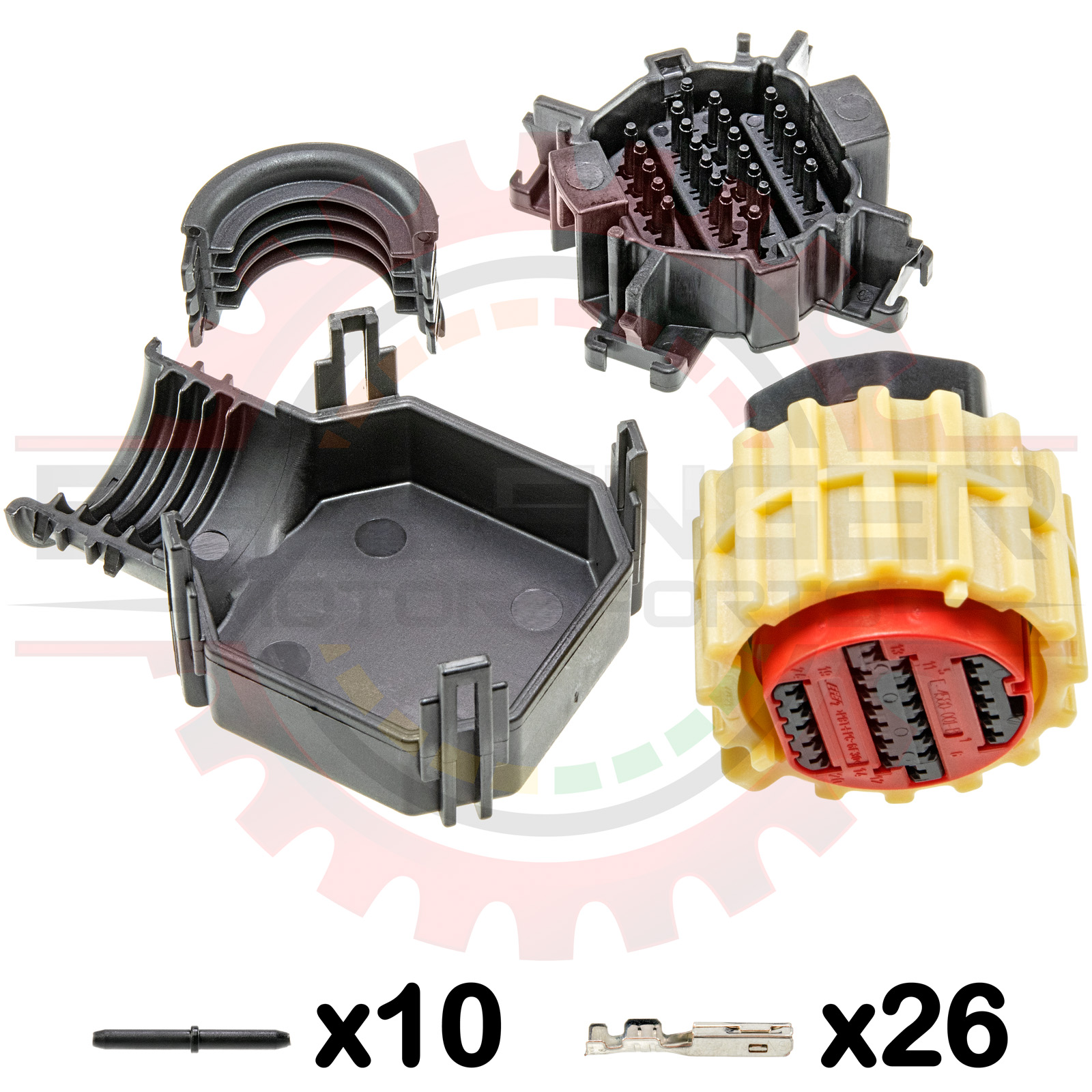

24 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit Part # CONN-76225
24 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit 24 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit 24 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit 24 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit
Pricing
1 + $89.99
50 + $75.99
Information
Bmotorsports Part # CONN-76225
Availability In Stock
Shipping Weight 0.2 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

24 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit. Connector kit. Terminals, seals, & all required parts for assembly are included. Pigtail and wiring assemblies available upon request.

1000/2000 4th Gen 24 Way Transmission Connector Kit.




  • Allison: 29543039
  • St. Clair: 300277


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminal CONN-100164Gold Plate Molex Female Terminals for Allison 3k/4k Transmission Connector
Cavity Plug CONN-56158GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
Connector Kit CONN-7622524 Way Allison 1K / 2K ( Gen 4 ) Heavy Duty Transmission Connector kit
Connector Pigtail CONN-86225

Specifications

Parameter Value
Number of Ways24
GenderPlug/Male
Terminal Size1.5mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge18


Applications

Allison: 29543039
St. Clair: 300277

This product contains the following items:
GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)» 10 x GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
Part # CONN-56158
Corrugated / Convolute Capture Bracket for Allison 3k/4k Transmission Connector (bottom half)» 1 x Corrugated / Convolute Capture Bracket for Allison 3k/4k Transmission Connector (bottom half)
Part # CONN-100160
Gold Plate Molex Female Terminals for Allison 3k/4k Transmission Connector» 26 x Gold Plate Molex Female Terminals for Allison 3k/4k Transmission Connector
Part # CONN-100164
Allison 1k/2k Transmission Connector» 1 x Allison 1k/2k Transmission Connector
Part # CONN-100671
Allison 1k/2k Transmission rear connector lock» 1 x Allison 1k/2k Transmission rear connector lock
Part # CONN-100672
EPC 90 degree wire dress cover for Allison 1k/2k connector» 1 x EPC 90 degree wire dress cover for Allison 1k/2k connector
Part # CONN-100673
