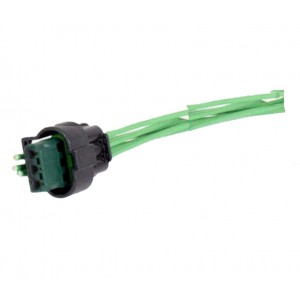

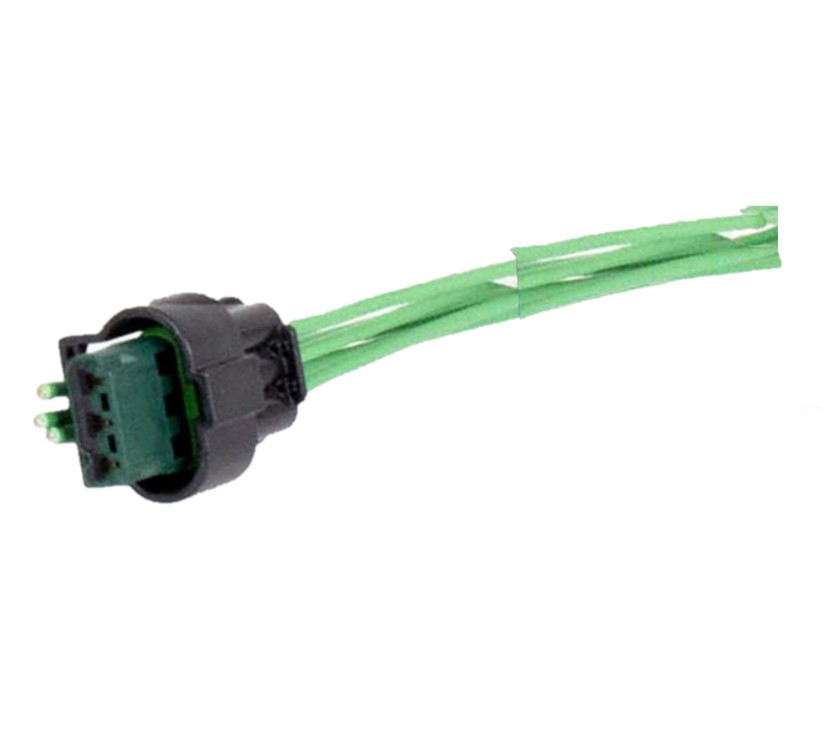

3 Way Plug Connector Pigtail with D Keyway Ford Applications	Part # CONN-86350

Pricing
1 +	$22.99
5 +	$21.99
10 +	$19.99
25 +	$18.99
100 +	$15.99
Information
Bmotorsports Part #	CONN-86350
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way Plug Connector Pigtail with D Keyway Ford Applications. A completed pigtail is provided with 12 inch wire leads ready to splice onto harnesses.
Please note: There are a few versions of this connector utilizing a slightly different terminal variation.
Used on keyway D variant ignition coil applications on some Ford applications, and more not listed here. Often times one of the three cavities (normally the middle) is blocked off in the connector mold. you can do the same with a cavity plug in the middle of this to "create" EU5T-14A464-ACA-001
Used for Motorcraft pigtail number WPT1602

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-101358	3 Way Connector Plug with D Keyway Ford Applications
Terminals	CONN-101551	Sumitomo US Sealed Series 1.2mm Female Terminal
Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Cavity Plug	CONN-56557	GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
Connector Kit	CONN-76350	3 Way Plug Connector Kit with D Keyway Ford Applications
Connector Pigtail	CONN-86350	3 Way Plug Connector Pigtail with D Keyway Ford Applications
Mating Connectors
Connector Only	CONN-
Terminals	CONN-100714	Male Terminal for C7 Corvette oxygen sensor Connector Receptacle 20-18AWG (0.5 - 0.8mm2)
Seals	CONN-00193	Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor
Connector Kit	CONN-
Connector Pigtail	CONN-

Applications

Applications:

Ford Mustang GT500 Supercharged 5.2L Ignition coil connector
Ford Coyote Supercharged 5.2L Ignition coil connector
Ford # EU5T-14A464-ACA-000
Also works as Ford # EU5T-14A464-ACA-001 when a cavity plug is used in position 2

Specifications

Parameter Value
Number of Ways 3
Gender Receptacle/Female
Terminal Size 1.2mm
Terminal Type Flat
Min. Wire Gauge 24
Max. Wire Gauge 18

This product contains the following items:
	» 1 x Labor $0.25/minute Part # LABR-00001
	» 3 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 3 x GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge ) Part # CONN-56555
	» 1 x 3 Way Connector Plug with D Keyway Ford Applications Part # CONN-101358
	» 3 x Sumitomo US Sealed Series 1.2mm Female Terminal Part # CONN-101551
