Deutsch DTM 8 way plug assembly, gray	Part # CONN-100111

Pricing
1 +	$5.49
5 +	$5.29
25 +	$4.99
50 +	$4.75
Information
Bmotorsports Part #	CONN-100111
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Deutsch / Amphenol DTM/ATM 8 way plug assembly, gray. Connector and Lock ONLY. Terminals not included.

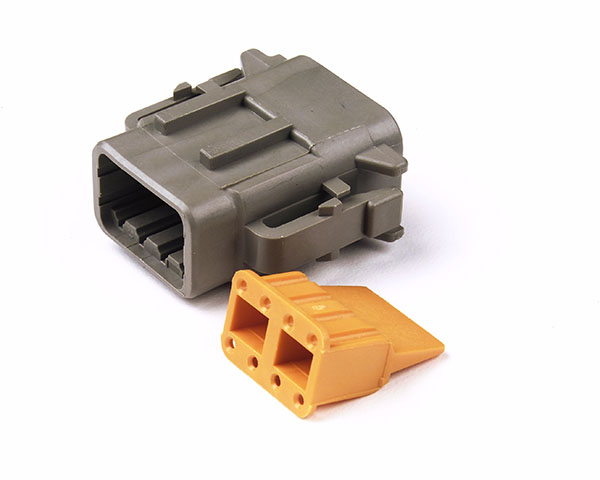

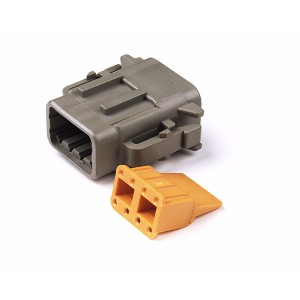

Includes Deutsch DTM 8 way plug, gray and Deutsch DTM 8 way plug wedgelock, orange

This plug connects to the NTK AFX, Ballenger Motorsports AFR500 and AFR500v2. Also used as the mating (harness side) connection to the ECM 1001A-2 Oxygen Sensor in the ECM AFM1500 AFR/O2/Lambda kit.

Uses Female Size 20 contacts from Deutsch / Amphenol.

The Deutsch / Amphenol DTM / ATM connection system is perfect for inline subharness connections, custom patch harnesses, sensor extensions, used in high temperature and high vibration environments.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminal	CONN-100090	Deutsch DTM Size 20 Solid Socket Female Nickel Plated Terminal, 0.5mm2 (20AWG)
Terminal	CONN-100025	Deutsch DTM Size 20 Stamped & Formed Socket Female Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Connector Plug	CONN-100111	Deutsch DTM 8 way plug assembly, gray
Connector Kit	CONN-76189	Deutsch DTM/ATM 8 Way Connector Plug Kit
Connector Pigtail	CONN-86189	Deutsch DTM/ATM 8 Way Connector Plug Pigtail
Mating Parts
Terminal	CONN-100089	Deutsch DTM Size 20 Solid Socket Male Nickel Plated Terminal, 0.5mm2 (20AWG)
Terminal	CONN-100088	Deutsch DTM series Size 20 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Connector Plug	CONN-100114	Deutsch DTM 8 way receptacle assembly, gray
Connector Kit	CONN-76190	Deutsch DTM/ATM 8 Way Connector Receptacle Kit
Connector Pigtail	CONN-86190	Deutsch DTM/ATM 8 Way Connector Receptacle Pigtail
Mating Parts Kit
Mating Parts Kit	CONN-200055	Deutsch DTM/ATM 8 Way Mating Pair Kit
Master Kit
Master Connector Kit	CONN-100944	Deutsch DTM / ATM Master Connector Kit w/ Steel Case

Specifications

Parameter Value
Number of Ways 8
Gender Plug/Male
Terminal Size 1mm
Terminal Type Round
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 1 x Deutsch DTM 8 way plug, gray Part # CONN-100109
	» 1 x Wedgelock for Deutsch DTM 8 way plug Part # CONN-100110
