Deutsch DTM/ATM 3 Way Connector Receptacle Kit	Part # CONN-76184

Pricing
1 +	$5.99
Information
Bmotorsports Part #	CONN-76184
Availability	In Stock
Shipping Weight	0.03 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Deutsch DTM/ATM 3 Way Receptacle Kit. Connector Kit with housing assembly, terminals, and seals are included.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminal	CONN-100089	Deutsch DTM Size 20 Solid Socket Male Nickel Plated Terminal, 0.5mm2 (20AWG)
Terminal	CONN-100088	Deutsch DTM series Size 20 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Connector Plug	CONN-100087	Deutsch DTM 3 way receptacle assembly, gray
Connector Kit	CONN-76184	Deutsch DTM/ATM 3 Way Connector Receptacle Kit
Connector Pigtail	CONN-86184	Deutsch DTM/ATM 3 Way Connector Receptacle Pigtail
Mating Parts
Terminal	CONN-100090	Deutsch DTM Size 20 Solid Socket Female Nickel Plated Terminal, 0.5mm2 (20AWG)
Terminal	CONN-100025	Deutsch DTM Size 20 Stamped & Formed Socket Female Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Connector Plug	CONN-100028	Deutsch DTM 3 way plug assembly, gray
Connector Kit	CONN-75603	Deutsch DTM 3 way plug, gray, Kit
Connector Pigtail	CONN-85603	Deutsch DTM 3 way plug, gray Pigtail
Mating Parts Kit
Mating Parts Kit	CONN-200019	Deutsch DTM/ATM 3 Way Mating Pair Kit
Master Kit
Master Connector Kit	CONN-100944	Deutsch DTM / ATM Master Connector Kit w/ Steel Case

Specifications

Parameter Value
Number of Ways 3
Gender Receptacle/Female
Terminal Size 1mm
Terminal Type Round
Min. Wire Gauge 20
Max. Wire Gauge 16

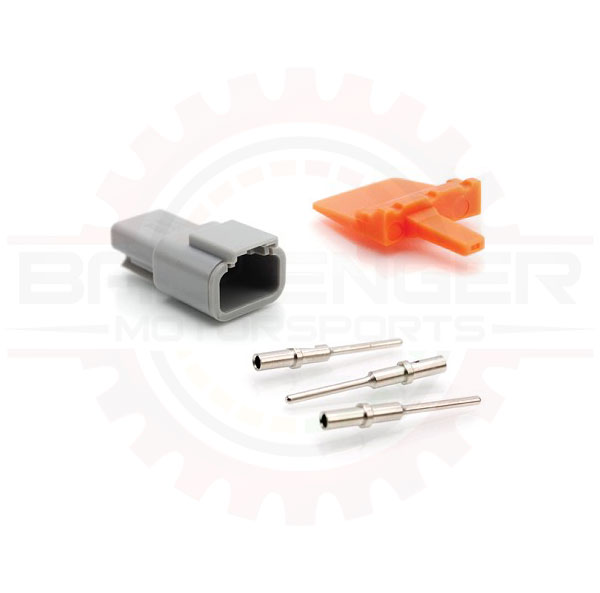

This product contains the following items:
	» 3 x Deutsch DTM Size 20 Solid Socket Male Nickel Plated Terminal, 0.5mm2 (20AWG) Part # CONN-100089
	» 1 x Deutsch DTM 3 way receptacle, gray Part # CONN-100085
	» 1 x Wedgelock for Deutsch DTM 3 way receptacle Part # CONN-100086
