Denso Injector Harness to EV6/EV14 Injector Adapter	Part # CONN-85977

Pricing
1 +	$9.99
50 +	$9.75
100 +	$9.25
Information
Bmotorsports Part #	CONN-85977
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

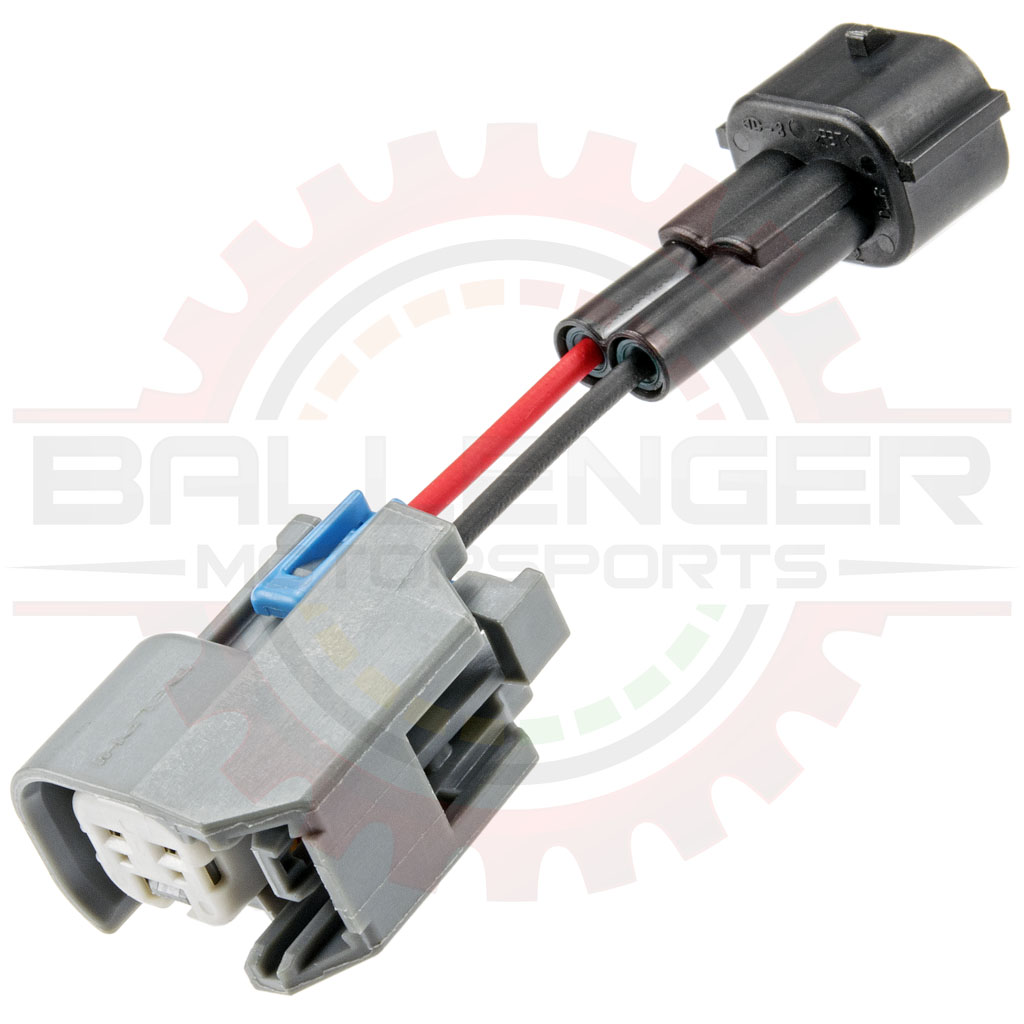

Denso Injector Harness to EV6/EV14 Injector Adapter. Fully assembled adapter included. 2 inch wire length.

Converts from a vehicle harness that used Denso injector connectors to EV6 & EV14 injectors. Many new high flow injectors utilize the EV6 / EV14 connector, making this a common choice for injectors on Japanese applications.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100451	Sumitomo HX / DL / SL Sealed Series Male terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100805	Denso Injector Side Connector Receptacle
Connector Kit	CONN-75973	Denso Injector Side Connector Receptacle Kit
Pigtail	CONN-85973	Denso Injector Side Connector Receptacle Pigtail
Associated Parts
Terminals	CONN-56456	GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Connector Housing	CONN-12558	GM Delphi / Packard - Bosch Type EV6/EV14 Injector Connector Assembly (Connector and TPA)
Connector Kit	CONN-75570	GM Delphi / Packard - Bosch Type EV6/EV14 Injector Connector Kit
Pigtail	CONN-85570	GM Delphi / Packard - Bosch Type EV6/EV14 Injector Connector Pigtail
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-11660	Sumitomo 2 Way TS Plug Housing for Denso Injectors, (Toyota # 90980-11153)
Connector Kit	CONN-75971	Sumitomo 2 Way TS Plug Kit for Denso Injectors, (Toyota # 90980-11153)
Pigtail	CONN-85971	Sumitomo 2 Way TS Plug Pigtail for Denso Injectors, (Toyota # 90980-11153)
Mating Parts
Terminals	CONN-11656	Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-11655	Nippon Denso Type Injector 2 way Connector ( connector only )
Connector Kit	CONN-75572	Nippon Denso Type Injector Connector Kit
Pigtail	CONN-85572	Nippon Denso Type Injector Connector Pigtail

Applications

Denso Toyota Fuel Injector Connector to EV6 / EV14 Adapter
Denso Lexus Fuel Injector Connector to EV6 / EV14 Adapter
Denso Subaru Fuel Injector Connector to EV6 / EV14 Adapter
Denso Mazda Fuel Injector Connector to EV6 / EV14 Adapter
Denso Nissan Fuel Injector Connector to EV6 / EV14 Adapter
Denso Mitsubishi Fuel Injector Connector to EV6 / EV14 Adapter
Fits millions of other sensor, injector, & solenoid applications

Specifications

Parameter Value
Number of Ways 2
Terminal Size 1.5mm
Terminal Type Flat
