Toyota Injector Harness to EV6/EV14 Injector Adapter	Part # CONN-85980

Pricing
1 +	$9.99
50 +	$9.75
100 +	$9.25
Information
Bmotorsports Part #	CONN-85980
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

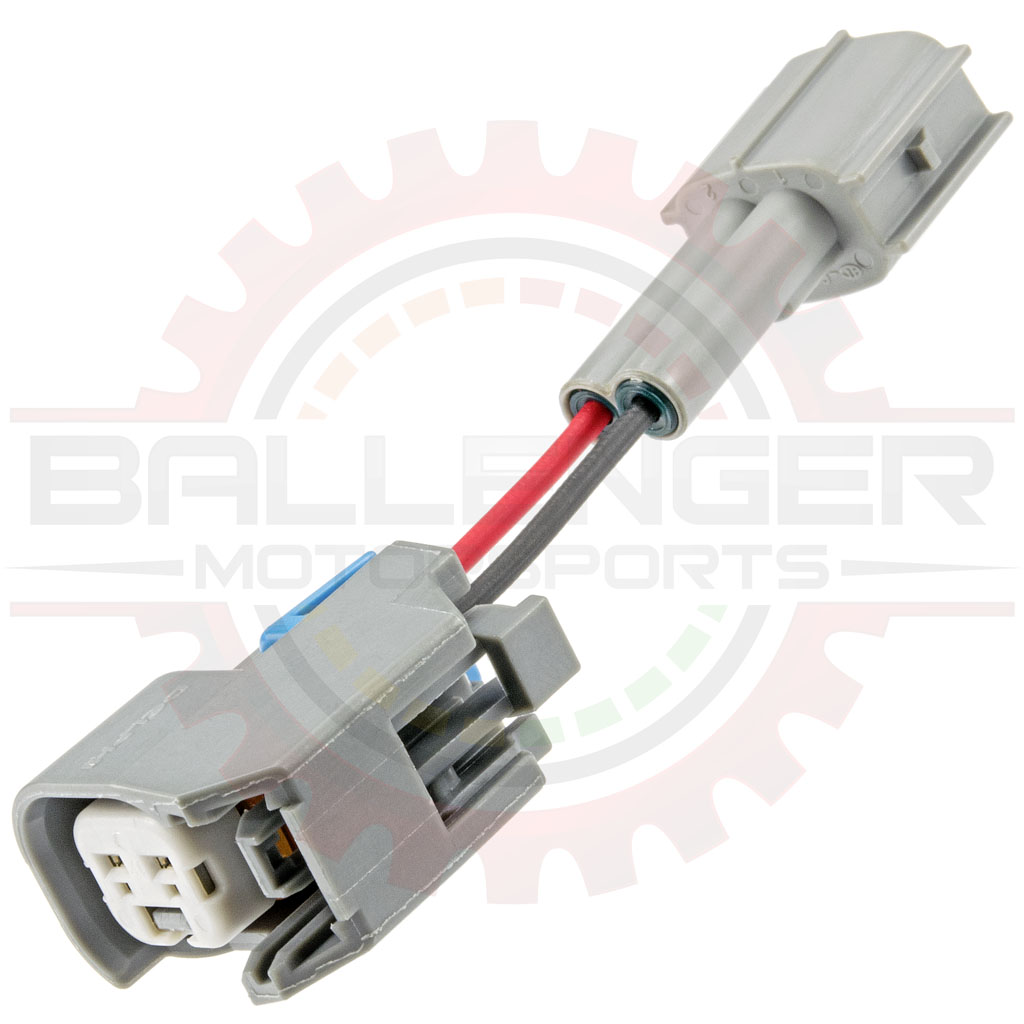

Toyota Injector Harness to EV6/EV14 Injector Adapter. Fully assembled adapter included. 2 inch wire length.

Converts from a vehicle harness that used Toyota injector connectors to EV6/EV14 injectors.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-56456	GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
Seals	CONN-56555	GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Connector Housing	CONN-12558	GM Delphi / Packard - Bosch Type EV6/EV14 Injector Connector Assembly (Connector and TPA)
Connector Kit	CONN-75570	GM Delphi / Packard - Bosch Type EV6/EV14 Injector Connector Kit
Pigtail	CONN-85570	GM Delphi / Packard - Bosch Type EV6/EV14 Injector Connector Pigtail
Associated Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100806	Toyota Injector Side Connector Receptacle
Connector Kit	CONN-75974	Toyota Style Injector & Coil Connector Mate Kit
Pigtail	CONN-85974	Toyota Style Injector & Coil Connector Mate Pigtail
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-11855	Toyota Style 2 way Injector Connector & Ignition Coil, Gray (connector only) - 90980-11875
Connector Kit	CONN-75757	2-way Toyota Style Injector Connector & Ignition Coil Connector Kit, Gray - 90980-11875
Pigtail	CONN-85757	2-way Toyota Style Injector Connector & Ignition Coil Connector Pigtail, Gray - 90980-11875

Applications

Toyota Fuel Injector Connector to EV6/EV14 Adapter
Lexus Fuel Injector Connector to EV6/EV14 Adapter

Specifications

Parameter Value
Number of Ways 2
Terminal Size 1.5mm
Terminal Type Flat

This product contains the following items:
	» 1 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 1 x 18AWG Automotive TXL Wire Red Part # WIRE-02459s
	» 2 x GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge ) Part # CONN-56456
	» 2 x GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge ) Part # CONN-56555
	» 2 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 1 x GM Delphi / Packard - EV6/EV14 Injector Plug Connector TPA Part # CONN-12557
	» 2 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
	» 1 x GM Delphi / Packard - Bosch Type 2-way EV6/EV14 Injector Connector Part # CONN-12555
	» 1 x Toyota Injector Side Connector Receptacle Part # CONN-100806
