Description

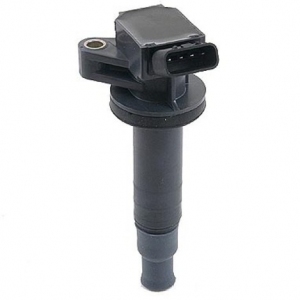

Toyota Coil on Plug (COP) PN 90919-02239 / 90080-19015 / 90080-19019

These Genuine Denso coils are so versatile and reliable that they are used in a host of aftermarket applications. A very popular use of these coils is to trade them for the stock coils on cars like turbocharged Miatas & Mitsubishi EVOs. This Coil on Plug option is a significant upgrade over the wasted spark system in such applications allowing for greater spark energy, greater reliability and simplistic packaging.

These smart coils have a rapid charge rate, high energy discharge and limit coil saturation to prevent damage with inappropriate dwell settings. The reliability, simple packaging, smart controls, rapid charge rates and high energy discharge make these coils nearly perfect for most applications. Only our IGNT-00172 GM Truck coils offer similar features with more power and more difficult packaging as a tradeoff.

Finally, these new genuine Toyota COPs are being offered new at a reasonable cost! See the simple pinout diagram in the drawing above for custom application needs. Parts are stamped with 90919-02239 which represents their US based manufacturing location.

Key Features:

• Genuine Denso Coils with exceptional reliability
• Smart Coil with onboard current limiting ignitor to prevent coil damage
• Fast coil charge times with low minimum dwell (perfect for high rpm, high power applications)
• Short minimum discharge times allow more time to be spent on coil charging. (perfect for high rpm, high power applications)
• Compact packaging for easy installation
• Coil on Plug Design for simplistic packaging in the cylinder head and valve cover.
• Complete single cylinder ignition system with electronics for dwell, current limited, etc helps reduce under hood electrical noise and simplifies installation

• Direct plug in replacement coils for a long list of Toyota applications (see Applications Tab)
• All custom applications looking for a high output coil that fits above the spark plugs
• ACDelco E516D
• GM 88970216
• Toyota 90919-02239
• Toyota 90080-19015
• Toyota 90080-19019

Mating Parts

Mating Parts:

• CONN-1003074 - Way Japanese coil on plug connector housing (Toyota # 90980-11885 , GM # 88974044 )
• CONN-75727 4 - Way Japanese coil on plug connector kit (Toyota # 90980-11885 , GM # 88974044 )
• CONN-85727 4 - Way Japanese coil on plug connector pigtail (Toyota # 90980-11885 , GM # 88974044 )

Specifications

Key Features:

• Genuine Denso Coils with exceptional reliability
• Smart Coil with onboard current limiting ignitor to prevent coil damage
• Fast coil charge times with low minimum dwell (perfect for high rpm, high power applications)
• Short minimum discharge times allow more time to be spent on coil charging. (perfect for high rpm, high power applications)
• Compact packaging for easy installation
• Coil on Plug Design for simplistic packaging in the cylinder head and valve cover.
• Complete single cylinder ignition system with electronics for dwell, current limited, etc helps reduce under hood electrical noise and simplifies installation

Applications

Applications:

• Direct plug in replacement coils for a long list of Toyota applications (see Applications Tab)
• All custom applications looking for a high output coil that fits above the spark plugs
• ACDelco E516D
• GM 88970216
• Toyota 90919-02239
• Toyota 90080-19015
• Toyota 90080-19019

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.
