2 Way Plug Kit for Japanese variable valve applications, (Toyota # 90980-11162)	Part # CONN-76007

Pricing
1 +	$6.99
25 +	$6.49
50 +	$6.25
100 +	$5.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-76007
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

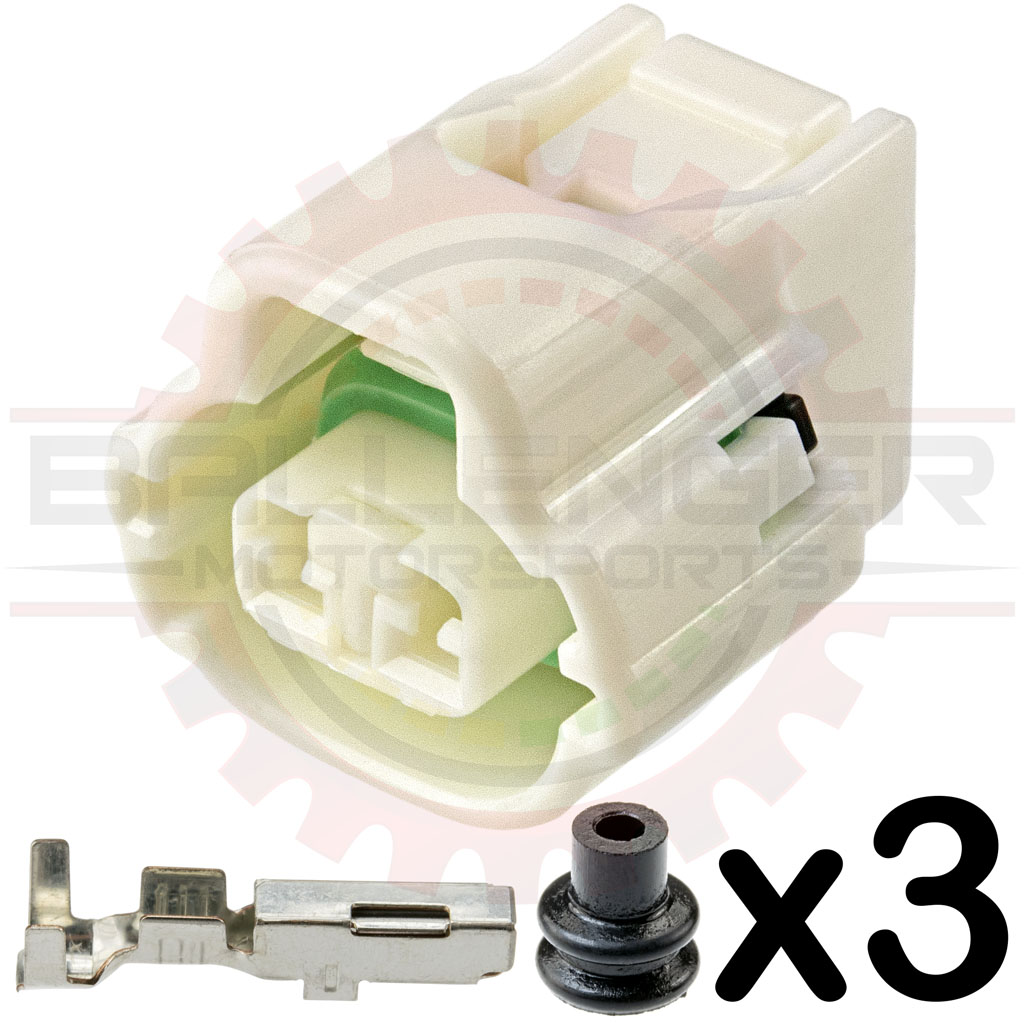

2 Way Plug Kit for Japanese applications, natural/white. Connector Kit. Terminals and seals ARE included.

Used on some Miata IACs (Idle Air Control).
also used for VVTi solenoids / cam phaser solenoids, ACIS solenoids on many Toyotas. Also used on some Honda air valve / solenoids

This plug is compatible with CONN-75859 and connects to devices which CONN-75859 fits.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100927	2 Way Plug Assembly for Japanese variable valve applications, (Toyota # 90980-11162)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-76007	2 Way Plug Kit for Japanese variable valve applications, (Toyota # 90980-11162)
Connector Pigtail	CONN-86007	2 Way Plug Pigtail for Japanese variable valve applications, (Toyota # 90980-11162)

Applications

Applications:

Miata IAC for some years
IAC on other Mazda vehicles include the Mazda Protege
Subaru AVCS on some models including Impreza WRX STI
Toyota Crank Sensor on some models
Toyota VVTi solenoid connector on some models
1MZFE / 1MZ VVTi solenoid connector
Lexus Crank Sensor on some models
1UZFE / 1UZ Crank Sensor on some models
Toyota # 90980-11162

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 3 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 2 Way Plug Assembly for Japanese variable valve applications, (Toyota # 90980-11162) Part # CONN-100927
