5 Way 090II Receptacle Connector Mate Kit to Toyota Subaru MAF	Part # CONN-76059

Pricing
1 +	$7.49
25 +	$7.19
100 +	$6.99
Information
Bmotorsports Part #	CONN-76059
Availability	In Stock
Shipping Weight	0.002 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

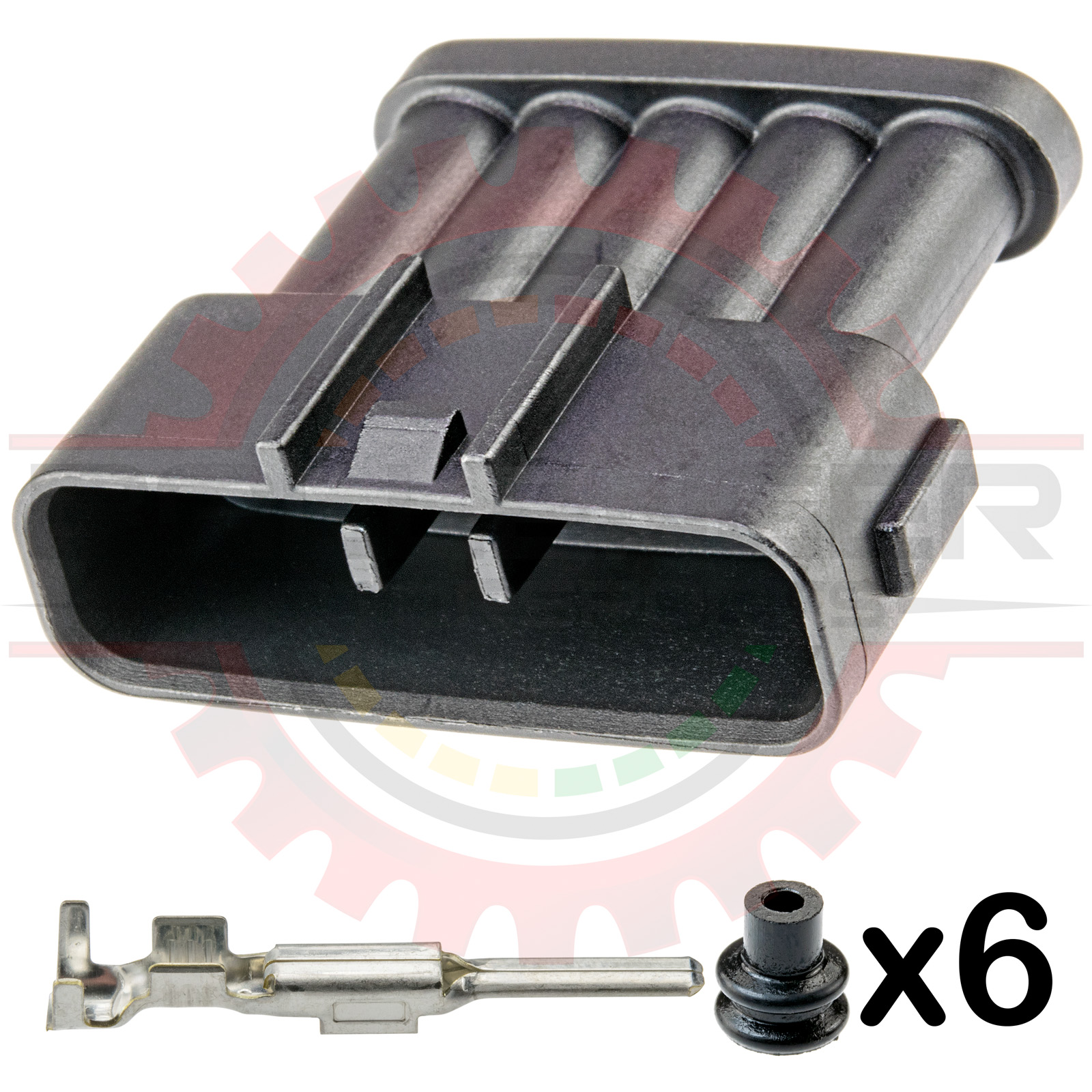

5 Way 090II Receptacle Connector Mate Kit to Toyota Subaru MAF. Connector kit. Terminals and seals are included.

This connector mates to the MAF connection allowing you to break out the air intake temperature signal to a remote IAT without cutting into the factory harness.
This connector also allows you to adapt your MAF sensor to a MAP or TMAP sensor for a true speed density conversion.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100984	5 Way 090II Receptacle Connector Mate to Toyota Subaru MAF
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-76059	5 Way 090II Receptacle Connector Mate Kit to Toyota Subaru MAF
Connector Pigtail	CONN-86059	5 Way 090II Receptacle Connector Mate Pigtail to Toyota Subaru MAF
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Mating Connectors
Connector Only	CONN-100680	5 Way 090II Plug Assembly for Subaru & Toyota MAF (Connector + Lock)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75825	5 Way Plug Kit for Subaru & Toyota MAF
Connector Pigtail	CONN-85825	5 Way Plug Pigtail for Subaru & Toyota MAF

Applications

Applications:

Toyota MAF mate found on many vehicles 1994-2005
Subaru MAF mate found on many vehicles 1999-2004
Many other Applications not listed

Specifications

Parameter Value
Number of Ways 5
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 6 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 6 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
	» 1 x 5 Way 090II Receptacle Connector Mate to Toyota Subaru MAF Part # CONN-100984
