Description

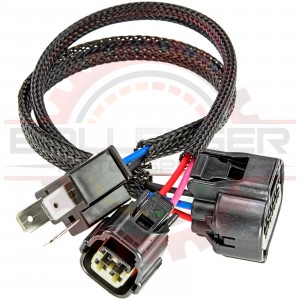

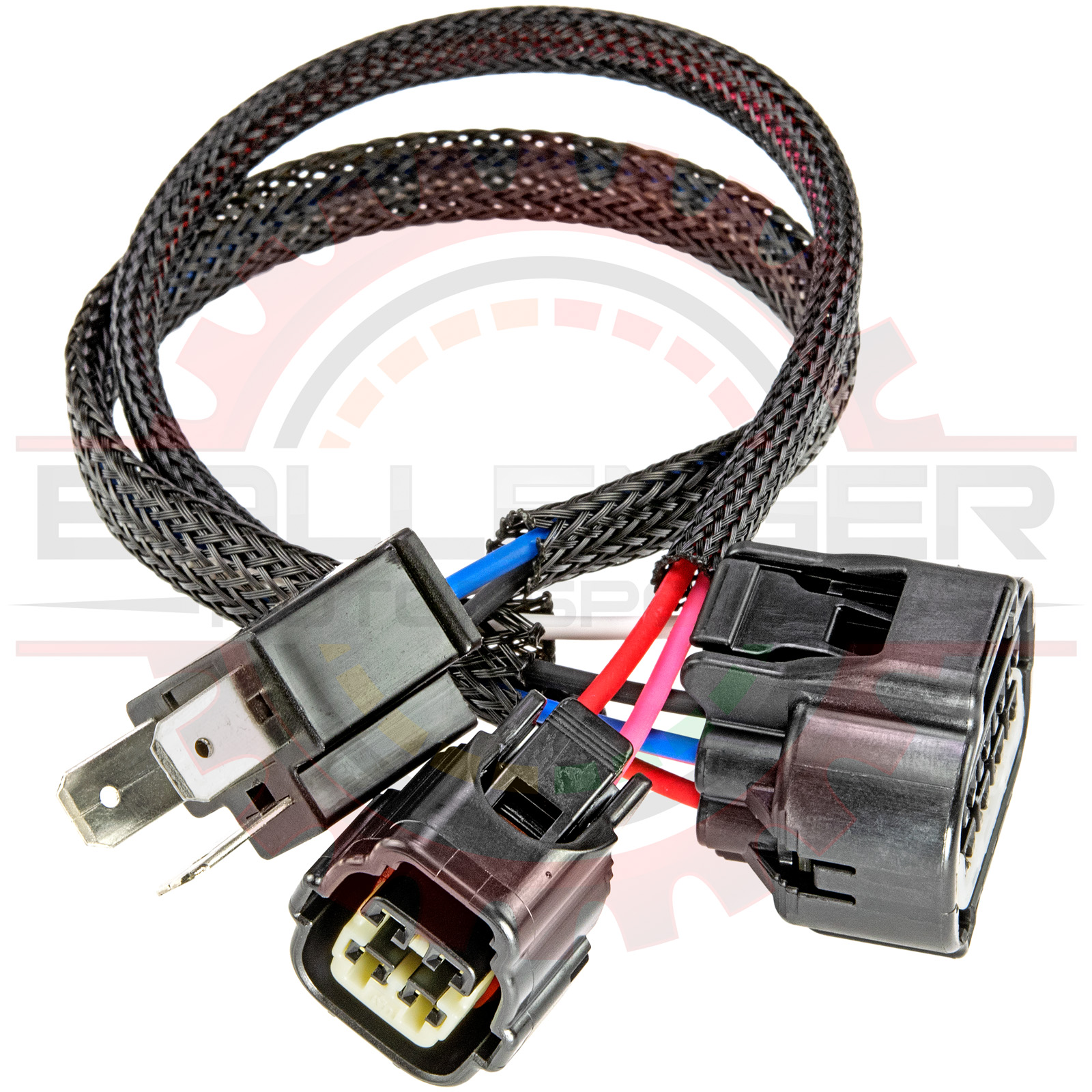

Headlight harness. This allows you to use a new 2018 Tundra 8-pin LED Headlight, Plug and Play! No relay harness required as this plugs directly into any H4 or H6054 bulb connector! This is true Plug and Play with all trim level 2014-2017 Tundras for use with 2018 LED headlamps! Standard length of 1 foot.

You will need 1 CONN-86255 harness for the drivers side and 1 for the passenger side light, for a total of quantity 2 per vehicle.

***For SR/SR5/Limited/Pro trim level Tundra's, and trucks that do not have factory DRL's (Daytime running lights), more work is required to enable DRL's, and sidemarker bulbs for 100% functionality. Please check the following community forum link for more information regarding these other trim levels and factory non-DRL trucks. ***

16AWG automotive TXL wire construction, Hi-temp Nylon Braided sleeving, genuine OEM connector plugs, seals, cavity plugs & terminals, manufactured and assembled at our facility in the US.

Associated & Mating Parts

Applications

• 2014-2017 Toyota Tundra 1794/Platinum models with factory LED DRLs Headlight Retrofit to
• 2018 Toyota Tundra LED Headlamp

Specifications

Parameter	Value
Terminal Size	2.3mm
Terminal Type	Flat
Min. Wire Gauge	20
Max. Wire Gauge	16
