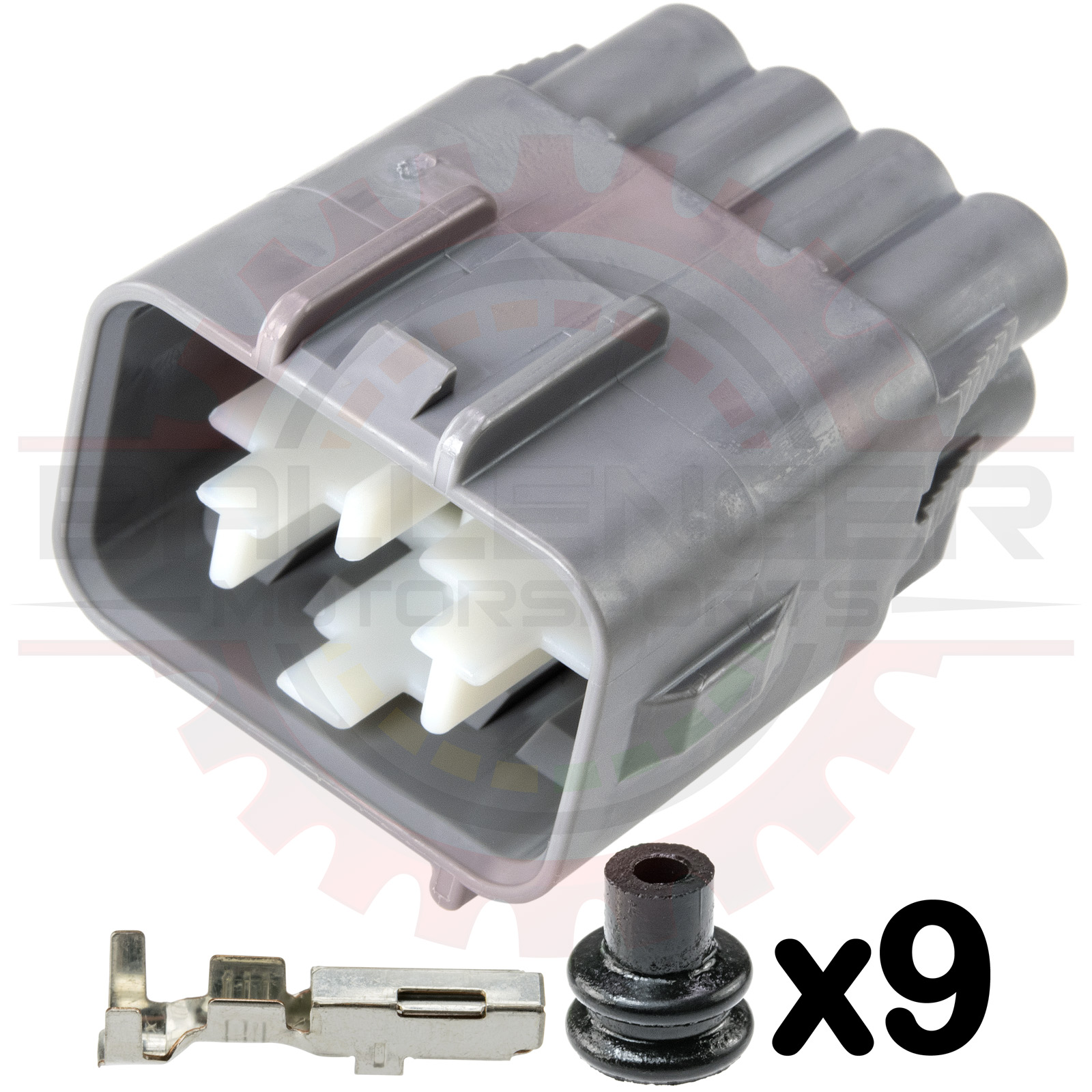

8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896 Part # CONN-76239
8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896 8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896 8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896
Pricing
1 + $10.49
25 + $9.49
50 + $9.29
Information
Bmotorsports Part # CONN-76239
Availability In Stock
Shipping Weight 0.15 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896. Connector kit. Terminals and seals included.


Associated & Mating Parts

Relationship Part # Description
Mating Parts
20-16 AWG Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
22-20 AWG Terminals CONN-11857Yazaki Female Terminals for 2 way 090 IAT / MAT Connector ( 22 - 20 AWG )
22-18 AWG Seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
20-16 AWG Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Cavity Plug CONN-100550Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Housing CONN-1010178 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897
8 way Connector Kit CONN-760678 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897
8 way Connector Pigtail CONN-860678 Way Japanese Connector Plug Pigtail for Headlight Applications Toyota # 90980-10897
Headlight Harness CONN-86070Tundra LED Retrofit Headlight harness
Associated Parts
20-16 AWG Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
22-20 AWG Terminals CONN-100059Yazaki TS090 II Male Terminal ( 22 - 20 AWG )
22-18 AWG Seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
20-16 AWG Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Cavity Plug CONN-100550Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Housing CONN-1010998 Way Japanese Connector Receptacle for Headlight Applications Toyota # 90980-10896
Receptacle Kit CONN-762398 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896
Pigtail CONN-86239

Applications

  • 2018 Toyota Tundra LED Headlamp mate connector
  • connector for some Subaru light harnesses


Specifications

Parameter Value
Number of Ways8
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge16

This product contains the following items:
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 9 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )» 9 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Part # CONN-100069
8 Way Japanese Connector Receptacle for Headlight Applications Toyota # 90980-10896» 1 x 8 Way Japanese Connector Receptacle for Headlight Applications Toyota # 90980-10896
Part # CONN-101099
