Toyota 6 Way DI Driver Connector Mate, Black (connector only) Part # CONN-76283

Toyota 6 Way DI Driver Connector Mate, Black (connector only) Toyota 6 Way DI Driver Connector Mate, Black (connector only) Toyota 6 Way DI Driver Connector Mate, Black (connector only)
Pricing
1 + $12.49
25 + $11.99
100 + $10.49
1000 + $5.49
Information
Bmotorsports Part # CONN-76283
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

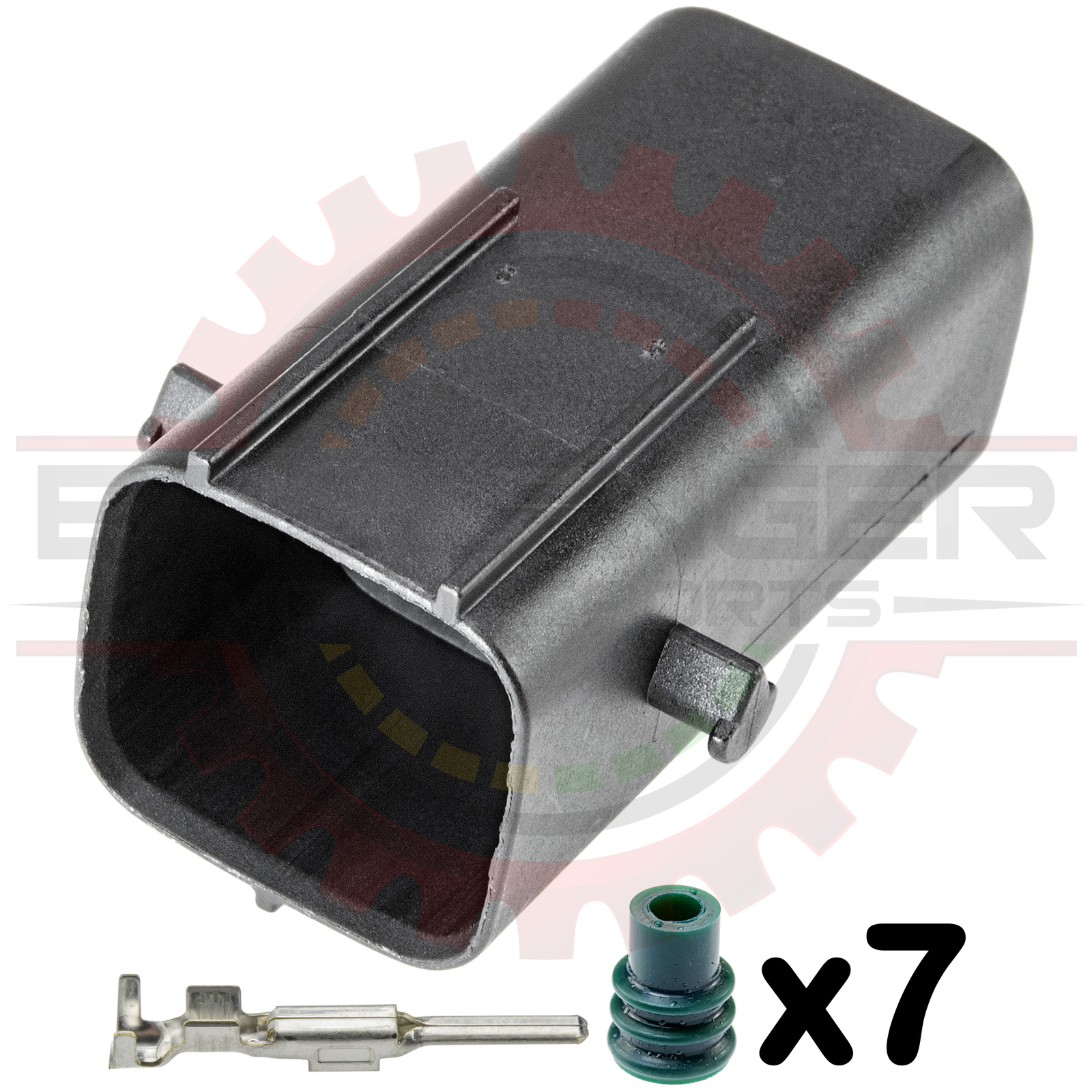

Toyota 6 Way DI Driver Connector Mate Kit. Connector Kit. Terminals and seals included.
This connector mates to Toyota #'s 90980-12655 and 90980-12656, connectors for Direct injection driver modules for D4S system and Diesel injector driver modules.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-101371Toyota 6 Way DI Driver Connector Mate, Black (connector only)
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit CONN-76283Toyota 6 Way DI Driver Connector Mate, Black (connector only)
Connector Pigtail CONN-86283
Mating Parts
Black 6 way Connector CONN-101402
Grey Keyway 6 Position Connector CONN-101403
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)

Specifications

Parameter Value
Number of Ways6
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16



This product contains the following items:
