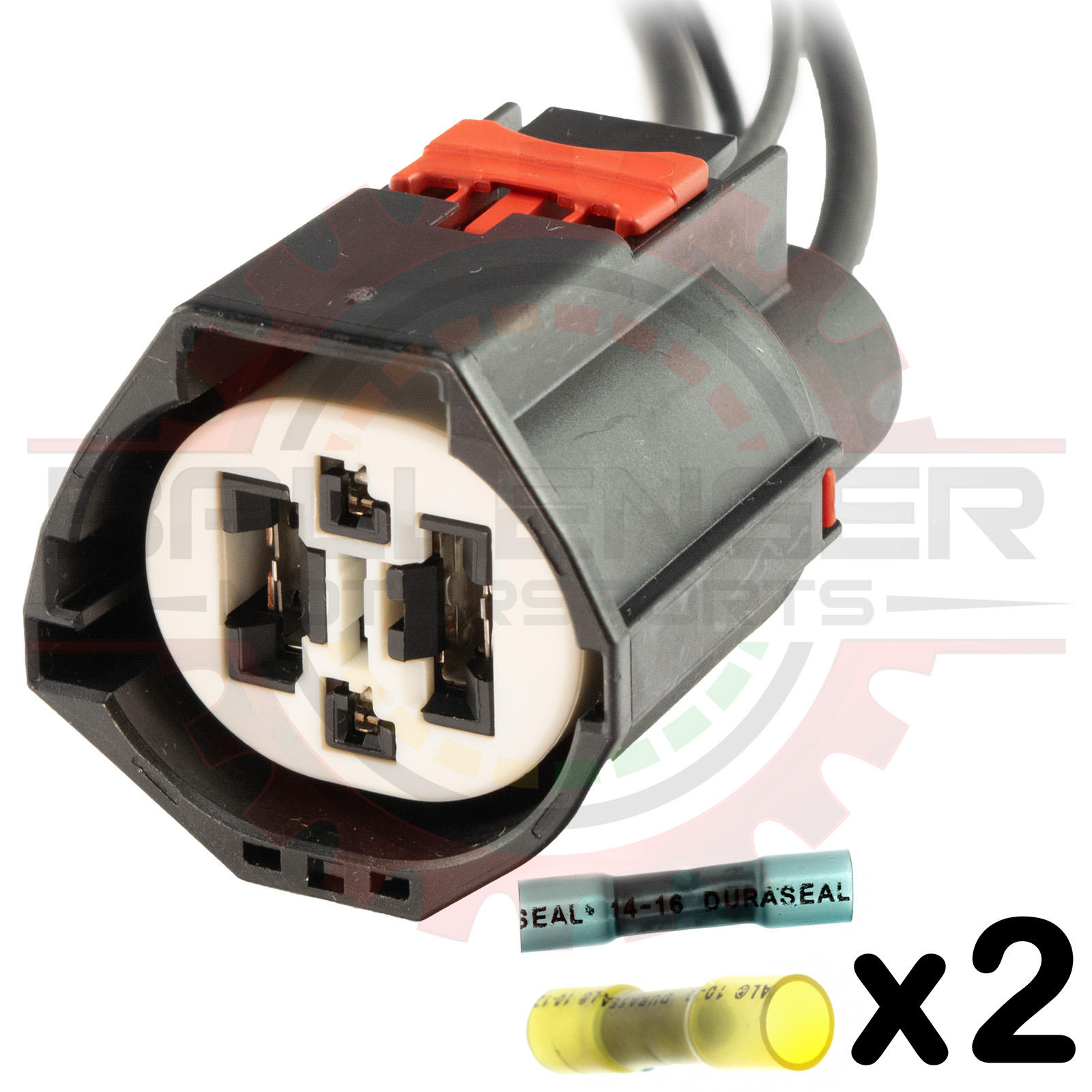

4 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open Part # CONN-86308
4 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open 4 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open 4 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open
Pricing
1 + $19.99
Information
Bmotorsports Part # CONN-86308
Availability In Stock
Shipping Weight 0.1 Lbs.
Shipping Location VA   (Shipping Info)
Options
Wire Size
Ship Estimator Quantity:

Description

4 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open. Connector Pigtail. A completed pigtail with 12" wire leads is provided.

Wire Size option refers to the two larger positions. You can select 12AWG or 10AWG wire.


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Terminals CONN-101483Female 9.5mm Terminal for 10-12AWG
Terminals CONN-100481Ford / Yazaki 1.5 Terminal, 18-16AWG
Seals CONN-101484Yazaki 375 Cable seal, white for 8-10AWG
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only CONN-1014904 Way Hybrid 375+060 Yazaki Connector for SPAL PWM Cooling fans, all positions open
Connector Kit CONN-763084 Way Hybrid 375+060 Yazaki Connector Kit for SPAL PWM Cooling fans, all positions open
Connector Pigtail CONN-863084 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open
Mating Connectors
Terminals CONN-101492Yazaki 375 Male Terminal for 10-8AWG
Terminals CONN-100986Ford / Yazaki 1.5 Male Terminal, 18-16AWG
Seals CONN-101485Yazaki 375 Cable seal, red for 12-10AWG
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Cavity Plug CONN-56059GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Receptacle Only CONN-1014934 Way Hybrid 375+060 Yazaki Receptacle, all positions open.
Receptacle Kit CONN-764024 Way Hybrid 375+060 Yazaki Receptacle Kit, all positions open.
Receptacle Pigtail CONN-864024 Way Hybrid 375+060 Yazaki Receptacle Pigtail, all positions open.

Specifications

Parameter Value
Number of Ways4
GenderReceptacle/Female
Terminal Size1.5mm
Terminal Size (Secondary)9.5mm
Terminal TypeFlat
Min. Wire Gauge18
Max. Wire Gauge10

This product contains the following items:
Labor $0.25/minute» 20 x Labor $0.25/minute
Part # LABR-00001
12 - 10 gauge heatshrink butt connector» 2 x 12 - 10 gauge heatshrink butt connector
Part # CONN-66655
16 - 14 gauge heatshrink butt connector» 2 x 16 - 14 gauge heatshrink butt connector
Part # CONN-66656
16AWG Automotive TXL Wire Black» 2 x 16AWG Automotive TXL Wire Black
Part # WIRE-00460s
GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white» 2 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Part # CONN-56057
12AWG Automotive TXL Wire Black» 2 x 12AWG Automotive TXL Wire Black
Part # WIRE-00462s
Ford / Yazaki 1.5 Terminal, 18-16AWG» 2 x Ford / Yazaki 1.5 Terminal, 18-16AWG
Part # CONN-100481
Yazaki 375 Cable seal, red for 12-10AWG» 2 x Yazaki 375 Cable seal, red for 12-10AWG
Part # CONN-101485
Yazaki 375 Female Terminal, Tin plated for 3mm², 12AWG» 2 x Yazaki 375 Female Terminal, Tin plated for 3mm², 12AWG
Part # CONN-101483
4 Way Hybrid 375+060 Yazaki Connector for SPAL PWM Cooling fans, all positions open» 1 x 4 Way Hybrid 375+060 Yazaki Connector for SPAL PWM Cooling fans, all positions open
Part # CONN-101490
