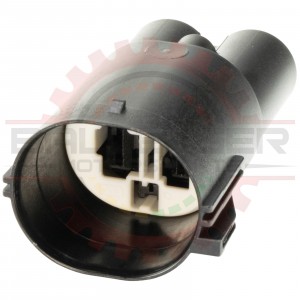

4 Way Hybrid 375+060 Yazaki Receptacle, all positions open.	Part # CONN-101493

Pricing
1 +	$14.99
Information
Bmotorsports Part #	CONN-101493
Availability	In Stock
Shipping Weight	0.052 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

4 Way Hybrid 375+060 Yazaki Receptacle, all positions open. Connector Only. Terminals and seals Not included.

Associated & Mating Parts

Relationship	Part #	Description
Associated 9.5mm Parts
10 AWG 9.5 Terminals	CONN-101492	Yazaki 375 Male Terminal for 10-8AWG
8-10 AWG Seals	CONN-101484	Yazaki 375 Cable seal, white for 8-10AWG
All Positions Open, Receptacle Only	CONN-101493	4 Way Hybrid 375+060 Yazaki Receptacle, all positions open.
All Positions Open, Receptacle Kit	CONN-76402	4 Way Hybrid 375+060 Yazaki Receptacle Kit, all positions open.
All Positions Open, Receptacle Pigtail	CONN-86402	4 Way Hybrid 375+060 Yazaki Receptacle Pigtail, all positions open.
2 Positions Open, Both 060 Blocked, Receptacle Only	CONN-101491	2 Way Hybrid 375+060 Yazaki Receptacle, Both 060 positions blocked
Associated 1.5mm Parts
20-16 AWG Terminals	CONN-100986	Ford / Yazaki 1.5 Male Terminal, 18-16AWG
20-16 AWG Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Mating 9.5mm Parts
12 AWG Terminals	CONN-101483	Female 9.5mm Terminal for 10-12AWG
8-10 AWG 9.5 Terminals	CONN-101482	Yazaki 375 Female Terminal, Tin plated for 5-8mm², 10-8AWG
12 AWG Seals	CONN-101484	Yazaki 375 Cable seal, white for 8-10AWG
8-10 AWG Seals	CONN-101485	Yazaki 375 Cable seal, red for 12-10AWG
All Positions Open Connector Only	CONN-101490	4 Way Hybrid 375+060 Yazaki Connector for SPAL PWM Cooling fans, all positions open
3 Positions Open, 1 Blocked Connector Only	CONN-101481	4 Way Hybrid 375+060 Yazaki Connector for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked
All Positions Open, Connector Kit	CONN-76308	4 Way Hybrid 375+060 Yazaki Connector Kit for SPAL PWM Cooling fans, all positions open
All Positions Open, Connector Pigtail	CONN-86308	4 Way Hybrid 375+060 Yazaki Connector Pigtail for SPAL PWM Cooling fans, all positions open
3 Positions Open, 1 Blocked Kit	CONN-76307	4 Way Hybrid 375+060 Yazaki Connector Kit for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked
3 Positions Open, 1 Blocked Pigtail	CONN-86307	4 Way Hybrid Connector Pigtail for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked
Mating 1.5mm Parts
Terminals	CONN-100481	Ford / Yazaki 1.5 Terminal, 18-16AWG
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug

Specifications

Parameter Value
Number of Ways 4
Gender Receptacle/Female
Terminal Size 9.5mm
Terminal Size (Secondary) 1.5mm
Terminal Type Flat
Terminal Type (Secondary) Flat

Used In

Part #	Description
CONN-76402	4 Way Hybrid 375+060 Yazaki Receptacle Kit, all positions open.
CONN-86402	4 Way Hybrid 375+060 Yazaki Receptacle Pigtail, all positions open.
