Home » Shop » Kostal » 4 Way Connector Plug Pigtail for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors

4 Way Connector Plug Pigtail for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors	Part # CONN-86029

Pricing
1 +	$9.49
25 +	$8.89
50 +	$8.29
100 +	$7.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-86029
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
Options
Wire Size
	Quantity:

Description

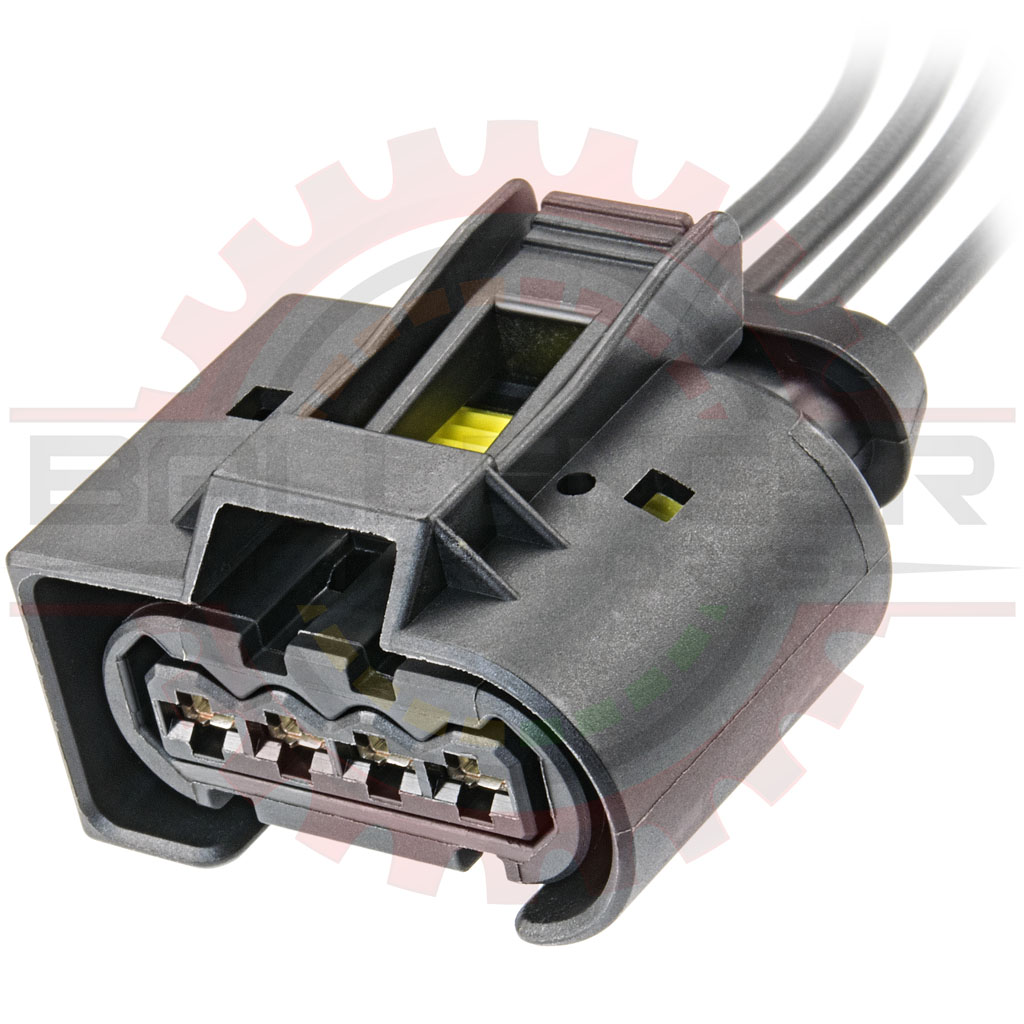

4 Way Connector Plug Pigtail for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors. Connector Pigtail. Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

The drop down option for 14AWG will have 14AWG on pins 1+4 for continuous waterpump operation, and 18AWG on pins 2+3 for signal wires.
The standard 16AWG option is for Ignition coil applications. 18AWG optional available at no extra cost.

Used on a wide variety of BMW, Volvo, and Volkswagen Waterpumps, Pierburg CWA200 water pump, and Porsche Cayenne Turbo BERU ZSE 042 Ignition coils.

These connectors are commonly used for Porsche 944S BERU coil conversions with aftermarket ECU's.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100963	4 Way Connector Plug for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors
20-16AWG Terminals	CONN-11581	Kostal 2.8mm SLK Female Terminal 0.75-1.0mm2 (18-16 AWG)
16-14AWG Terminals	CONN-11586	Terminals for Kostal 2.8 Connectors, 14-12 AWG ( 2mm2 - 3mm2)
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Connector Kit	CONN-76029	4 Way Connector Plug Kit for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors
Connector Pigtail	CONN-86029	4 Way Connector Plug Pigtail for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors
Mating Connectors
Terminals	CONN-100886	Male Terminals for Kostal SLK 2.8mm Housings Plug, 0.75-1.0mm2 (18-16 AWG)
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white

Applications

Applications:

2007 - 2010 BMW X5, X3 waterpump
2006 BMW 325i, 325xi, 330i, 330xi
2006 - 2007 BMW 525i, 525 xi, 530i, 530 xi
2006 - 2008 BMW z4
2007 - 2008 BMW 328xi, x5 2.0si
2007 - 2012 BMW 128i, 328i
2008 BMW 528 xi
2009 - 2019 BMW 528i xDrive, x5 xDrive30i
2009 - 2011 BMW Z4 sDrive30i
2009 - 2012 BMW 328i xDrive
2007 - 2015 Cayenne 4.8L V8 (S, GTS, Turbo and Turbo S ignition coil)
2010 Panamera 3.6 6cyl ignition coil
2009 - 2013 Panamera 4.8L V8 (S, GTS, Turbo) ignition coil
Pierburg CWA200 water pump
Many applications not listed

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 2.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 14

This product contains the following items:
	» 20 x Labor $0.25/minute Part # LABR-00001
	» 4 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 4 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 4 x Kostal 2.8mm SLK Female Terminal 0.75-1.0mm2 (18-16 AWG) Part # CONN-11581
	» 1 x 4 Way Connector Plug for BMW, Volvo, VW, Porsche Coils, Devices, and Sensors Part # CONN-100963
