Home » Shop » Coil Connectors » 3 way Honda Pencil Coil ( COP ) Connector kit

3 way Honda Pencil Coil ( COP ) Connector kit	Part # CONN-75784

Pricing
1 +	$8.29
5 +	$7.99
25 +	$7.49
50 +	$6.49
100 +	$5.99
Information
Bmotorsports Part #	CONN-75784
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

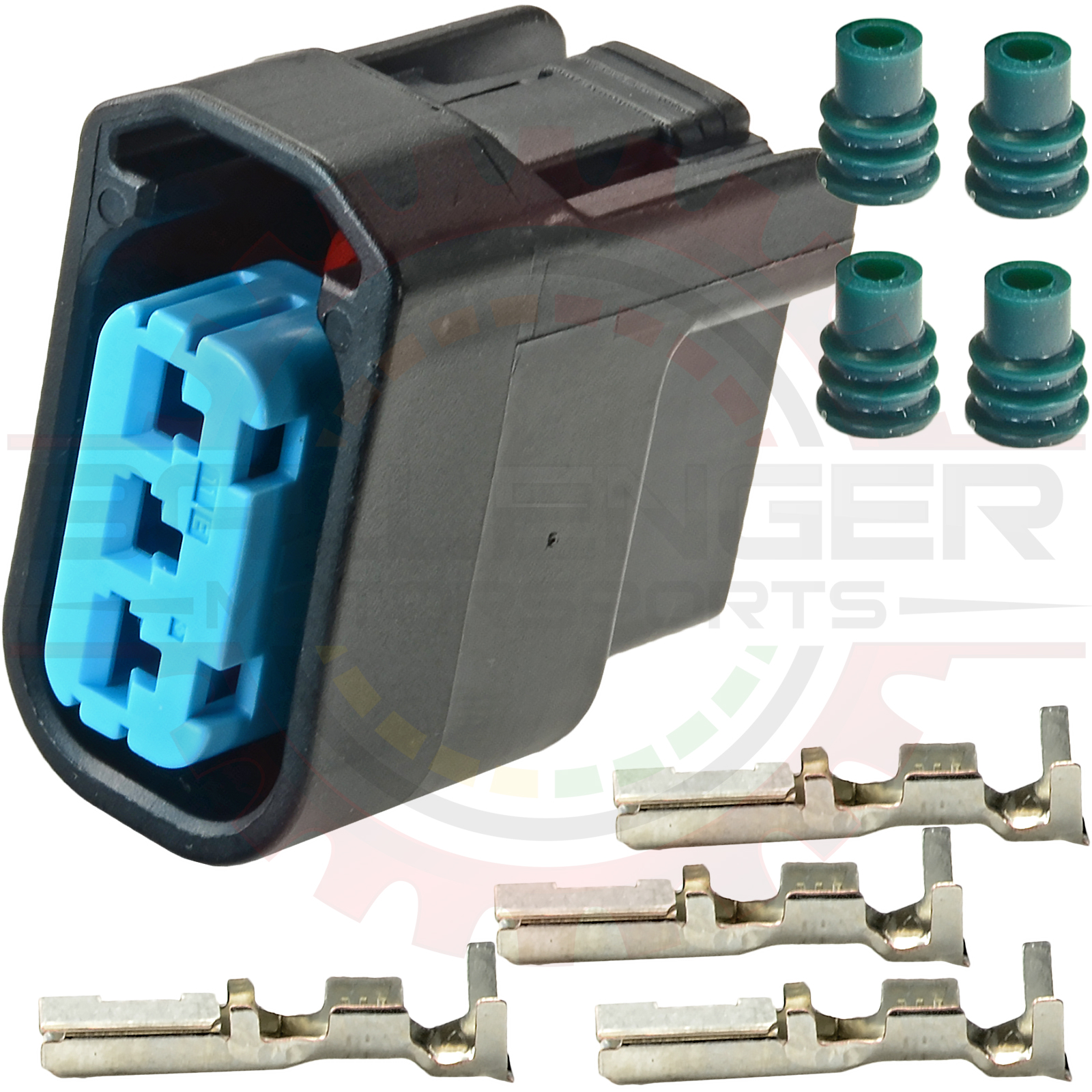

3 way Honda Pencil Coil ( COP ) Connector kit : includes connector, front lock, terminals and seals.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Assembly Only	CONN-100327	3 way Honda Pencil Coil ( COP ) Connector Assembly
Terminals	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-75784	3 way Honda Pencil Coil ( COP ) Connector kit
Connector Pigtail	CONN-85784	3 way Honda Pencil Coil ( COP ) Connector pigtail

Applications:

Honda S2000
Many Honda & Acura applications not yet listed

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

This product contains the following items:
	» 4 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 4 x Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece Part # CONN-100452
	» 1 x 3 way Honda Pencil Coil ( COP ) Connector only Part # CONN-100075
	» 1 x 3 way Honda Pencil Coil ( COP ) Front lock Part # CONN-100593
