4 Way MX 150 Connector Kit for GM Ignition Coils, Index Keyway	Part # CONN-76280

Pricing
1 +	$6.99
5 +	$6.85
25 +	$6.69
50 +	$6.45
100 +	$6.19
1000 +	$5.75
Information
Bmotorsports Part #	CONN-76280
Availability	In Stock
Shipping Weight	0.009 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

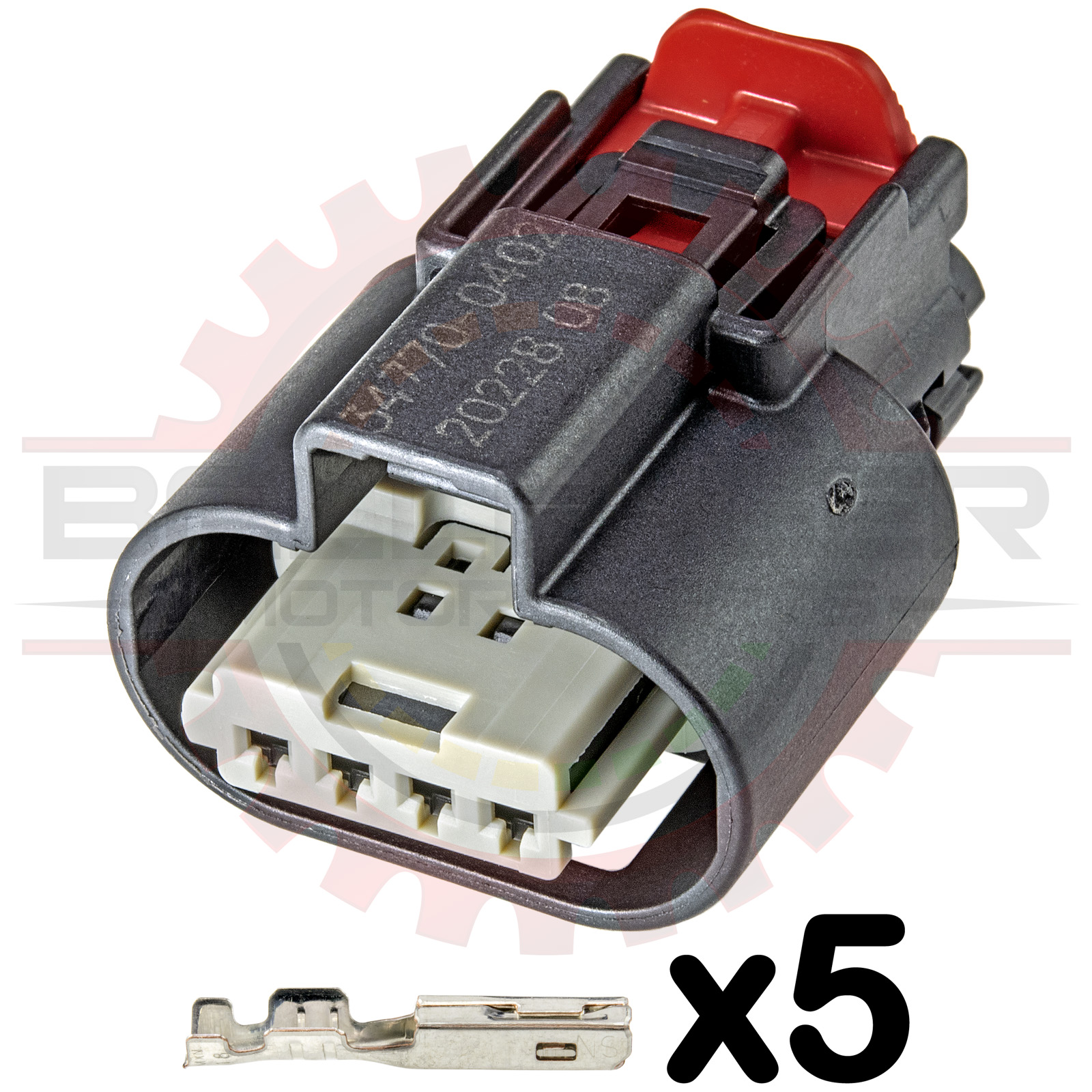

4 Way MX 150 Connector Kit for GM Ignition Coils, Index Keyway. Connector Kit. Terminals are included.

This is a shrouded, Molex style ignition coil connector used for many smart ignition coils on newer GM applications where they have migrated from the Delphi brand. This will not fit some D585 LS1 truck coils without some modification. A shrouded connector gives higher ingress protection ratings against pressurized fluid streams.

Applications:

MANY GM, MSD, Accel and other coils
GM Service Connector 19301722

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-101317	4 Way MX 150 Connector for GM Ignition Coils, Index Keyway
Terminals	CONN-100908	1.5 Female Terminal for 8 Way Dodge Oxygen Sensor Plug Connector, 20-18AWG (0.5 - 0.75mm2)
Connector Kit	CONN-76280	4 Way MX 150 Connector Kit for GM Ignition Coils, Index Keyway
Connector Pigtail	CONN-86280	4 Way MX 150 Connector Pigtail for GM Ignition Coils, Index Keyway
Crimp die	TOOL-00935	Production Quality One-Step Crimp Die ( Crimps Copper & Seal in one cycle ) for Molex MX150 Male and Female Terminals
Crimp handles	TOOL-00899	Production Quality One-Step Crimp handles ( Crimps Copper & Seal or Insulation in one cycle ) for use with production quality dies
Factory Molex Crimp Tool	TOOL-01011	Molex Crimp Tool for Allison Terminals
Mating Parts
Connector Only	CONN-100727	4 Way Connector Receptacle for Coils & Sensor Applications
Terminals	CONN-100730	Pull to seat Male Terminal for 150.2 & GT 150 3.5mm receptacles in 3,4,5,6 way
Connector Kit	CONN-75861	4 Way Connector Receptacle Kit for Coils & Sensor Applications
Connector Pigtail	CONN-85861	4 Way Connector Receptacle Pigtail for Coils & Sensor Applications

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 18

This product contains the following items:
	» 5 x 1.5 Female Terminal for 8 Way Dodge Oxygen Sensor Plug Connector, 20-18AWG (0.5 - 0.75mm2) Part # CONN-100908
	» 1 x 4 Way MX 150 Connector for GM Ignition Coils, Index Keyway Part # CONN-101317
