AiM MXS 1.2 Strada Dash	Part # SNSR-06020

Pricing
1 +	$1,299.00
Information
Bmotorsports Part #	SNSR-06020
Availability	Special Order
Shipping Weight	3.2 Lbs.
Shipping Location	VA (Shipping Info)
Options
MXS Strada
	Quantity:

Description

AiM MXG Dash Logger

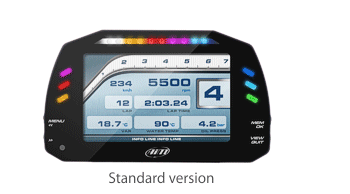

MXS Strada, the compact TFT dash for road use

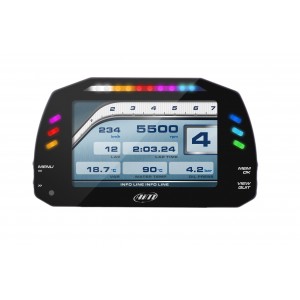

MXS Strada is the evolution of MXL Strada, one of the most widely-spread dashes on tracks and streets all over the world.

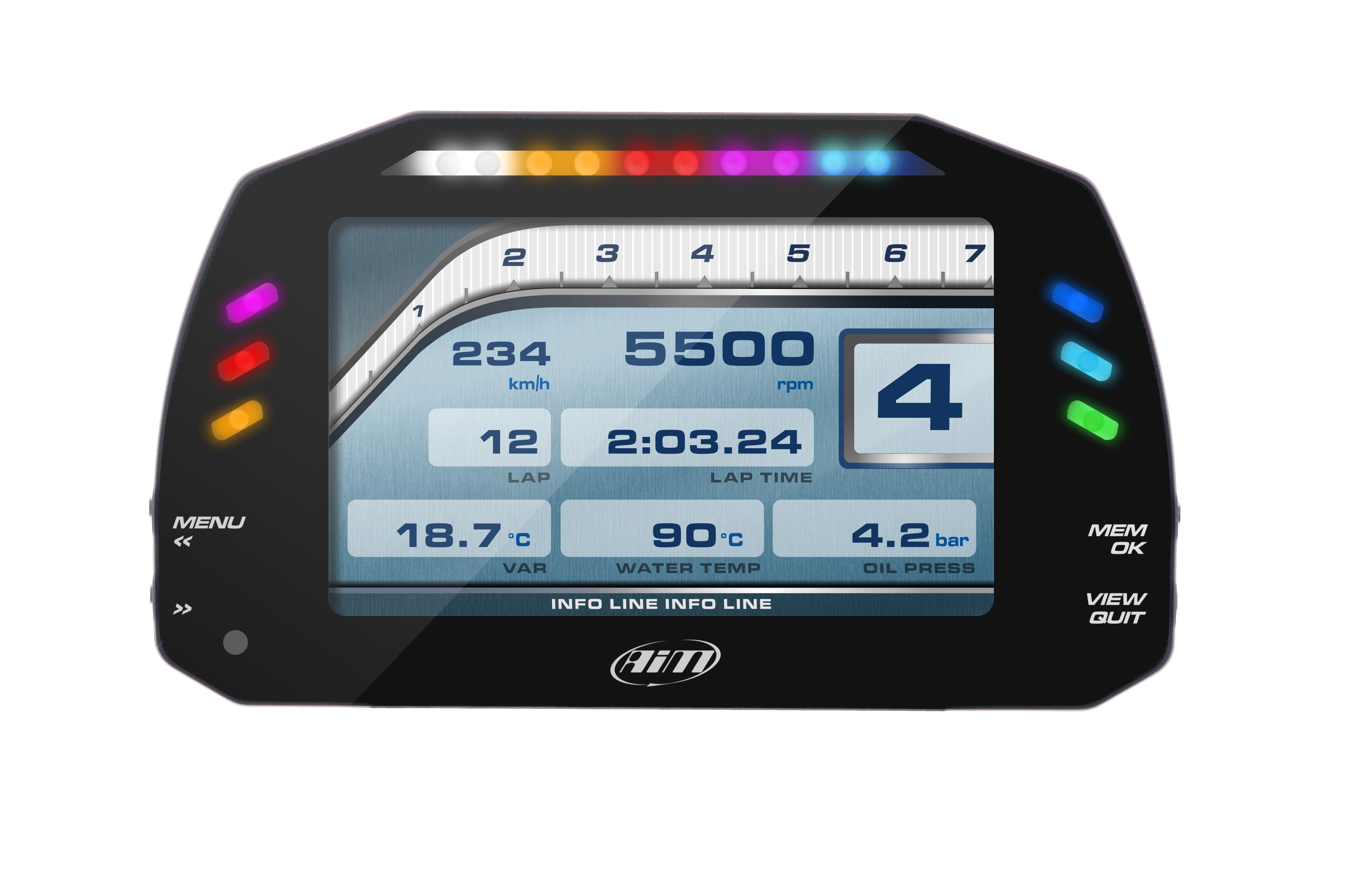

MXS Strada is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS Module.
Its data sampling capability can also be incremented adding up to eight expansion modules.

ECU
connection

Analog/digital
inputs

Math
channels

Second
CAN

High contrast tft display

MXS Strada is a high contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the best brightness levels.

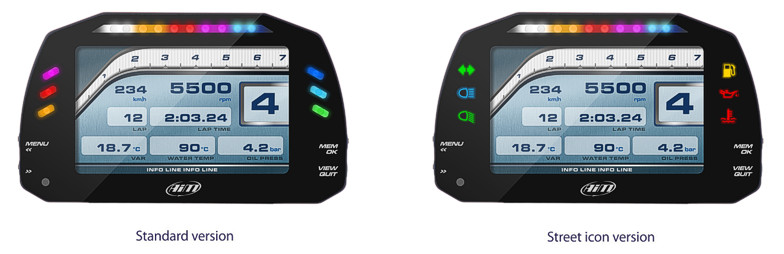

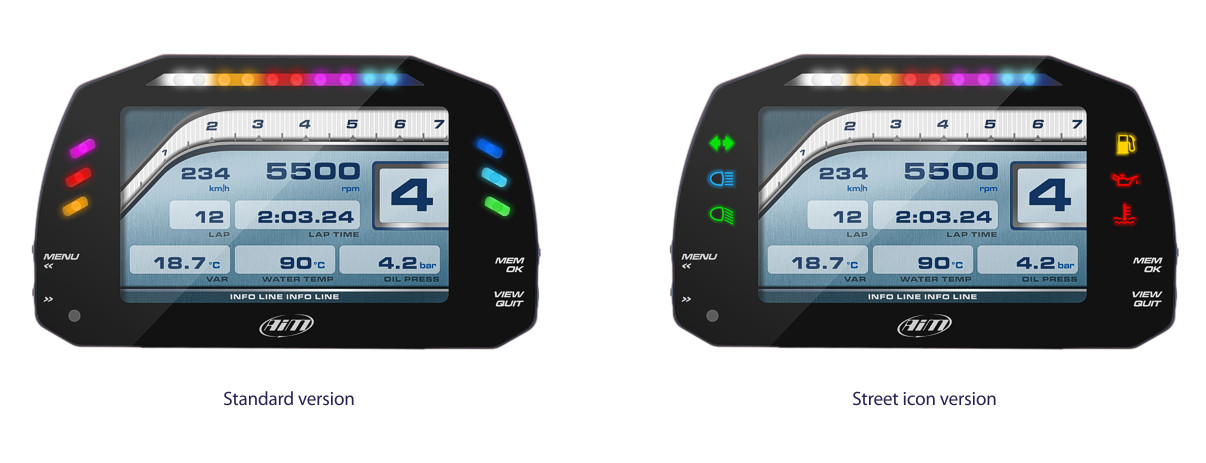

The dash is of course available also in the "Street Icons" version (fuel, oil, water temp., etc.).

Watch your data in pre-configured pages

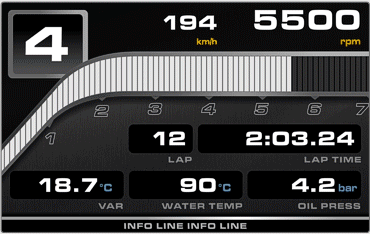

MXS Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, laptimes and much more...
You can choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the pushbuttons.

Flexible shift lights and alarms

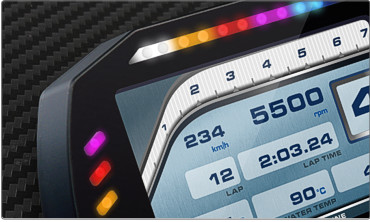

The ten multicolored RGB shift lights can be customized to your liking, defining the RPM threshold for each single gear.
The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information.
You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities.

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

MXS Strada features a 1 amp digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU.
This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

More info

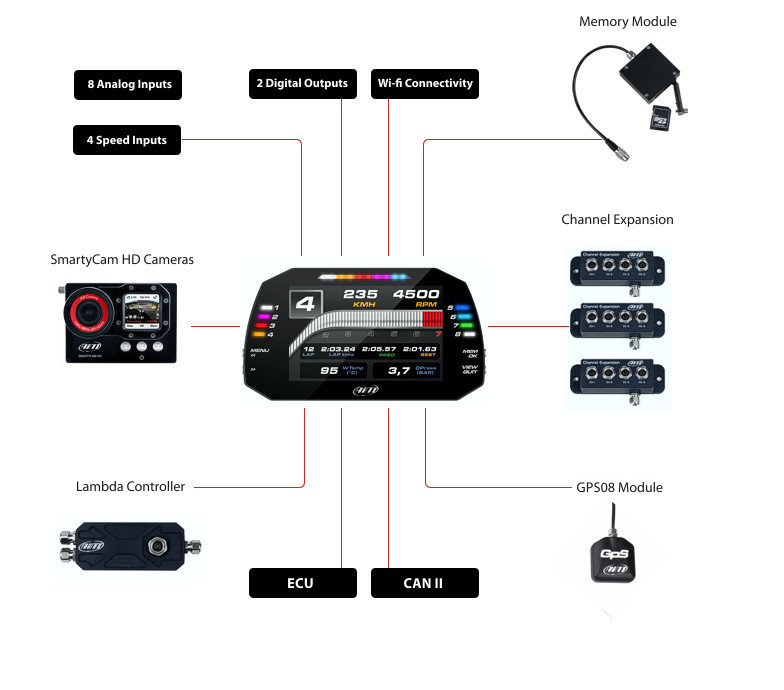

Using the built-in CAN bus you can add expansion modules to visualize additional info:

GPS08 Module
Thanks to GPS08 Module and Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion
It permits to add 4 0-5Volt analog channels.

TC Hub
It adds 4 K thermocouples.

LCU-One Lambda Controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

Connection
example

Race Studio 3 configuration

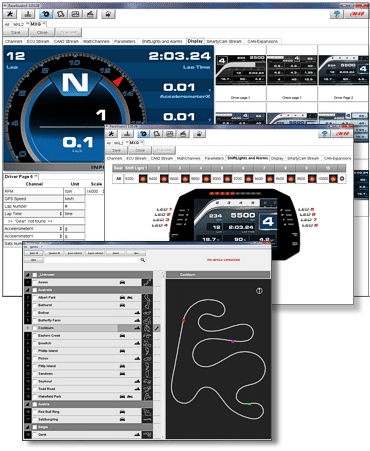

MXS Strada is to be configured via Race Studio3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.

Race Studio 3

Specifications

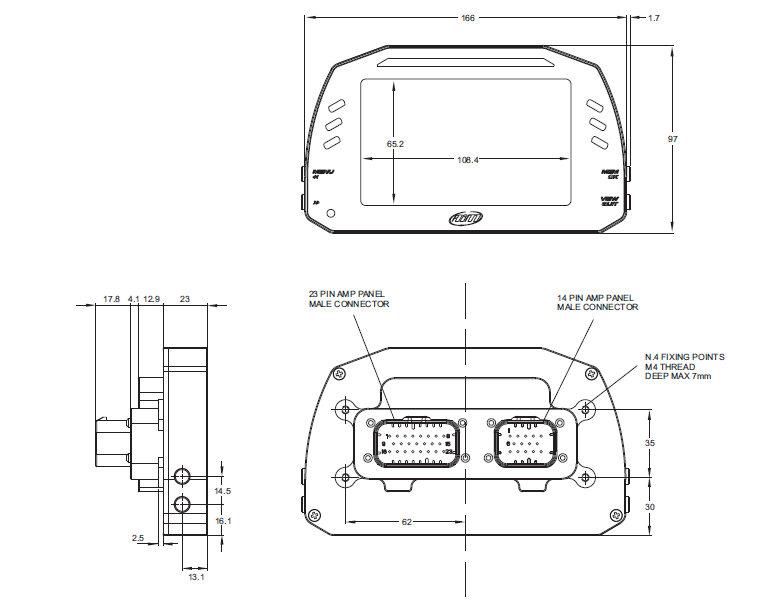

Disegno tecnico MXS

Technical specifications

Display 5” TFT

Resolution 800x480 pixels

Contrast 600:1

Brightness 700cd/m2 - 1,100 Lumen

Ambient light sensor Yes

Alarms LEDs 6 RGB freely configurable

Shift light 10 integrated freely configurable RGB LEDs

CAN connections 2

ECU connections CAN, RS232 or K-Line

ECU compatibility + 1,000 industry leading ECUs

Expansion CAN connection GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD

Analog inputs 4 fully configurable, max 1,000 Hz each

Digital inputs 1 speed input, lap signal, coil RPM input

Digital outputs 1 (1 Amp max)

Second CAN Yes

Body Anodized Aluminum

Pushbuttons Metallic

Connectors 2 AMP connectors

Dimensions 169.4x97x23 mm

Weight 480 g

Power consumption 400 mA

Waterproof IP65

MXS Strada

USB cable

14 pin standard wiring

23 pin connector + contacts

Race Studio 3
