Overview

AEM’s 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.

EASY, AFFORDABLE WAY TO ADD CHANNELS TO CD CARBON DASHES!

Carbureted Vehicles - The 6 Channel CAN Sensor Module provides the basic channels that users need to get data onto a CD Carbon Digital Dash in a carbureted vehicle, including tachometer, fuel level, and pressure/temp sensors. Vehicle speed can be achieved by using a GPS-enabled dash or by adding a Vehicle Dynamics Module.

08-Up Stock/Reflashed ECUs – This module is the perfect add-on for CD Carbon Dash owners who are sending channels to a CD Carbon Dash from an OBDII CAN stock ECU and want to add additional channels that are not available through the factory CAN stream.

Standalone CAN-based EFI – Racers who are using a non-AEM CAN-based programmable ECU and have consumed all of the inputs can use this module to add additional channels to the dash that they want to see or log (logging requires CD Carbon Logging Dash).

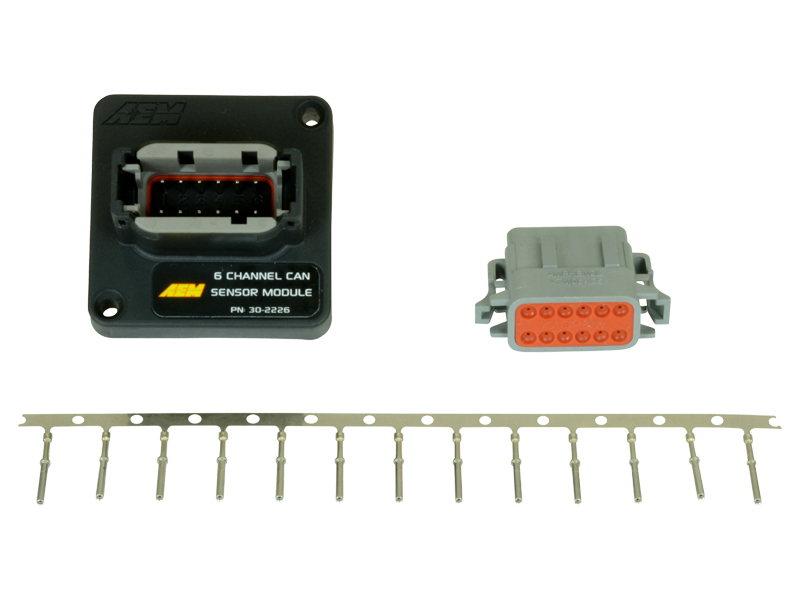

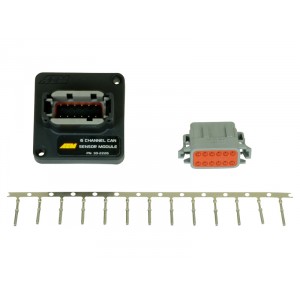

WHAT YOU GET The 6 Channel CAN Sensor Module includes two 0-5v analog inputs, two temp inputs, RPM input, and fuel level input. The enclosure is IP67-rated and the unit is dustproof/water-resistant. A 12-Pin DTM-style connector and pins are included. Please see the Features tab for more info.

Associated & Mating Parts

Features

6 Channel Sensor expansion features:

• Two (2) temperature (thermistor) inputs
• Two (2) dedicated 0-5V analog inputs
• One (1) dedicated fuel level input (0 to 250 Ohm range)
• One (1) tachometer/coil input
• Fixed CAN bus speed, header length, and base address
• IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
• Protected inputs
