Description

EVO4S is the new AiM Logger and this product combination pairs the EVO4S with a GS-Dash for an inexpensive, powerful logging combination complete with GPS, onboard logging and lots of expansion options . It is so good, we use this product specifically on our own track cars and generally recommend this product for anyone looking for a solid logging option. With so many expansion options, you can always add more memory, speed sensors, onboard video logging, additional inputs and much more.

Complete: with 5 fully configurable analog channels, integrated GPS module and tri-axial accelerometer, EVO4S gives the driver all key information for best vehicle tuning and driving technique improvement. EVO4S provides all information coming from sensors together with data deriving from Engine Control Units (ECU’s), as well as two wheel speeds.

Modular: CAN output connects EVO4S to all AIM products: from simple dashes to Formula steering wheel, from additional devices (like TC Hub, the thermocouples multiplier, and Channel Expansion, the channels multiplier) to LCU-ONE lambda controller.
Moreover EVO4S can be connected to MemoryKey for easy and immediate data download and transfer to Pc.

Compact: thanks to its small dimensions (105x40x33 mm) EVO4S fits car as well as bike installations.

High-value-for-money: in spite of its winning characteristics, EVO4S has a very competitive price: all this leads to an incomparable price/quality ratio among all data loggers currently available on the market.

ECU interface: An extremely friendly installing system (Easy Connection Technology) allows EVO4S to easily connect to a wide number of the most popular ECU's in the racing world. Simply choose your ECU in our wide configuration database: with a CAN or RS232 connection all values coming from your engine are sampled and no further sensor installation is needed.

EVO4S is supplied with Race Studio 3 software, the powerful tool for configuration and analysis that allows the user to customize the logger according to its needs and to display all data on a Pc in tables, graphs, histograms, etc.

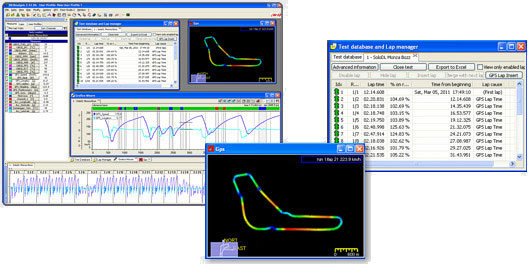

Data Analysis Plot your Solo data over time or distance, xy plots, track position, create histograms and more. Overlay any number of laps from the same test of different tests. Correlate your data to track position.

Track Mapping & Driving Line Analysis Every lap you drive is mapped with great precision, which not only allows you to correlate data to track position, but also overlay maps to analyze driving lines. Know exactly where you are gaining or losing time.

Split Times One of the most useful tools for analyzing driver performance and consistency is to break up the track into several sections and analyze sector timing and standard deviation within a test session. The Solo puts that powerful tool one click away on your PC. The track is automatically split up into straights and corners and a table provided with sector times for each and every lap. It also strings together your "theoretical best" lap, combining all your best sectors.

No Beacon GPS lap timing means not having to place a beacon trackside for lap times. It also means there’s no beacon to forget. There’s twenty-four lap timing satellites orbiting the earth - always on, and no batteries to replace.

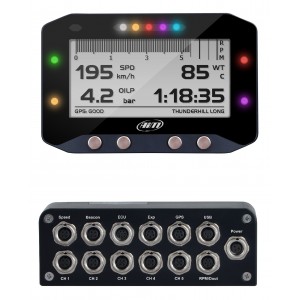

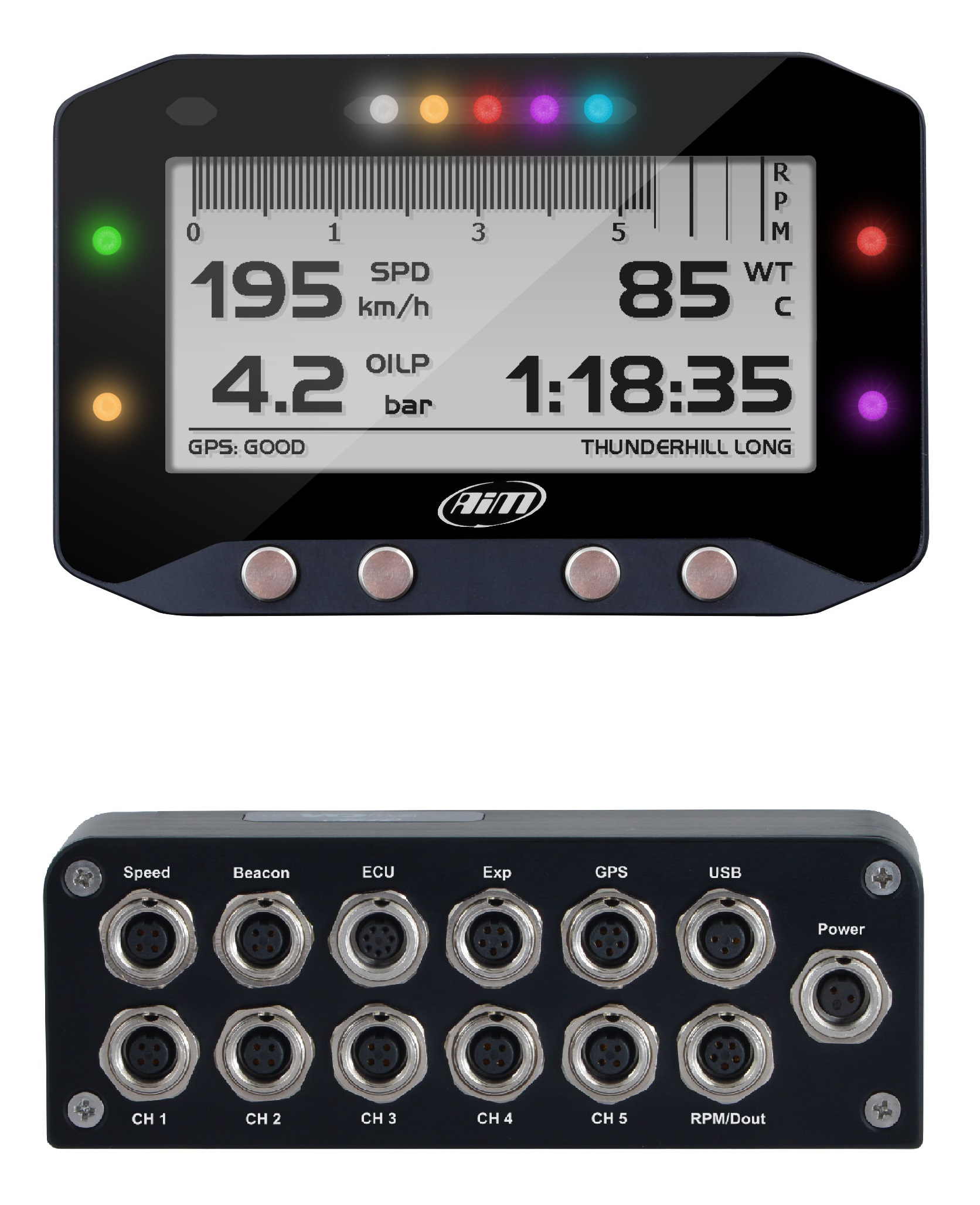

GS-Dash is the digital dash that allows you to customize your vehicle, acquire, visualize and analyze data to develop your personal and winning driving strategy.

With GS-Dash, you will have everything under control in a glance. RPM, current speed, engaged gear, temperatures, oil pressure, lap time and all signals coming from your custom sensors would be merged with those coming from the vehicle's ECU.

Technical Specifications

• Dash: System dimensions: 124 x 92 x 30 mm
• Dash: Display dimensions: 85 x 50 mm with backlight
• Dash: Rugged and light-weight chassis
• Dash: Waterproof IP65
• EVO4S: 5 fully configurable analog channels
• EVO4S: 2 speed channels
• EVO4S: 1 digital RPM channel
• EVO4S: 1 tri-axial internal accelerometer
• EVO4S: Integrated GPS module
• EVO4S: Laptime (magnetic/optical lap and GPS lap)
• EVO4S: CAN protocol for external expansion modules
• EVO4S: ECU Interface-CAN, RS232 or K-Line
• EVO4S: Internal Memory: 4 GB
• EVO4S: External power: 9-15 V
• EVO4S: System dimensions: 130 x 35 x 46.6 mm
• EVO4S: Weight: 330 g
• EVO4S: Waterproof IP65

• EVO4S
• GS-Dash
• GPS antenna
