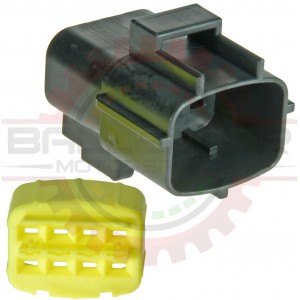

8 Way Econoseal J Series Mark II+ Receptacle Housing Connector Assembly (connector and lockplate)	Part # CONN-100064

Pricing
1 +	$6.99
5 +	$6.75
25 +	$6.49
50 +	$5.99
250 +	$3.99
Information
Bmotorsports Part #	CONN-100064
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

8 Way Econoseal J Series Mark II+ Receptacle Housing Connector Assembly (connector and lockplate)

Associated & Mating Parts

Relationship	Part #	Description
Terminals	CONN-100005	Econoseal J Series Male Terminals, 0.5mm2 - 1.4mm2 ( 20 - 16 AWG )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug	CONN-00130	Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Kit	CONN-75674	8 Way Econoseal J Series Mark II+ Receptacle Housing Kit
Connector Pigtail	CONN-85674	8 Way Econoseal J Series Mark II+ Receptacle Housing Pigtail

Specifications

Parameter Value
Number of Ways 8
Gender Receptacle/Female
Terminal Size 1.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 1 x 8 Way Econoseal J Series Mark II+ Receptacle Housing Connector Part # CONN-100034
	» 1 x Lockplate / TPA 8 Way Econoseal J Series Mark II+ Receptacle Housing Connector Part # CONN-100035
