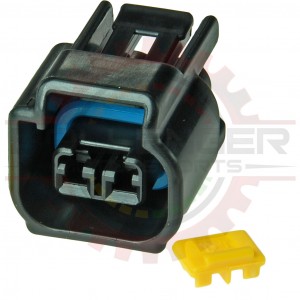

Coil on Plug ( COP ) harness side connector assembly ( 2 way plug ) (connector and TPA)	Part # CONN-100080

Pricing
1 +	$6.99
25 +	$6.49
50 +	$5.49
100 +	$3.99
Information
Bmotorsports Part #	CONN-100080
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Coil on Plug ( COP ) harness side connector assembly ( 2 way plug ) (connector and TPA)

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Terminals	CONN-100171	Female Terminals for Coil on Plug harness side connector ( 2 way plug )
Seals	CONN-100173	Wire Seals for Coil on Plug connector, Light Blue ( 22 - 18AWG ) [ 0.35 - 0.8mm2 ]
Connector Only	CONN-100080	Coil on Plug ( COP ) harness side connector assembly ( 2 way plug ) (connector and TPA)
Connector Kit	CONN-75696	Coil on Plug ( COP ) harness side connector kit ( 2 way plug )
Connector Pigtail	CONN-85696	Coil on Plug ( COP ) harness side connector Pigtail ( 2 way plug )
Mating Connectors
Terminals	CONN-100168	Male Terminals for Coil on Plug Coil side connector ( 2 way receptacle )
Seals	CONN-100173	Wire Seals for Coil on Plug connector, Light Blue ( 22 - 18AWG ) [ 0.35 - 0.8mm2 ]
Connector Only	CONN-100079	Coil on Plug ( COP ) Coil side connector assembly ( 2 way receptacle ) (connector and TPA)
Connector Kit	CONN-75695	Coil on Plug ( COP ) Coil side connector Kit ( 2 way receptacle )
Connector Pigtail	CONN-85695	Coil on Plug ( COP ) Coil side connector Pigtail ( 2 way receptacle )
Pair Kit
Connector Pair	CONN-200004	2 Way Furukawa RFW Connector Pair Kit

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications

Applications:

Denso Ignition Coil on Plug
Suzuki Motorcycle Coil on Plug
Yamaha Motorcycle Coil on Plug
Honda Motorcycle Coil on Plug
Seadoo 4tec Coil on Plug
MSD Ignition Coil on Plug
Motorcraft Coil on Plug
Ford Ignition Coil on Plug
Ford Crankshaft Sensor Connector

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start Year End Make Model Trim Engine Code

2000 2001 Honda CBR929RR

2000 2001 Honda CBR954RR

2006 2007 Suzuki GSX-R

2006 2007 Suzuki GSX-R

This product contains the following items:
	» 1 x Coil on Plug ( COP ) Coil side connector ( 2 way plug) Part # CONN-100183
	» 1 x TPA for Coil on Plug ( COP ) Coil side connector ( 2 way plug) Part # CONN-100184
