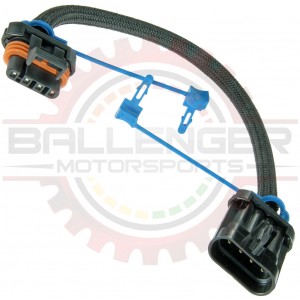

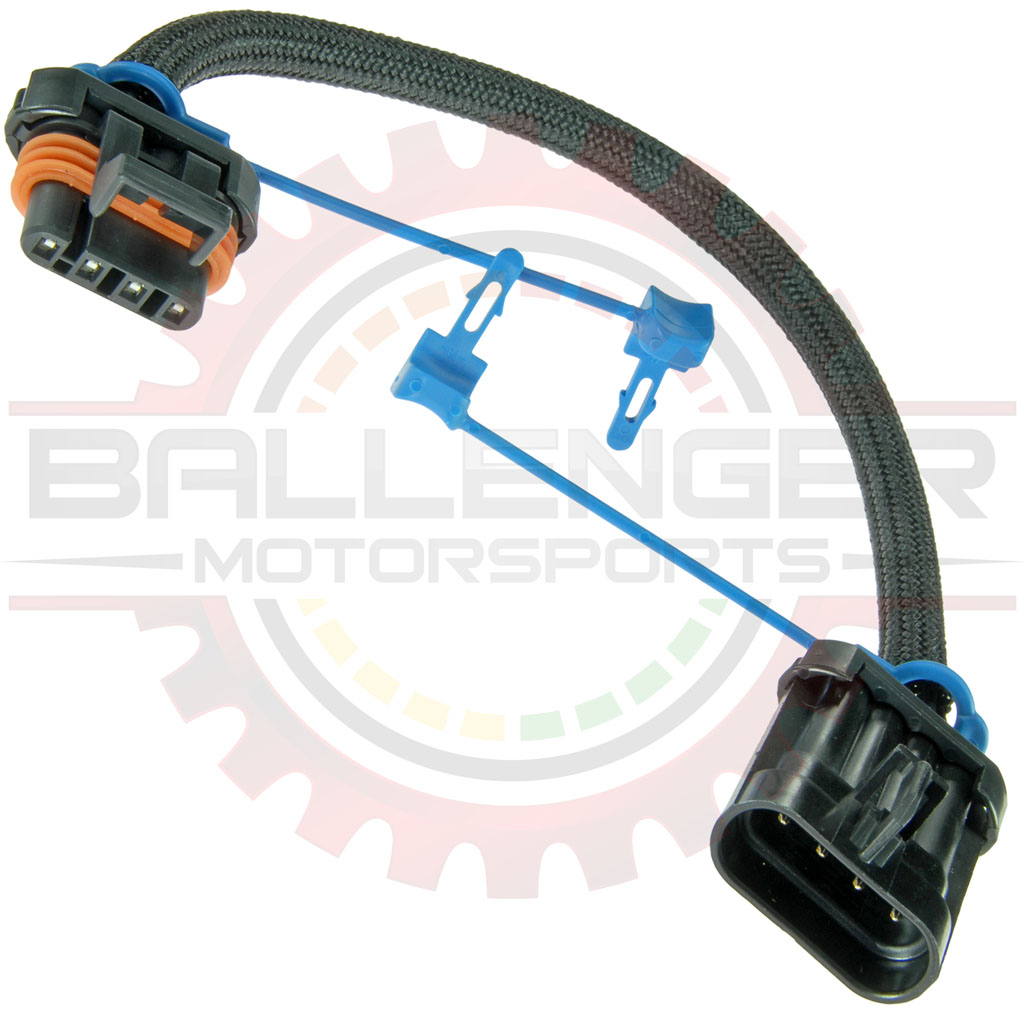

O2 extender / coilpack extender Part # CONN-85707
O2 extender / coilpack extender O2 extender / coilpack extender O2 extender / coilpack extender
Pricing
1 + $16.99
5 + $16.49
10 + $15.99
25 + $15.49
50 + $14.99
100 + $14.49
250 + $13.49
Information
Bmotorsports Part # CONN-85707
Availability In Stock
Shipping Weight 0.1 Lbs.
Shipping Location VA   (Shipping Info)
Options
Length
Ship Estimator Quantity:

Description

O2 extender / coilpack extender


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-02099LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug assembly
Seal CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Terminal CONN-56256GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Connector Kit CONN-75601LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug kit
Connector Pigtail CONN-85601LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug Pigtail
Associated Parts
Connector Only CONN-02098GM Delphi / Packard - 4 way metripack 150 female connector assembly, black ( Connector + TPA )
Terminal CONN-56260GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seal CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
16AWG Seal CONN-56058GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Connector Kit CONN-75597GM Delphi / Packard - 4 way metripack 150 female connector assembly Kit, black
Connector Pigtail CONN-85597LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Receptacle Pigtail
Cavity Plug CONN-56059GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Extension
Extension CONN-85707O2 extender / coilpack extender

Specifications

Parameter Value
Number of Ways4
Terminal Size1.5mm
Min. Wire Gauge20
Max. Wire Gauge16

This product contains the following items:
Labor $0.25/minute» 30 x Labor $0.25/minute
Part # LABR-00001
GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Part # CONN-56256
GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Part # CONN-56260
GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white» 8 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Part # CONN-56057
GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 150 connectors» 1 x GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 150 connectors
Part # CONN-02059
3/8 in. Diameter x 4ft. Black 3:1 Adhesive Lined Polyolefin Heat Shrink Tubing, 110 C» 1 x 3/8 in. Diameter x 4ft. Black 3:1 Adhesive Lined Polyolefin Heat Shrink Tubing, 110 C
Part # WIRE-56258
18AWG Automotive Teflon Mil-Spec Wire Black» 4 x 18AWG Automotive Teflon Mil-Spec Wire Black
Part # WIRE-00489s
Insultherm Hi-Temp braided sleeving - 1/4 inch» 1 x Insultherm Hi-Temp braided sleeving - 1/4 inch
Part # WIRE-63555
GM Delphi / Packard - TPA for 4 way flat metripack 150 connector» 2 x GM Delphi / Packard - TPA for 4 way flat metripack 150 connector
Part # CONN-02097
GM Delphi / Packard - 4 way metripack 150 male connector» 1 x GM Delphi / Packard - 4 way metripack 150 male connector
Part # CONN-02096
GM Delphi / Packard - 4 way metripack 150 female connector, black» 1 x GM Delphi / Packard - 4 way metripack 150 female connector, black
Part # CONN-02095
