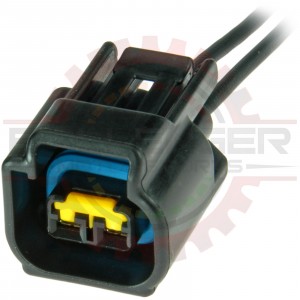

Coil on Plug ( COP ) harness side connector Pigtail ( 2 way plug ) Part # CONN-85696
Coil on Plug ( COP ) harness side connector Pigtail ( 2 way plug ) Coil on Plug ( COP ) harness side connector Pigtail ( 2 way plug ) Coil on Plug ( COP ) harness side connector Pigtail ( 2 way plug )
Pricing
1 + $10.49
5 + $9.99
25 + $9.49
100 + $8.49
Information
Bmotorsports Part # CONN-85696
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Coil on Plug ( COP ) harness side connector pigtail ( 2 way plug )


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Terminals CONN-100171Female Terminals for Coil on Plug harness side connector ( 2 way plug )
Seals CONN-100173Wire Seals for Coil on Plug connector, Light Blue ( 22 - 18AWG ) [ 0.35 - 0.8mm2 ]
Connector Only CONN-100080Coil on Plug ( COP ) harness side connector assembly ( 2 way plug ) (connector and TPA)
Connector Kit CONN-75696Coil on Plug ( COP ) harness side connector kit ( 2 way plug )
Connector Pigtail CONN-85696Coil on Plug ( COP ) harness side connector Pigtail ( 2 way plug )
Mating Connectors
Terminals CONN-100168Male Terminals for Coil on Plug Coil side connector ( 2 way receptacle )
Seals CONN-100173Wire Seals for Coil on Plug connector, Light Blue ( 22 - 18AWG ) [ 0.35 - 0.8mm2 ]
Connector Only CONN-100079Coil on Plug ( COP ) Coil side connector assembly ( 2 way receptacle ) (connector and TPA)
Connector Kit CONN-75695Coil on Plug ( COP ) Coil side connector Kit ( 2 way receptacle )
Connector Pigtail CONN-85695Coil on Plug ( COP ) Coil side connector Pigtail ( 2 way receptacle )
Pair Kit
Connector Pair CONN-2000042 Way Furukawa RFW Connector Pair Kit

Specifications

Parameter Value
Number of Ways2
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge18


Applications

Applications:

  • Denso Ignition Coil on Plug
  • Suzuki Motorcycle Coil on Plug
  • Yamaha Motorcycle Coil on Plug
  • Honda Motorcycle Coil on Plug
  • Seadoo 4tec Coil on Plug
  • MSD Ignition Coil on Plug
  • Motorcraft Coil on Plug
  • Ford Ignition Coil on Plug
  • Ford Crankshaft Sensor Connector
Cross References:
  • Equivalent to ACDelco Pigtail PT2151 & GM Pigtail Part# 88861084
  • Equivalent to ACDelco Pigtail PT2155 & GM Pigtail Part# 88861089
  • Equivalent to Ford / Motorcraft Pigtail WPT-579, WPT579 & Ford Pigtail Part# 3U2Z-14S411-SMA
  • Equivalent to Ford / Motorcraft Pigtail WPT-759, WPT759 & Ford Pigtail Part# 3U2Z-14S411-SLA
  • Ford / Motorcraft Repair Pigtail WPT-986, WPT986 & Ford Pigtail Part# 3U2Z-14S411-SLB

This product contains the following items:
Labor $0.25/minute» 10 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 2 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Female Terminals for Coil on Plug harness side connector ( 2 way plug )» 2 x Female Terminals for Coil on Plug harness side connector ( 2 way plug )
Part # CONN-100171
Wire Seals for Coil on Plug connector, Light Blue ( 22 - 18AWG ) [ 0.35 - 0.8mm2 ]» 2 x Wire Seals for Coil on Plug connector, Light Blue ( 22 - 18AWG ) [ 0.35 - 0.8mm2 ]
Part # CONN-100173
Coil on Plug ( COP ) Coil side connector ( 2 way plug)» 1 x Coil on Plug ( COP ) Coil side connector ( 2 way plug)
Part # CONN-100183
TPA for Coil on Plug ( COP ) Coil side connector ( 2 way plug)» 1 x TPA for Coil on Plug ( COP ) Coil side connector ( 2 way plug)
Part # CONN-100184
