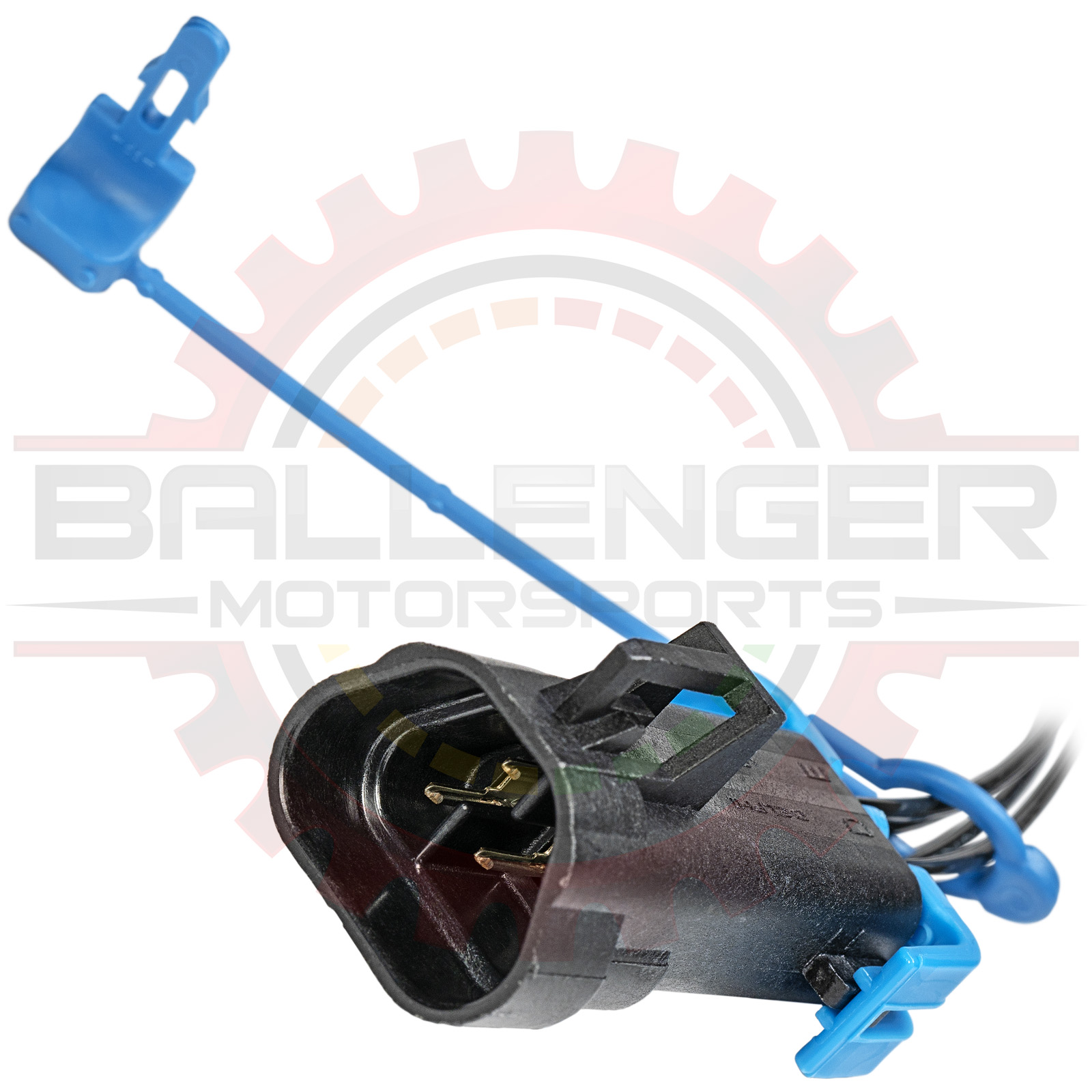

GM Delphi / Packard - Female Black 5pin (1 missing) O2 Sensor Connector Pigtail + CPA.	Part # CONN-85625

Pricing
1 +	$9.49
5 +	$9.25
25 +	$8.99
50 +	$8.75
100 +	$8.49
1000 +	$6.49
Information
Bmotorsports Part #	CONN-85625
Availability	In Stock
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

GM Delphi / Packard - Female Black 5pin (1 missing) O2 Sensor Connector Pigtail + CPA.

TPA = Terminal Position Assurance, prevents terminals from backing out of connector

CPA = Connector Position Assurance, prevents connectors from coming loose from one another. This is a special CPA made for this type of application, remember to put the "loop" part of this cpa around the wires to prevent the CPA from being lost when you are disconnecting or connecting the connectors from one another.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-56260	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
TPA Only	CONN-02055	GM Delphi / Packard - TPA for o2 sensor connectors 5 pins 1 missing
CPA Only	CONN-02059	GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 150 connectors
Connector Assembly	CONN-02061	GM Delphi / Packard - Black Female O2 sensor connector with 5 pins (1 blocked), assembly (Connector and TPA)
Connector Kit	CONN-75625	GM Delphi / Packard - Black Female O2 sensor connector kit with 5 pins (1 blocked) + TPA + CPA
Pigtail	CONN-85625	GM Delphi / Packard - Female Black 5pin (1 missing) O2 Sensor Connector Pigtail + CPA.
Mating Parts
Terminals	CONN-56256	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Seal	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
TPA	CONN-02055	GM Delphi / Packard - TPA for o2 sensor connectors 5 pins 1 missing
CPA	CONN-02059	GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 150 connectors
Connector Assembly	CONN-02062	GM Delphi / Packard - Black Male O2 sensor connector with 5 pins (1 blocked) connector assembly (connector and TPA)
Connector Kit	CONN-75626	GM Delphi / Packard - Black Male O2 sensor connector kit with 5 pins (1 blocked) + TPA + CPA
Pigtail	CONN-85626	GM Delphi / Packard - Black Male O2 sensor connector pigtail with 5 pins (1 blocked) + CPA
Extension
Extension	CONN-85654	GM Delphi / Packard - O2 extension Harness, black
Pair Kit
Connector Pair	CONN-200042	GM Delphi / Packard - Sealed 5-pin 1 missing Metripack 150 O2 connector pair, black

Specifications

Parameter Value
Number of Ways 4
Gender Receptacle/Female
Terminal Size 1.5mm
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge ) Part # CONN-56260
	» 4 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 1 x GM Delphi / Packard - TPA for o2 sensor connectors 5 pins 1 missing Part # CONN-02055
	» 1 x GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 150 connectors Part # CONN-02059
	» 4 x 18AWG Automotive Teflon Mil-Spec Wire Black Part # WIRE-00489s
	» 1 x GM Delphi / Packard - Black Female O2 sensor connector with 5 pins (1 blocked). Part # CONN-02056
